Knock Sensor: Service and Repair

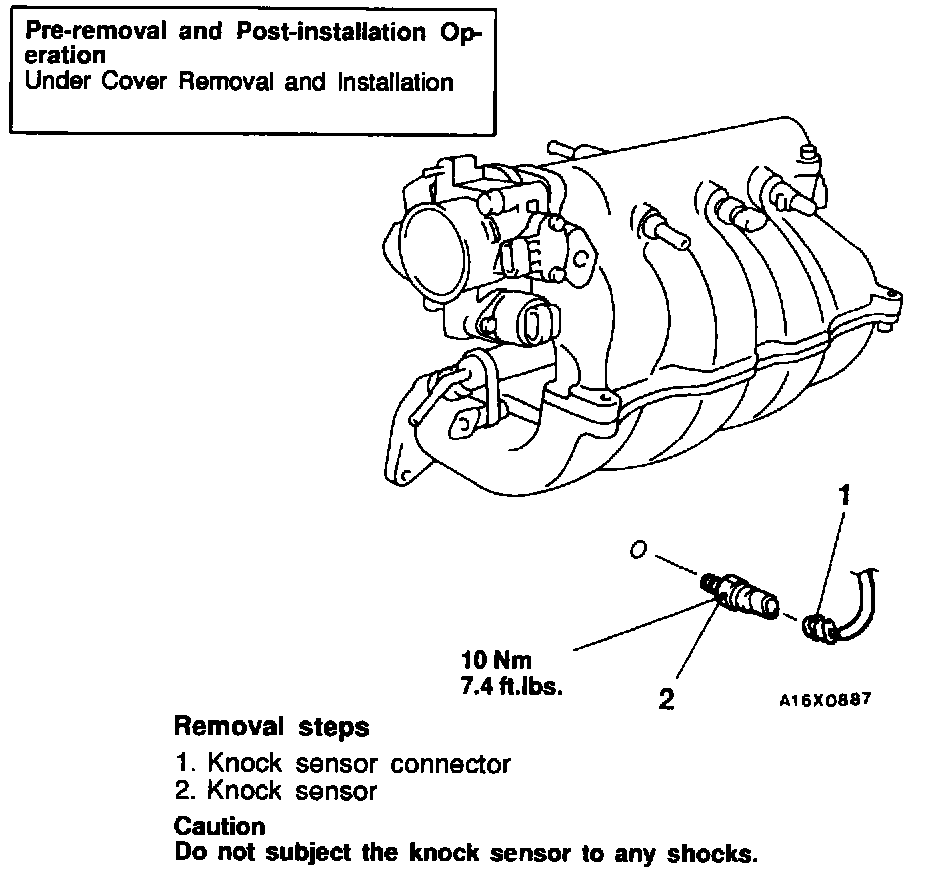

Knock Sensor - Removal And Installation:

Pre-Removal
- Under cover

REMOVE
1. Knock Sensor connector
2. Knock Sensor

INSTALL
1. Knock Sensor
2. Knock Sensor connector

Post-Installation
- Under cover

CAUTION: Do not subject the knock sensor to any shocks
