Inhibitor Switch

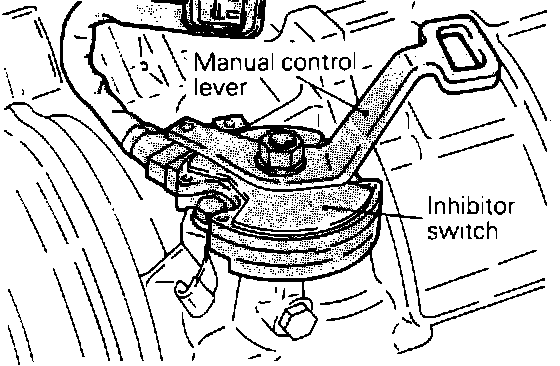

Inhibitor Switch:

1. Unplug the inhibitor switch from the wiring harness.
2. Remove the lock nut from the control shaft and pull the control lever from the inhibitor switch.
3. Remove the inhibitor mounting screws and pull the inhibitor switch from the control shaft.
4. Reverse procedure for installation.
