Home >> Mitsubishi >> 1992 >> Galant L4-2.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Locations >> Connector Locations

Connector Locations

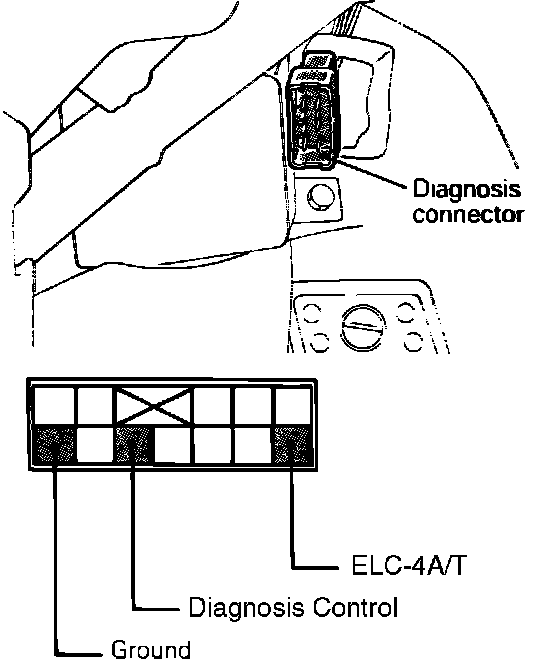

Diagnostic Connector Identification:





The transmission self diagnostic connector is located under the left side of the dash panel, near the steering column.
