Home >> Mitsubishi >> 1992 >> Galant L4-2.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Locations >> Component Locations

Component Locations

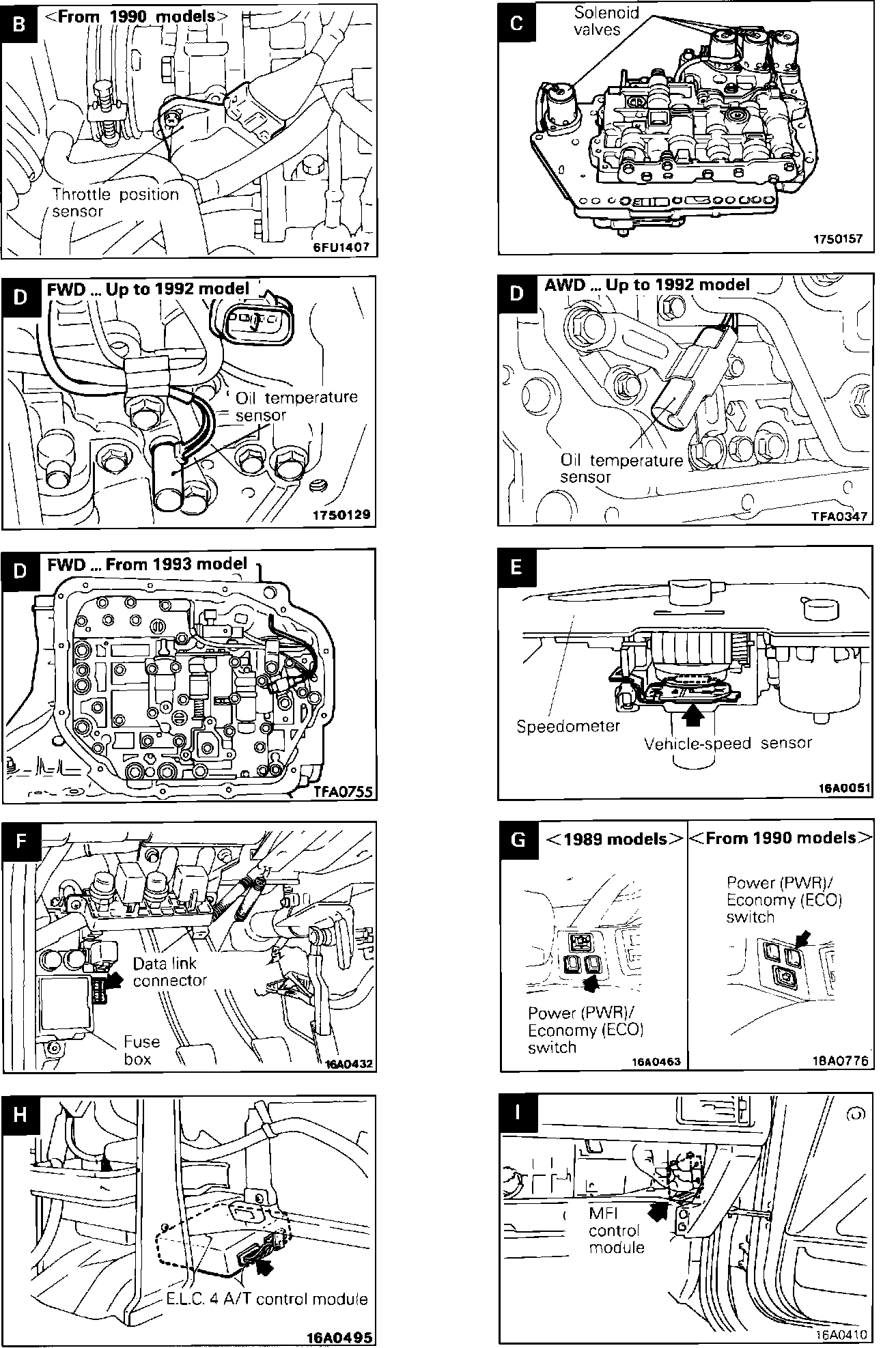

Automatic Transaxle (Electronically Controlled 4-Speed): Component Location:

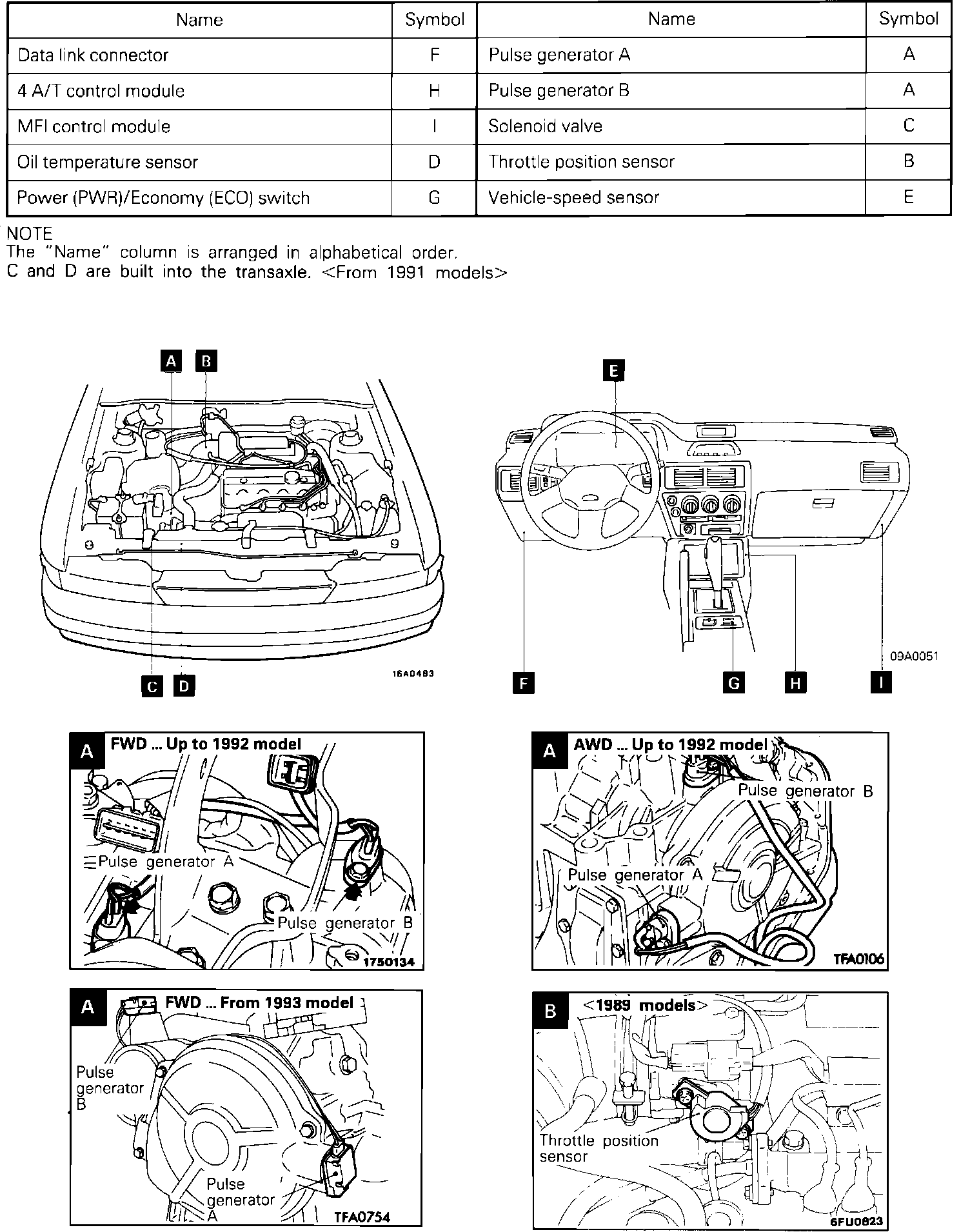

Automatic Transaxle (Electronically Controlled 4-Speed): Component Location:
