Distributor: Locations

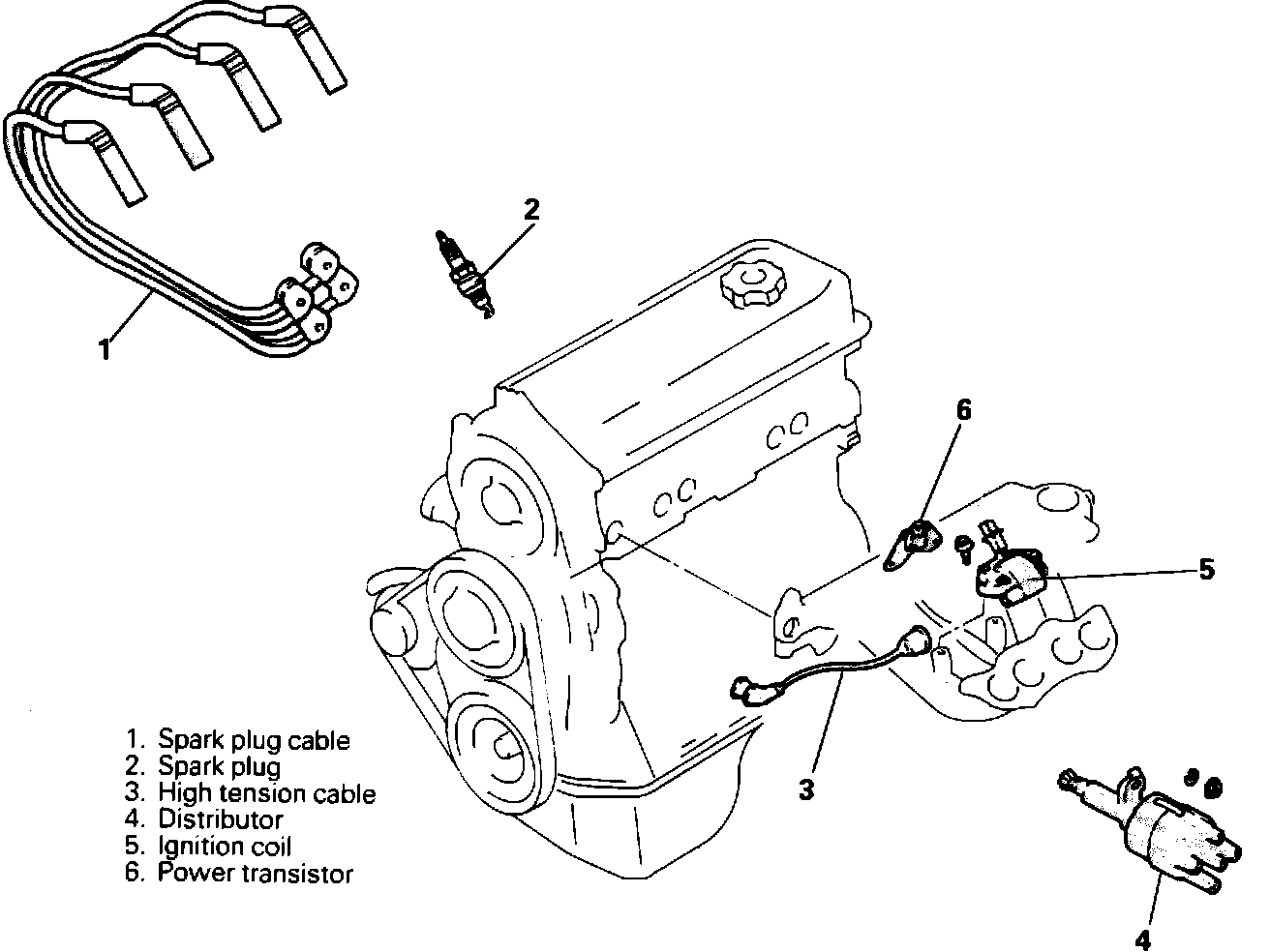

Component Overview:

Crankshaft Position/Camshaft (TDC) Sensor
Located inside distributor

Distributor
Located left side of cylinder head

Ignition Coil
Located left side of engine on intake manifold

Ignition Timing Connector
Located on left side of engine near master cylinder reservoir

Power Transistor
Located left side of engine on intake manifold near ignition coil

Spark Plugs
Located right side of cylinder head
