Home
>>
Mitsubishi
>>
1992
>>
Galant L4-2.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
Transmission Control Systems

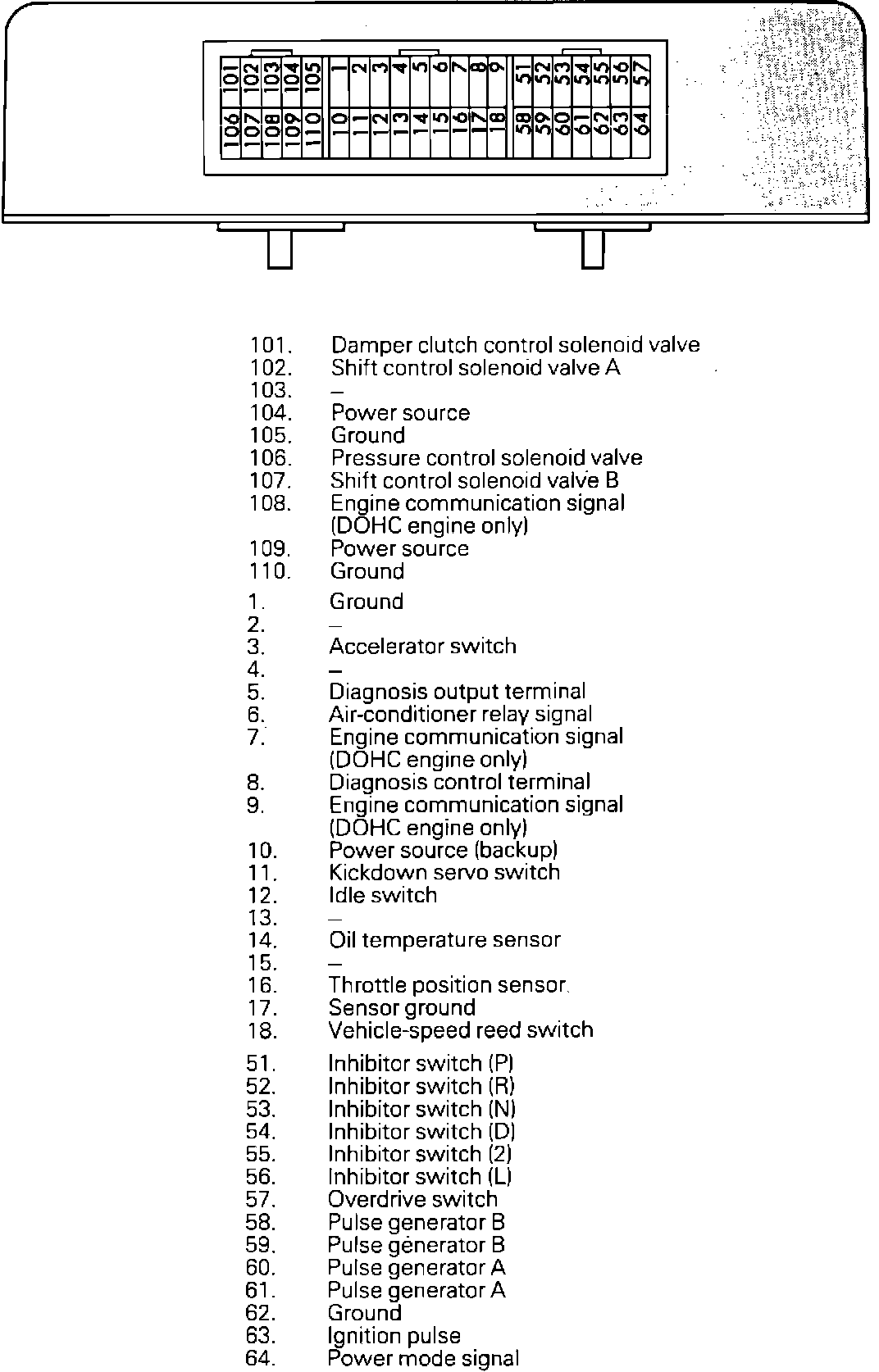

Transmission Control Unit Pin-out:
