NS-5: Testing Crank Angle Sensor Circuit

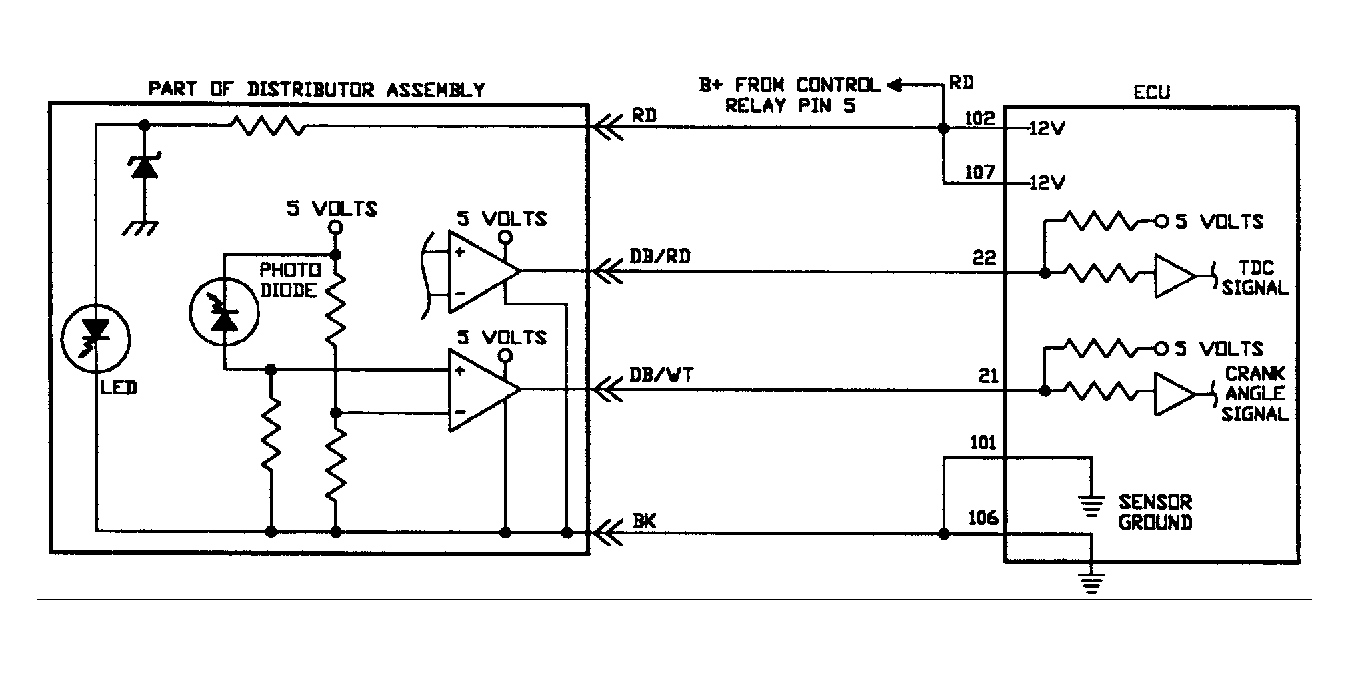

Fig 1: Circuit Diagram NS-5 (3.0L)
G90J20072

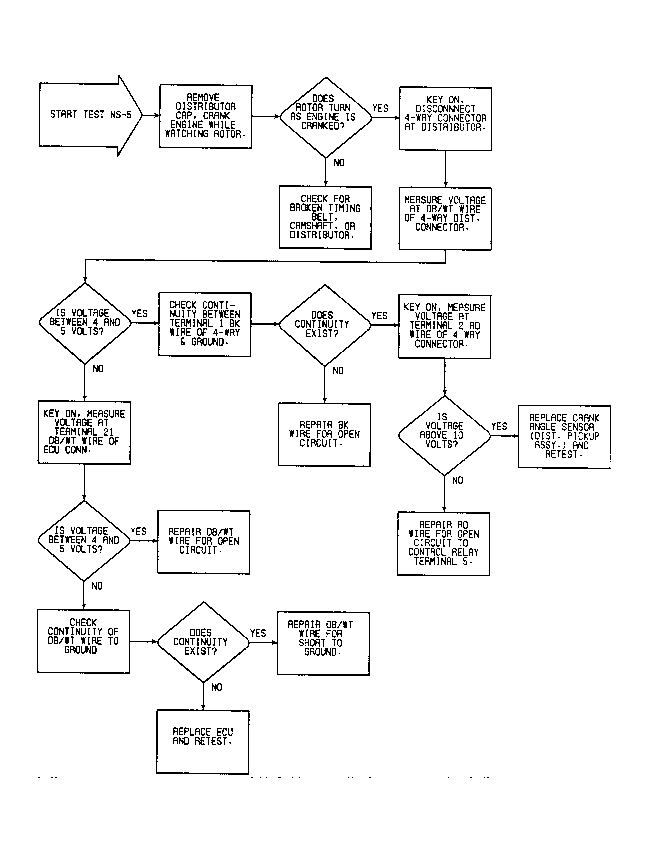

Fig 2: Flow Chart NS-5 (3.0L)
G90D20100
