NS-1: Testing Ignition Circuit

Fig 1: Circuit Diagram NS-1 (3.0L)

G90D20068

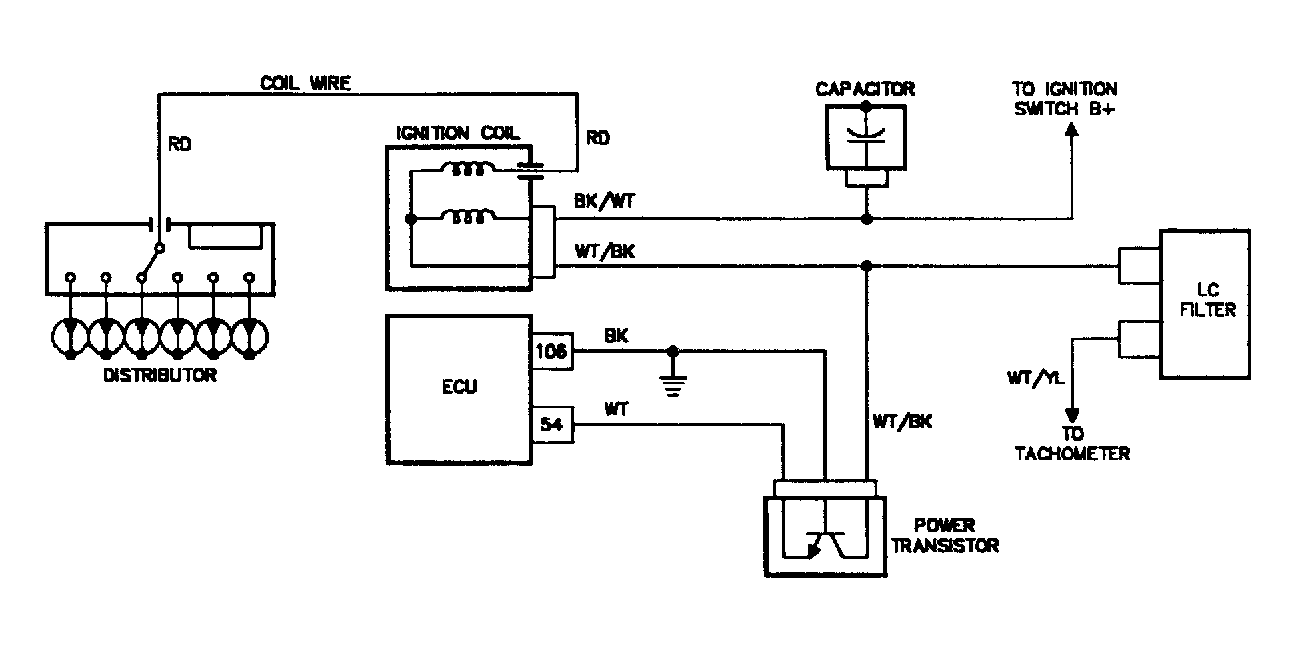

Fig 2: Circuit Diagram NS-1 (3.0L)

G90E20069

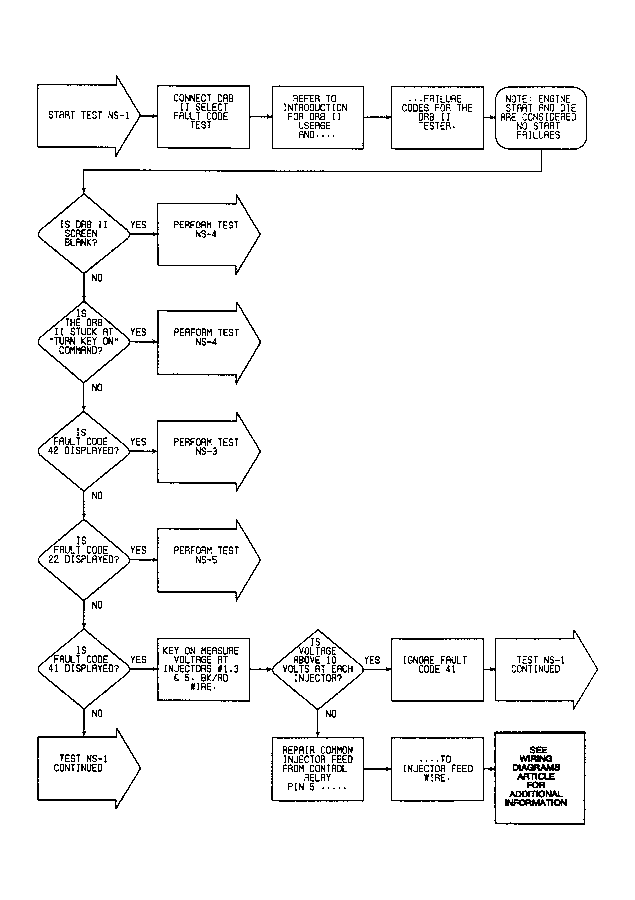

Fig 3: Flow Chart NS-1 (3.0L) (1 of 3)

G90F20094

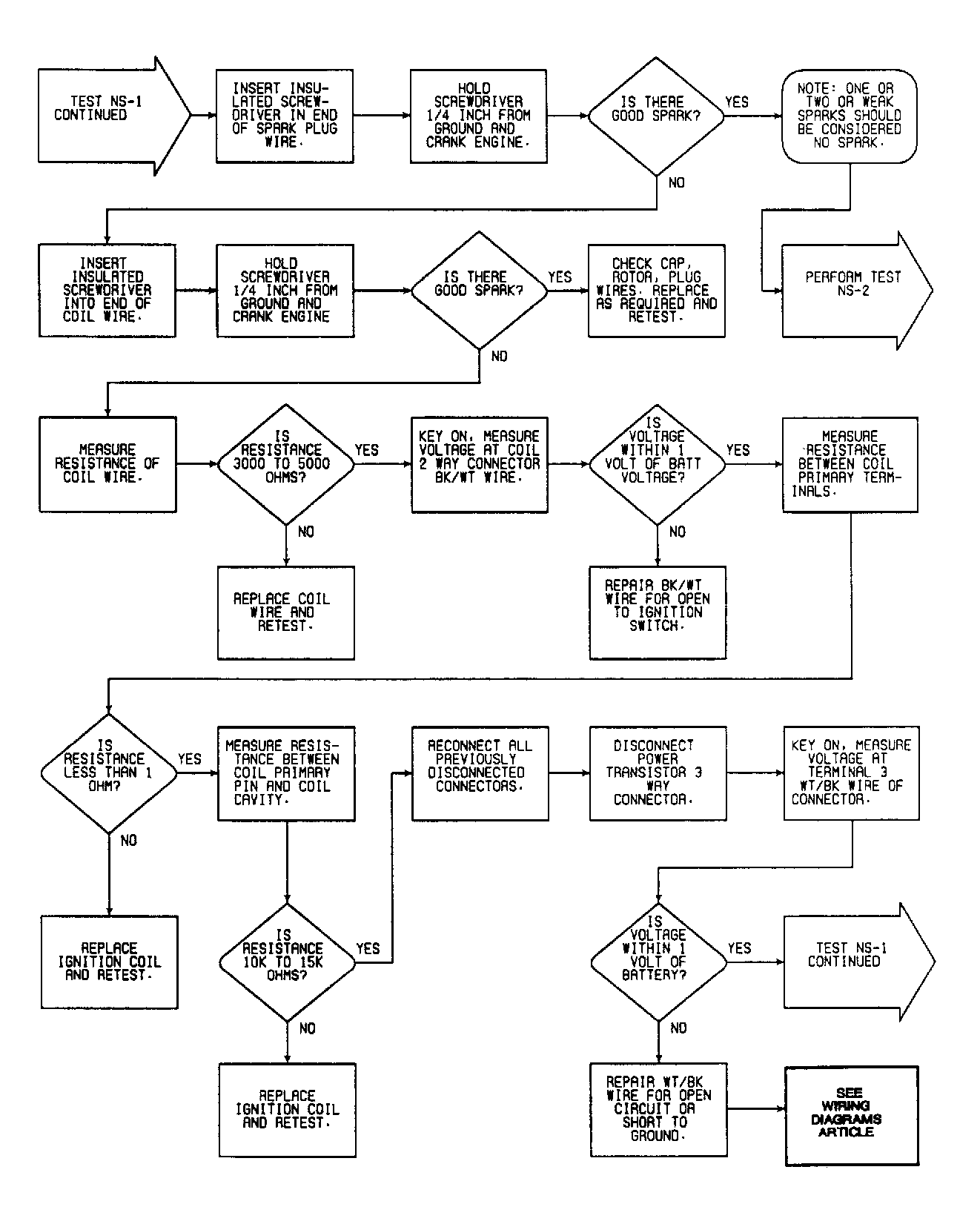

Fig 4: Flow Chart NS-1 (3.0L) (2 of 3)

G90G20095

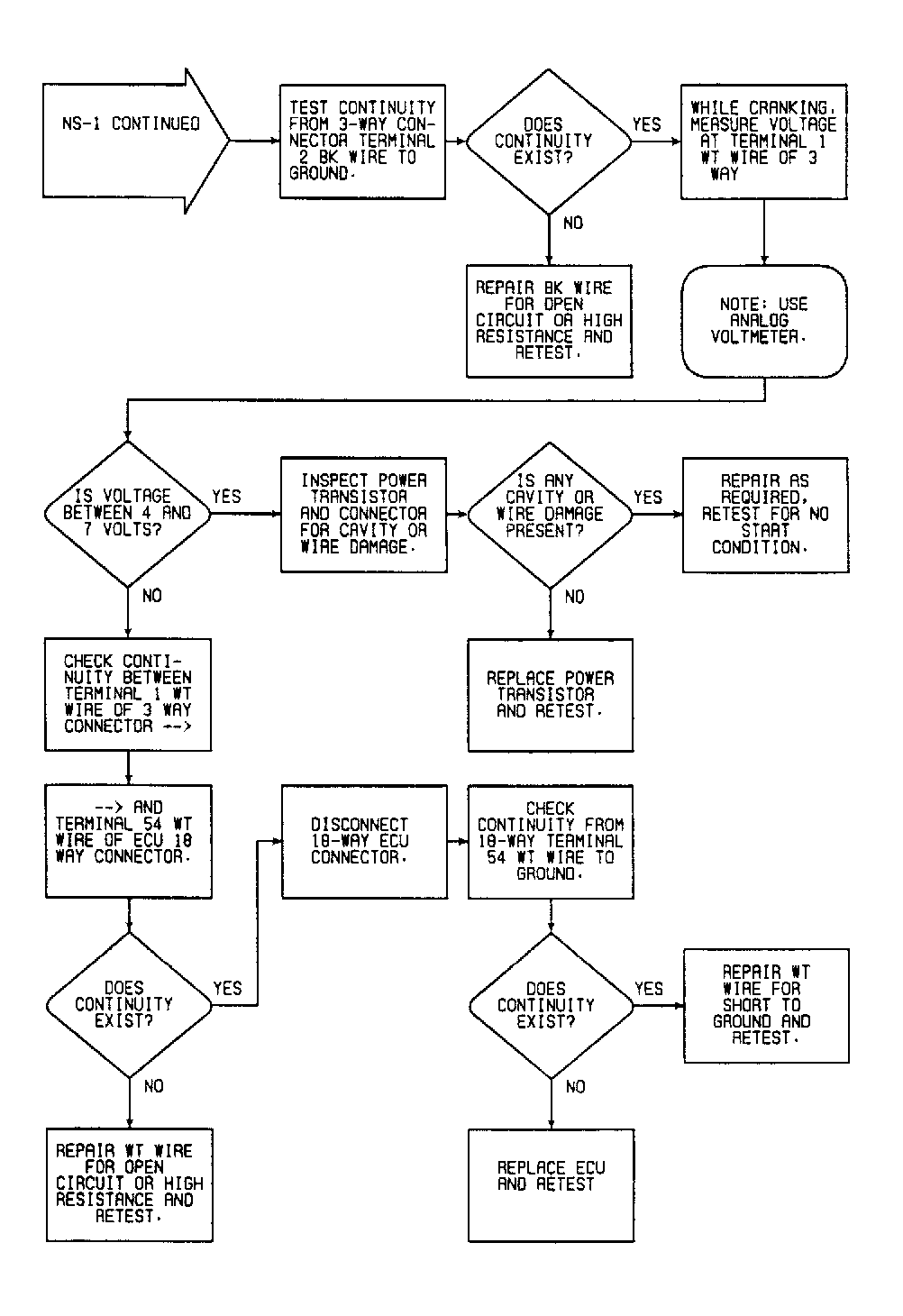

Fig 5: Flow Chart NS-1 (3.0L) (3 of 3)

G90H20096
