Dr-15: No Fault Code Switch Tests
Fig 1: Circuit Diagram DR-15 (3.0L)

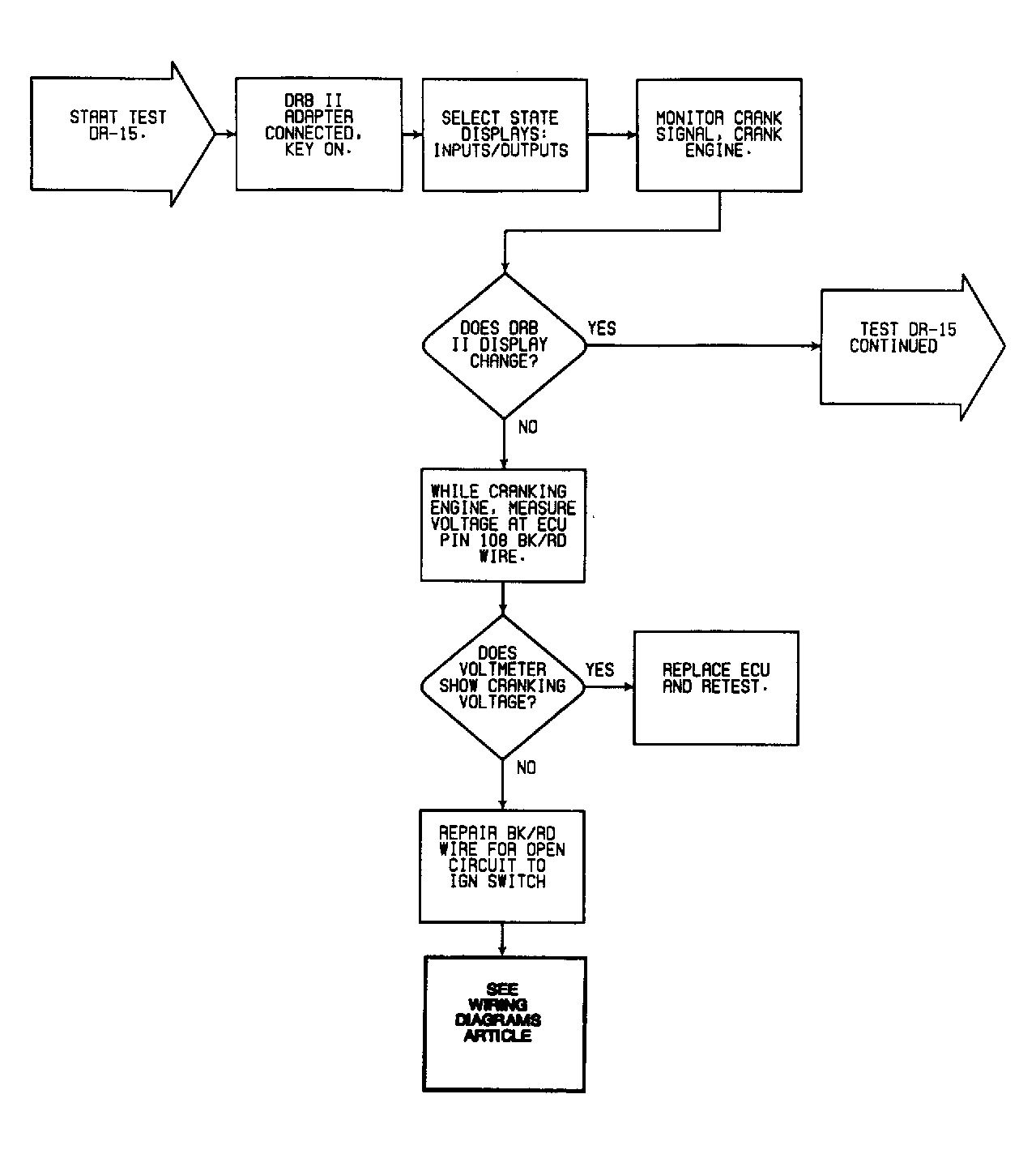

Fig 2: Flow Chart DR-15 (3.0L) (1 of 2)

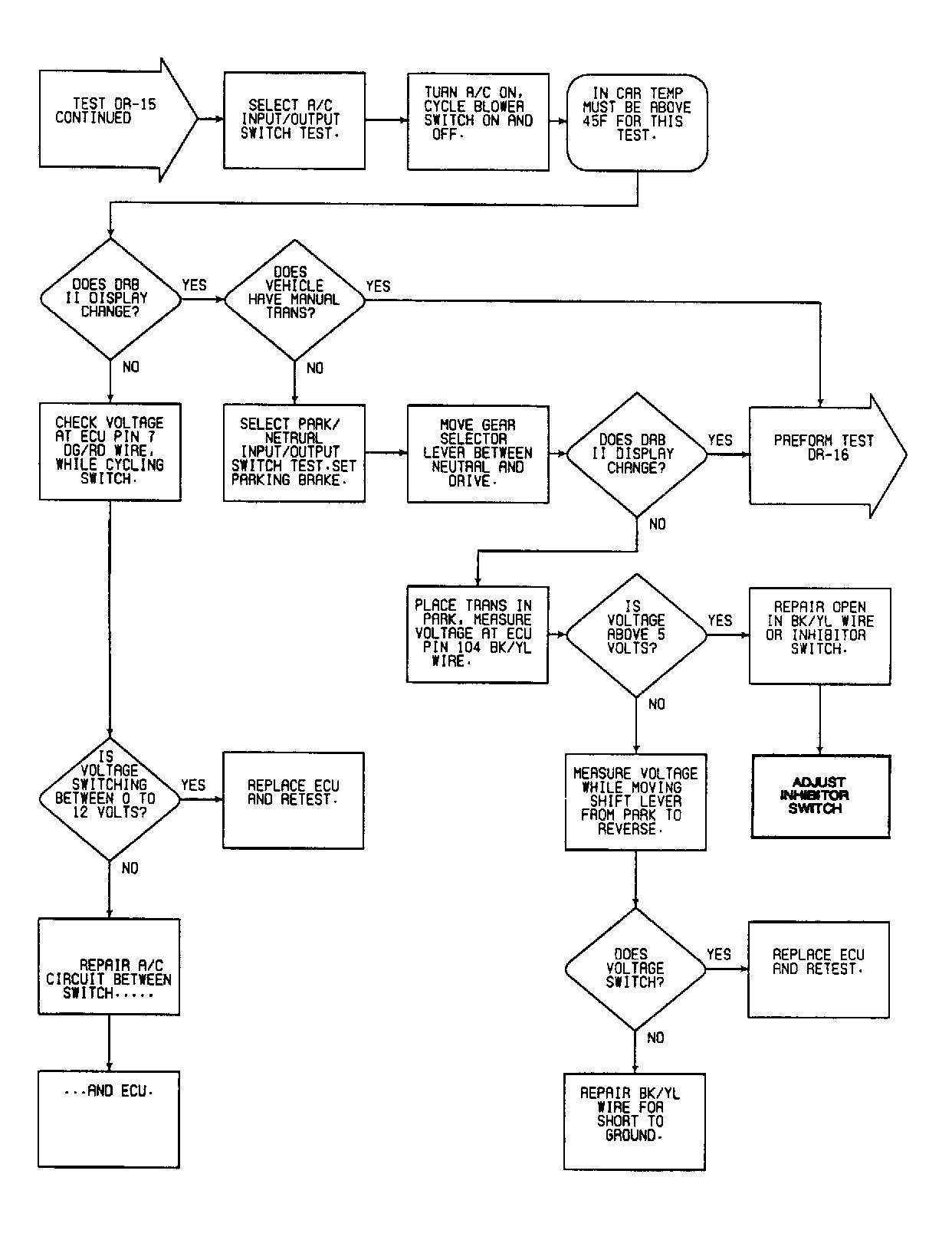

Fig 3: Flow Chart DR-15 (3.0L) (2 of 2)
