Dr-14: Code 43 EGR Temperature Sensor Circuit

Fig 1: Circuit Diagram DR-14 (3.0L)

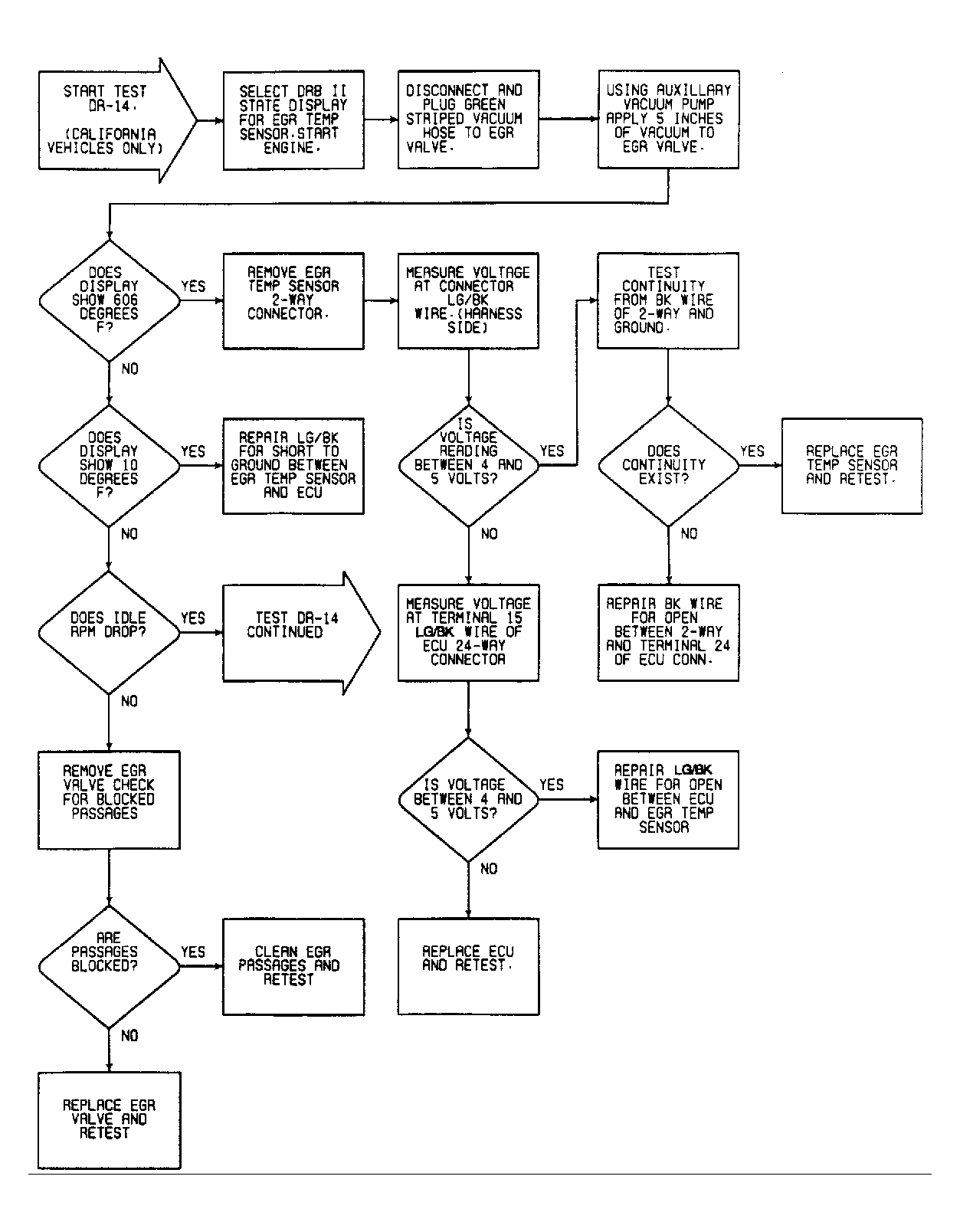

Fig 2: Flow Chart DR-14 (3.0L) (1 of 3)

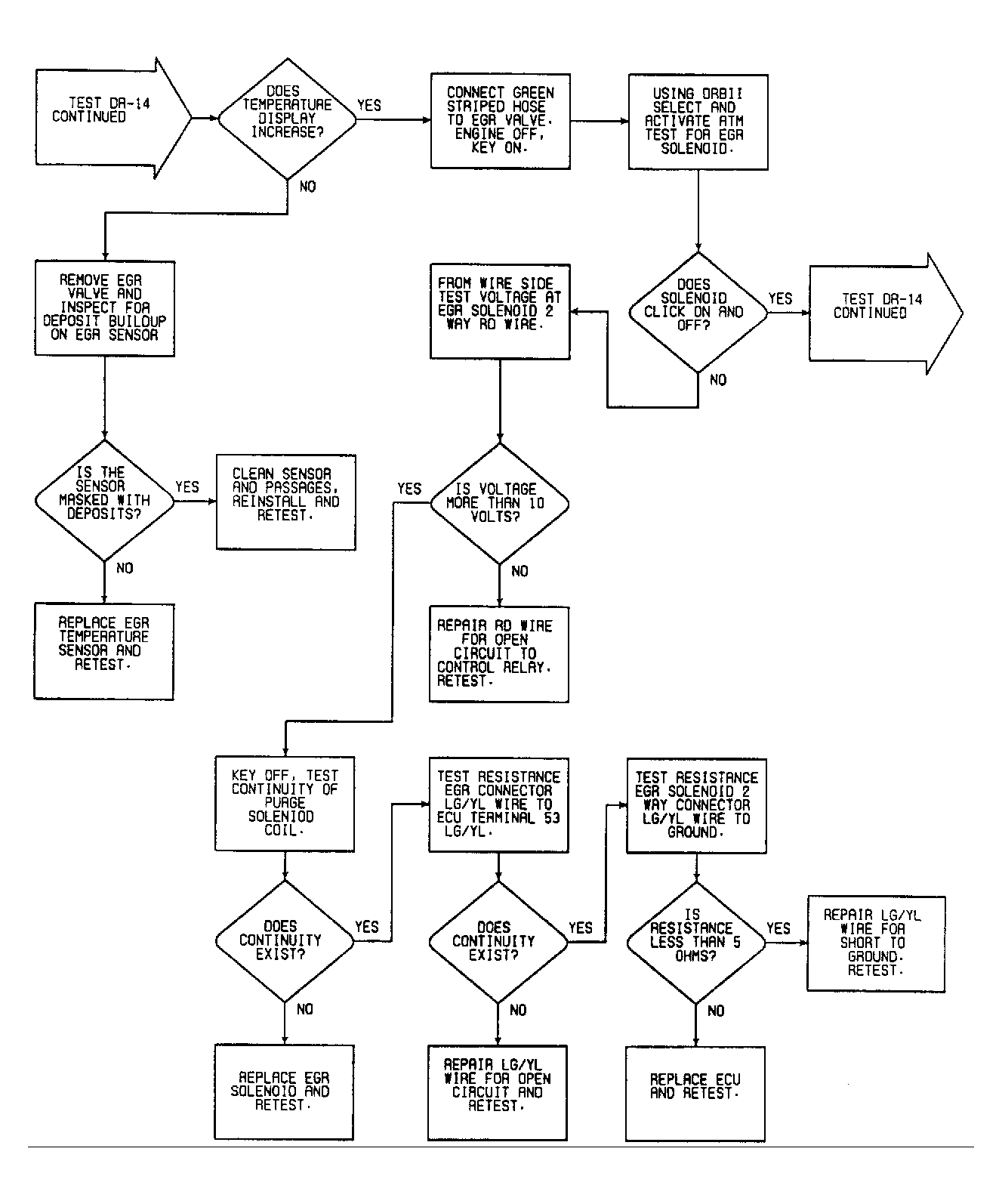

Fig 3: Flow Chart DR-14 (3.0L) (2 of 3)

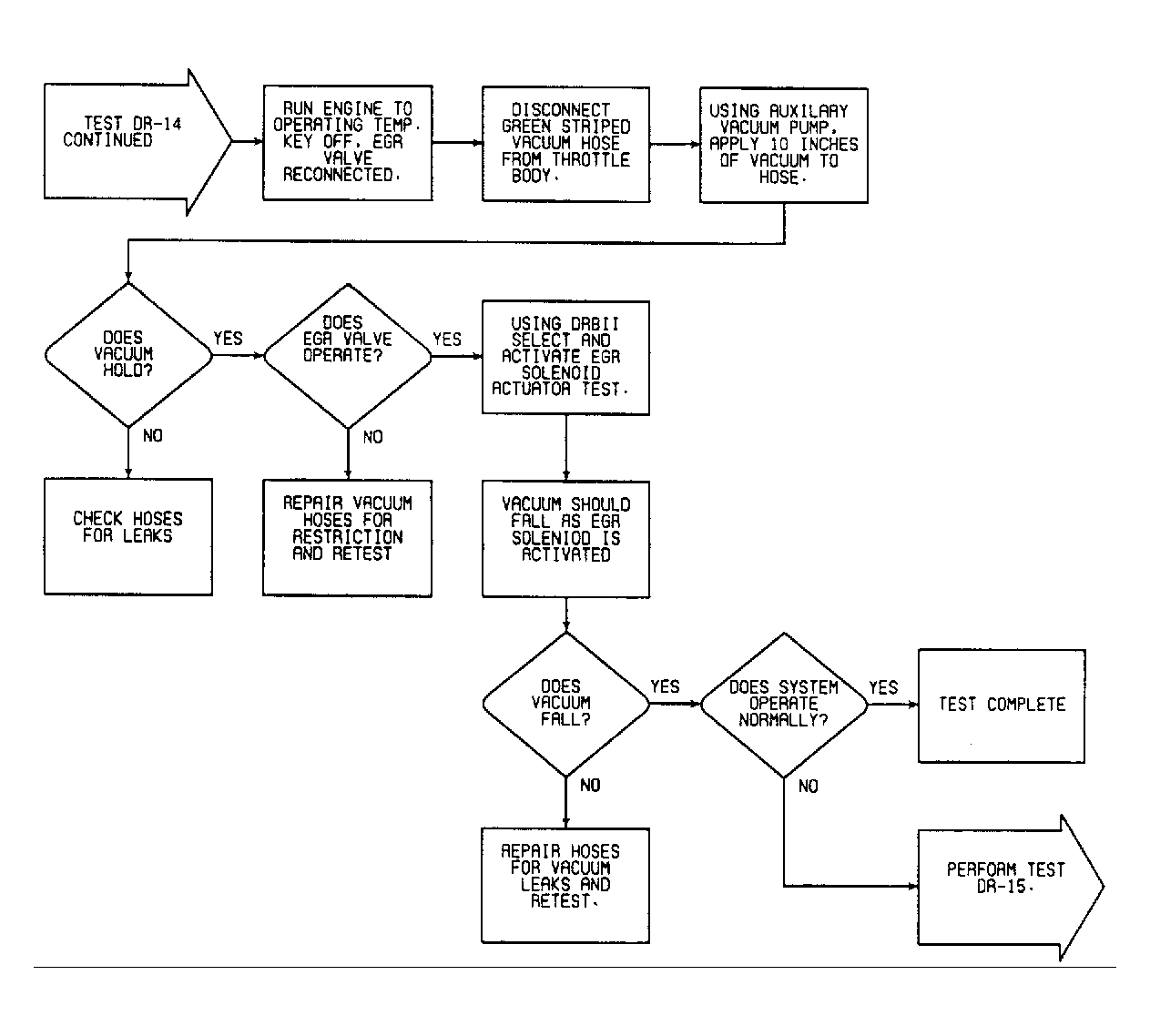

Fig 4: Flow Chart DR-14 (3.0L) (3 of 3)
