Dr-15: No Fault Code Testing

Fig 1: Circuit Diagram DR-15 (1.5L)

G90J15387

Fig 2: Circuit Diagram DR-15 (1.5L)

G90A15388

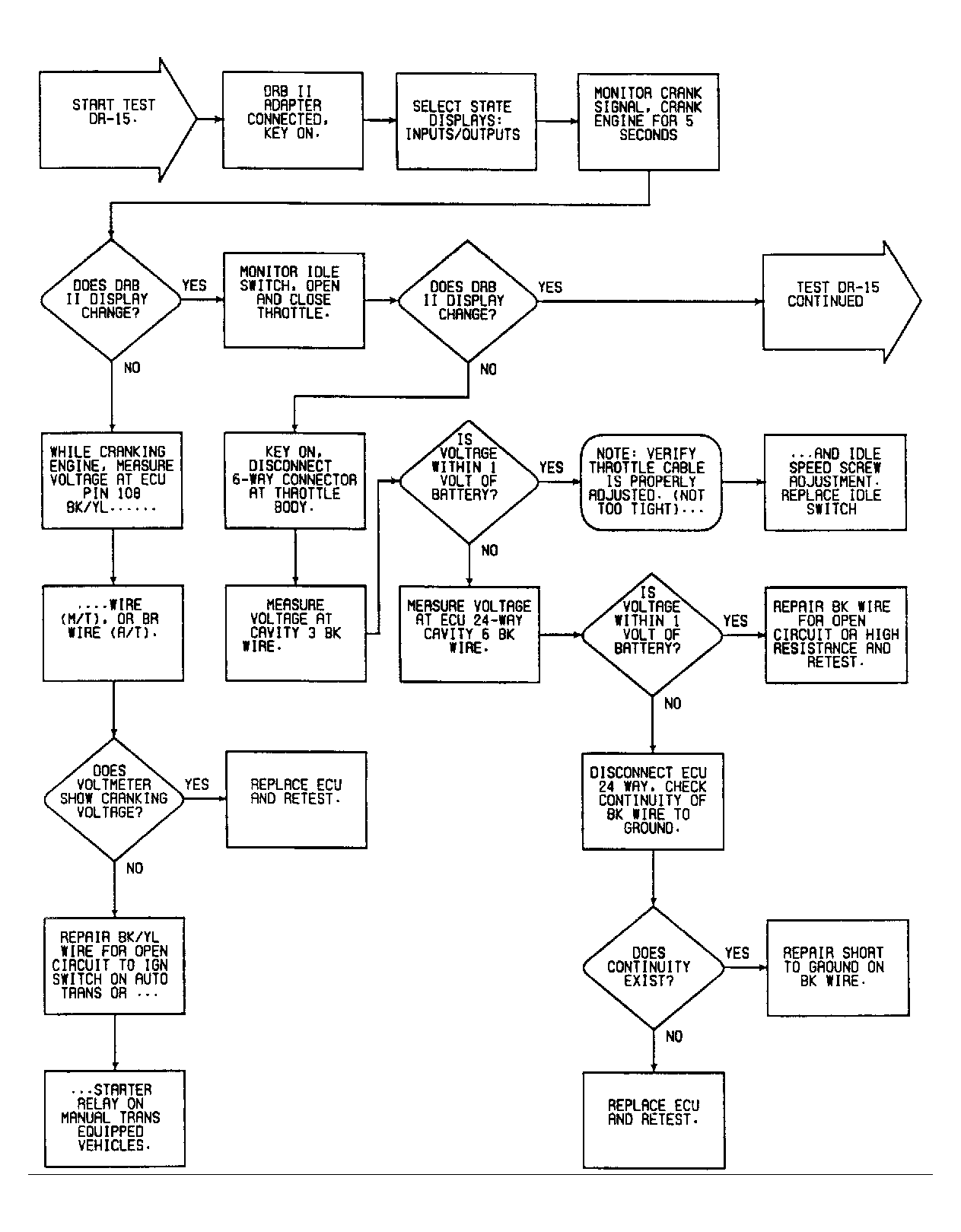

Fig 3: Flow Chart DR-15 (1.5L)

G90A15461

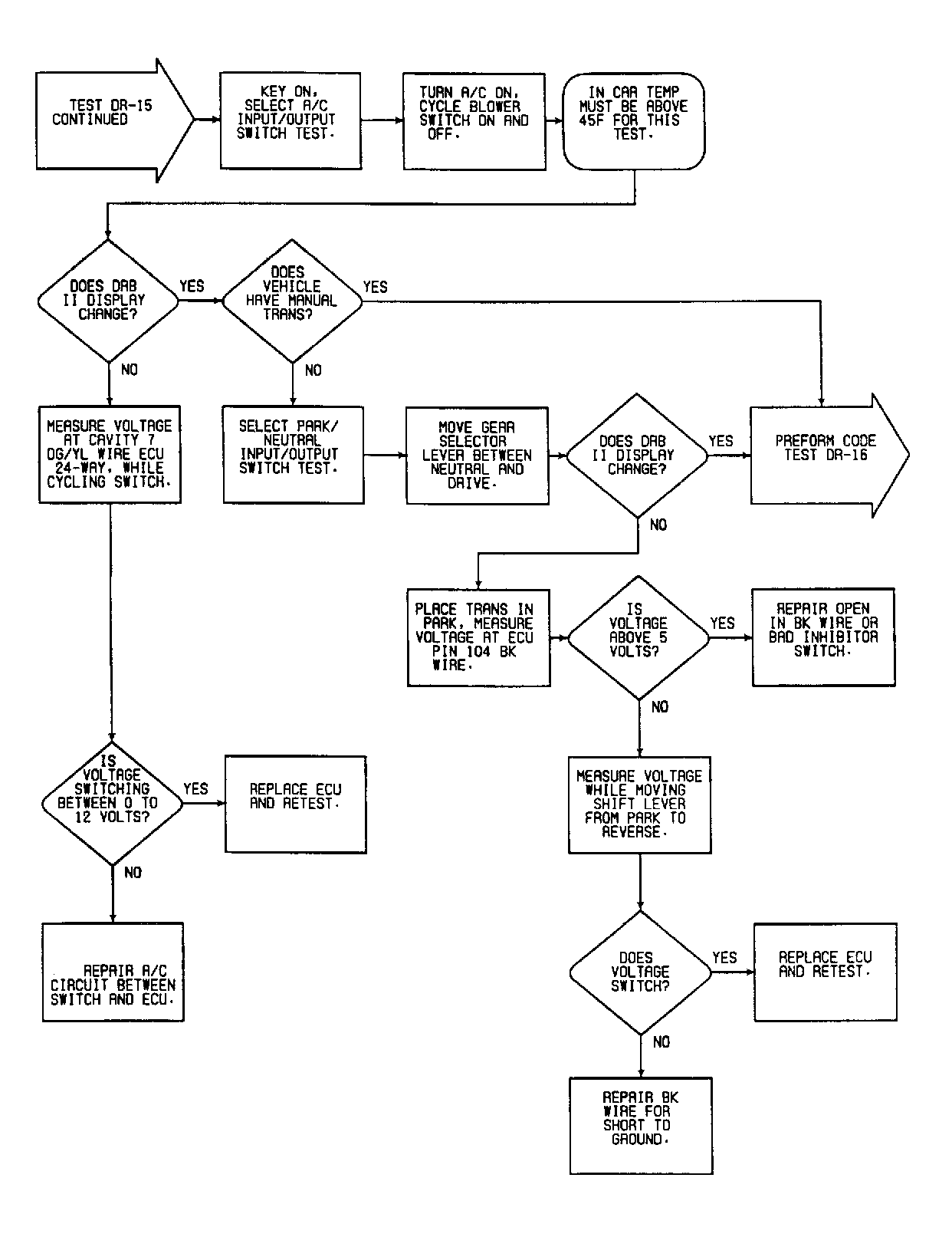

Fig 4: Flow Chart DR-15 (1.5L)

G90B15462
