Home >> Mitsubishi >> 1987 >> Tredia L4-2.0L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque Specifications

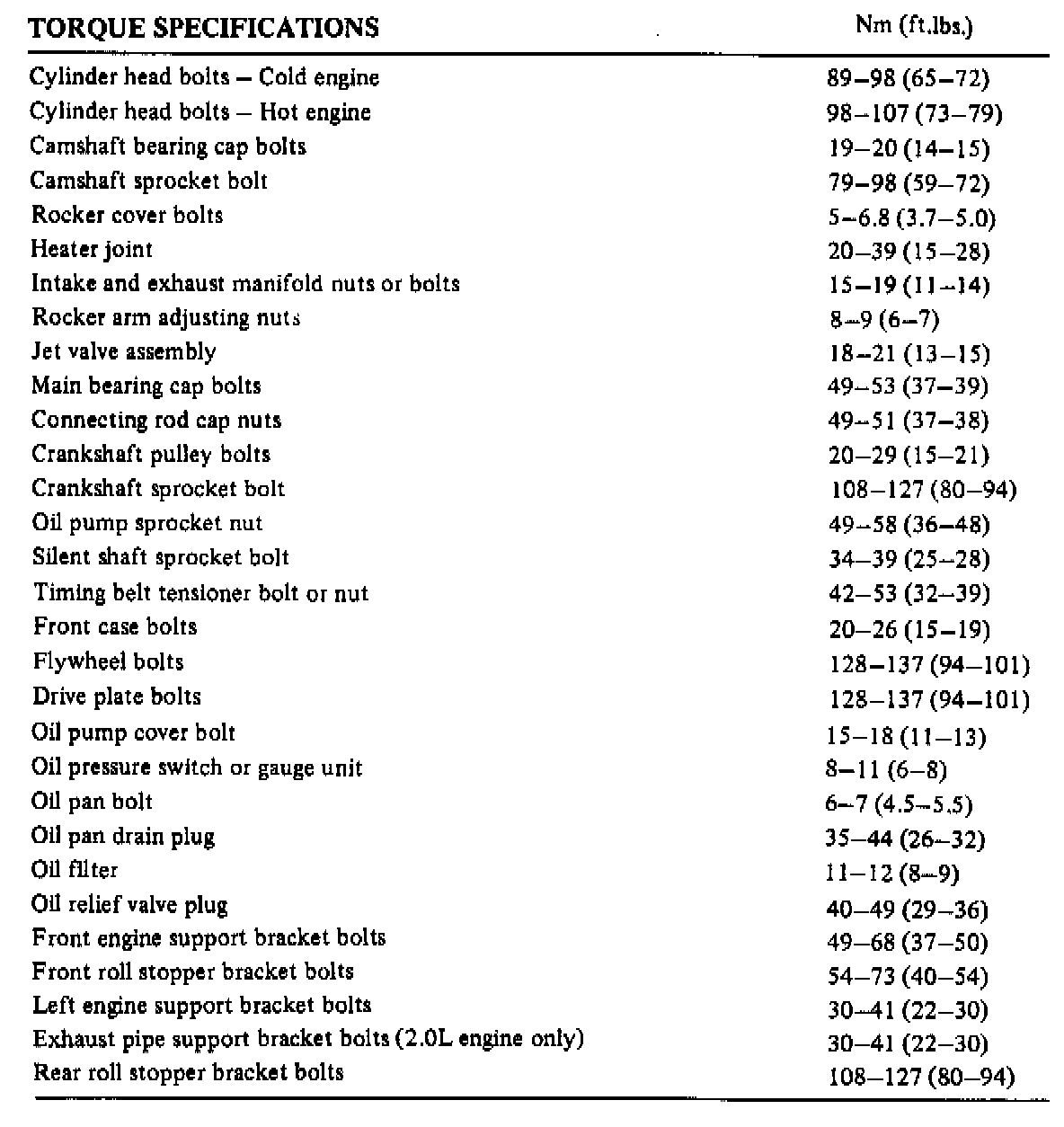

Torque Specifications




Cylinder Head Bolt Removal Sequence:




Cylinder Head Bolt Torque Sequence:
