Home >> Mitsubishi >> 1987 >> Precis L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> M/T Torque Data

M/T Torque Data

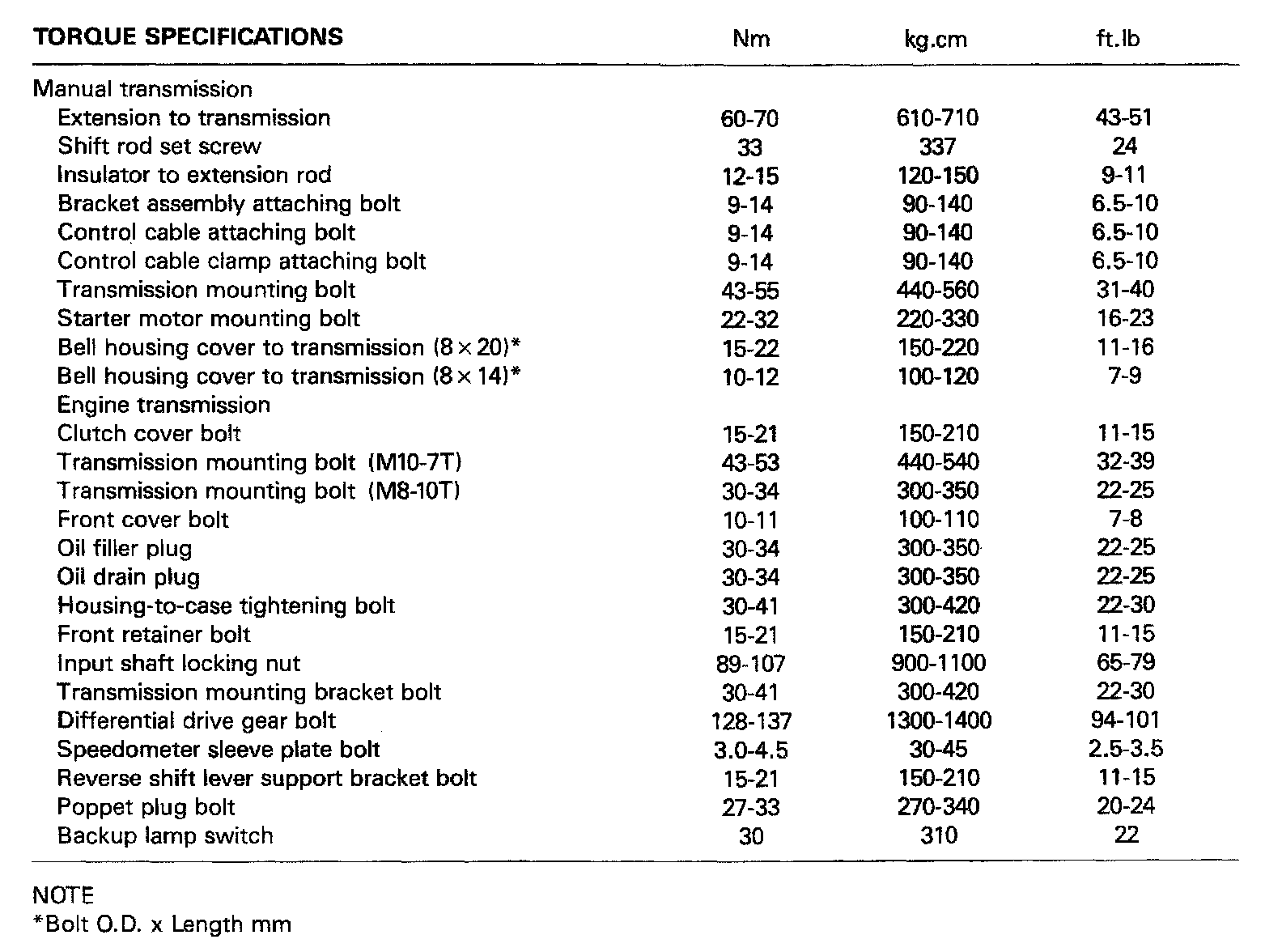

4-spd M/T / 5-spd M/T, Clutch Torque:

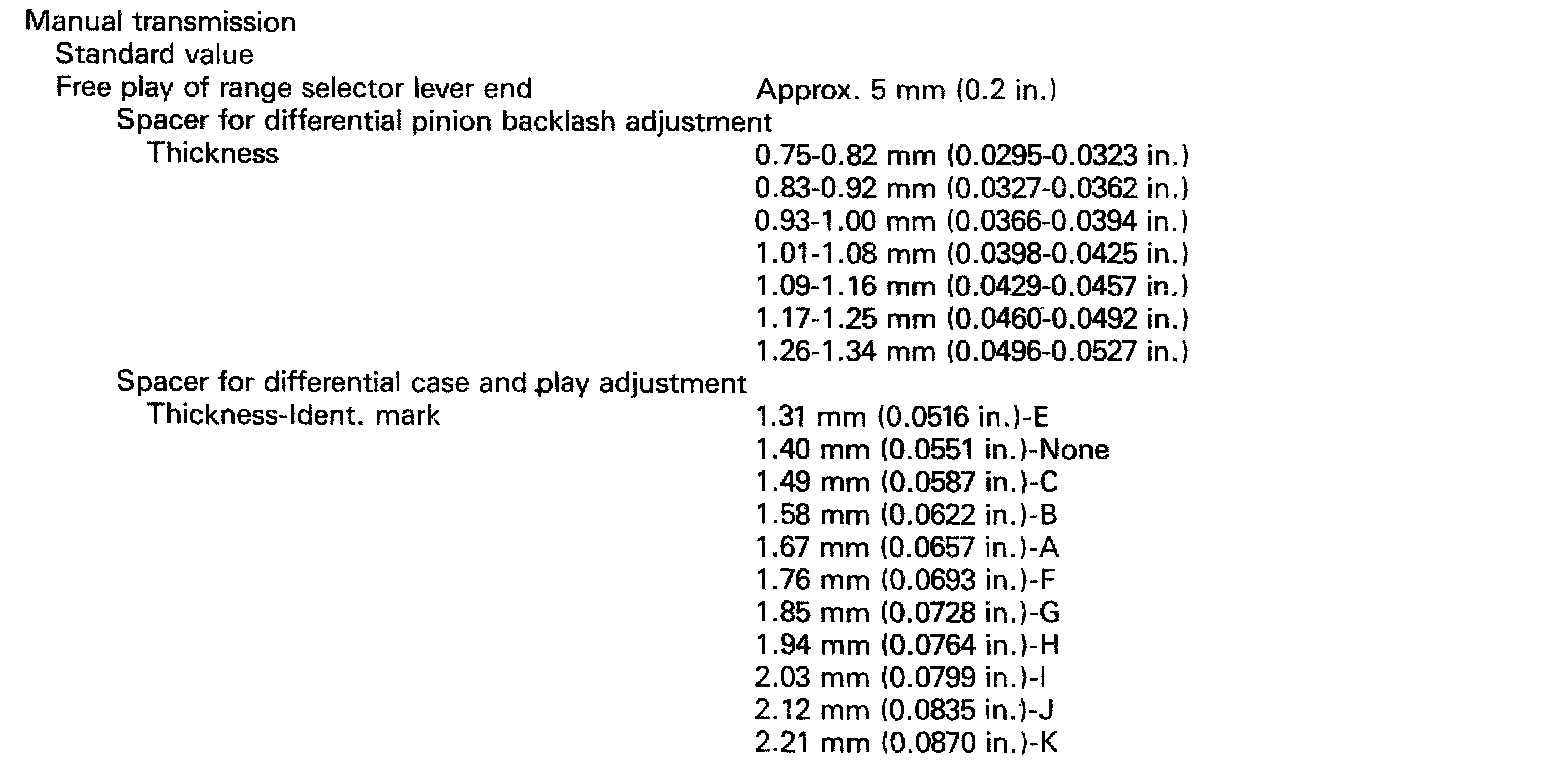

4/5-spd M/T, Standard Value Differential Thickness:





4/5-spd M/T, Transmission Torque:
