Home >> Mitsubishi >> 1987 >> Precis L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque Specifications

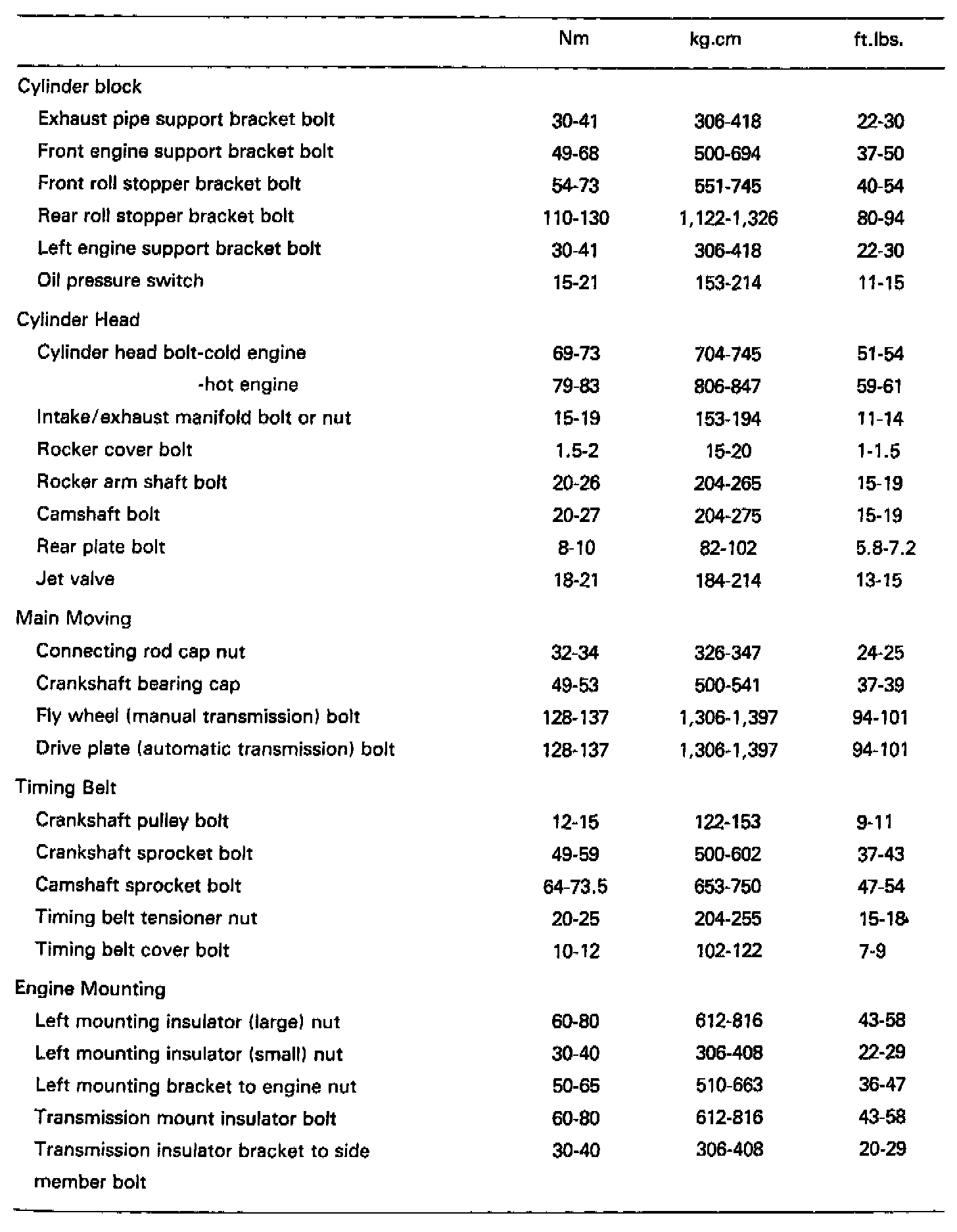

Torque Specifications

Cylinder Head Bolt Removal Sequence:

Cylinder Head Bolt Torque Sequence:
