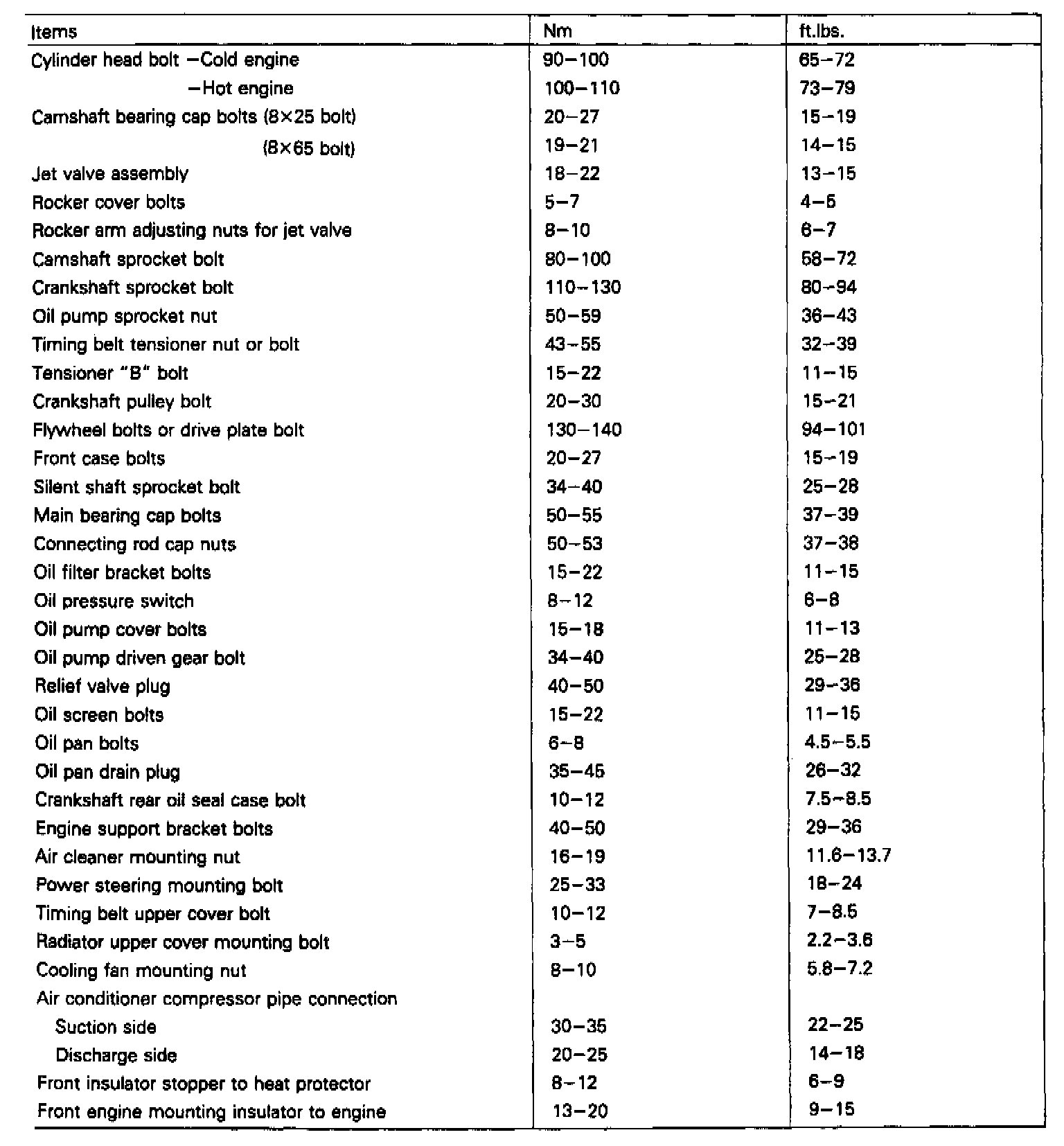

Torque Specifications

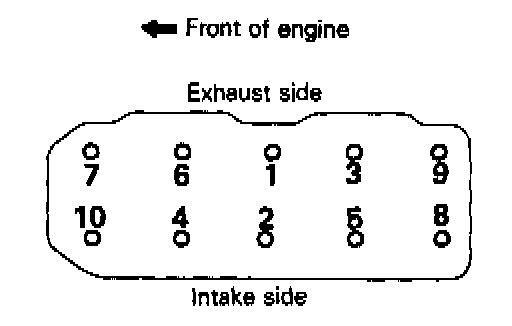

Cylinder Head Bolt Removal Sequence - 2.0 Engine:

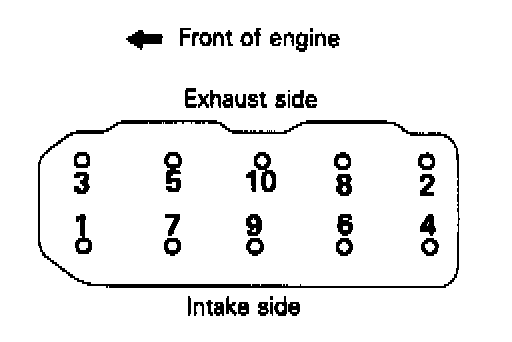

Cylinder Head Bolt Torque Sequence - 2.0 Engine:
