Mechanical Specifications
>>
Differential Assembly
>>
Service Specifications
Service Specifications

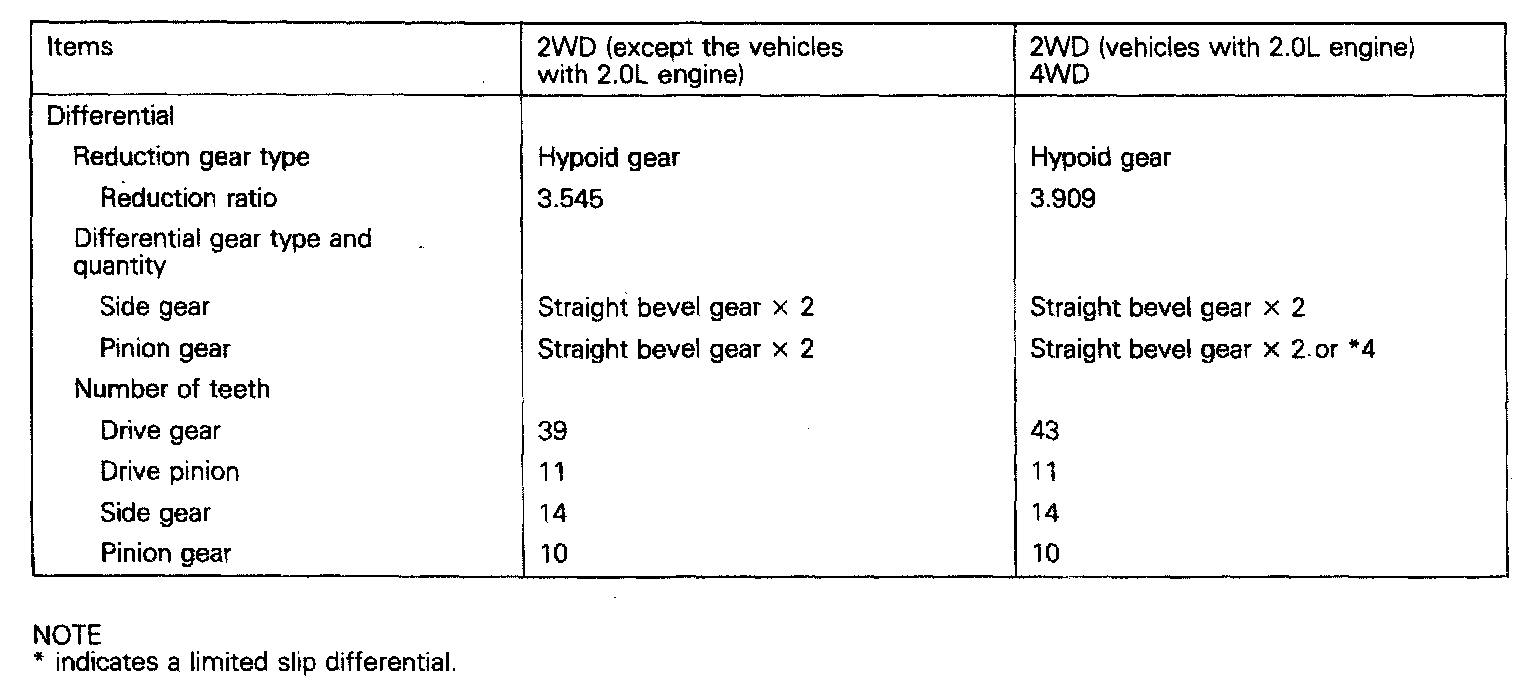

2WD/4WD Rear Axle Differential, Dimensions:

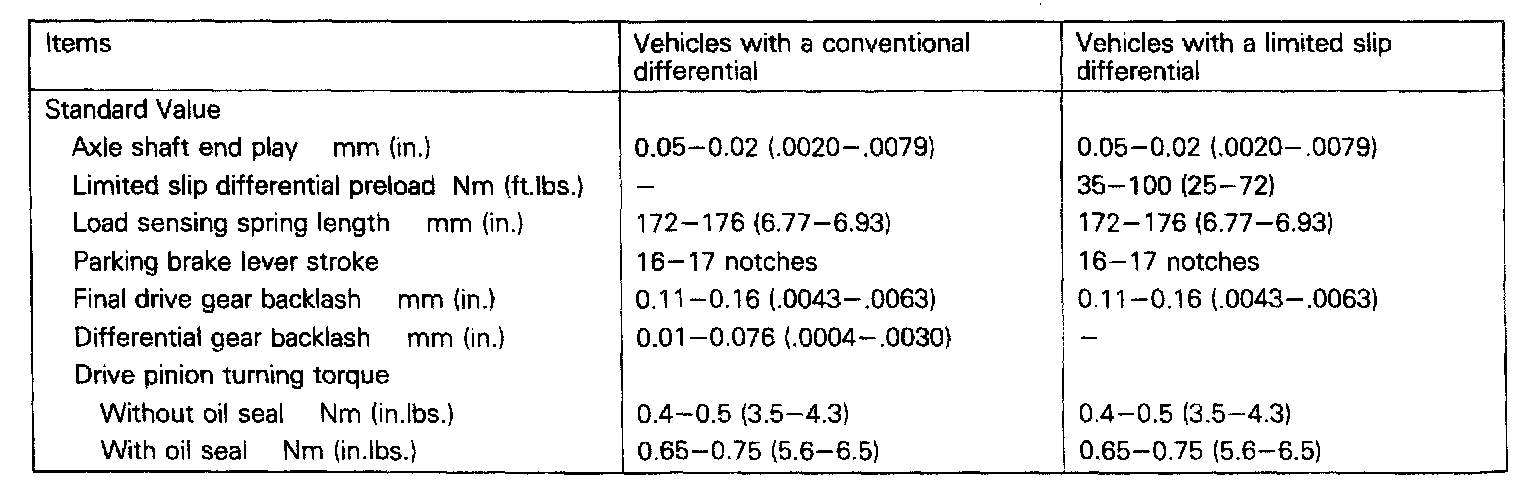

2WD/4WD Rear Axle Differential Standard Values:

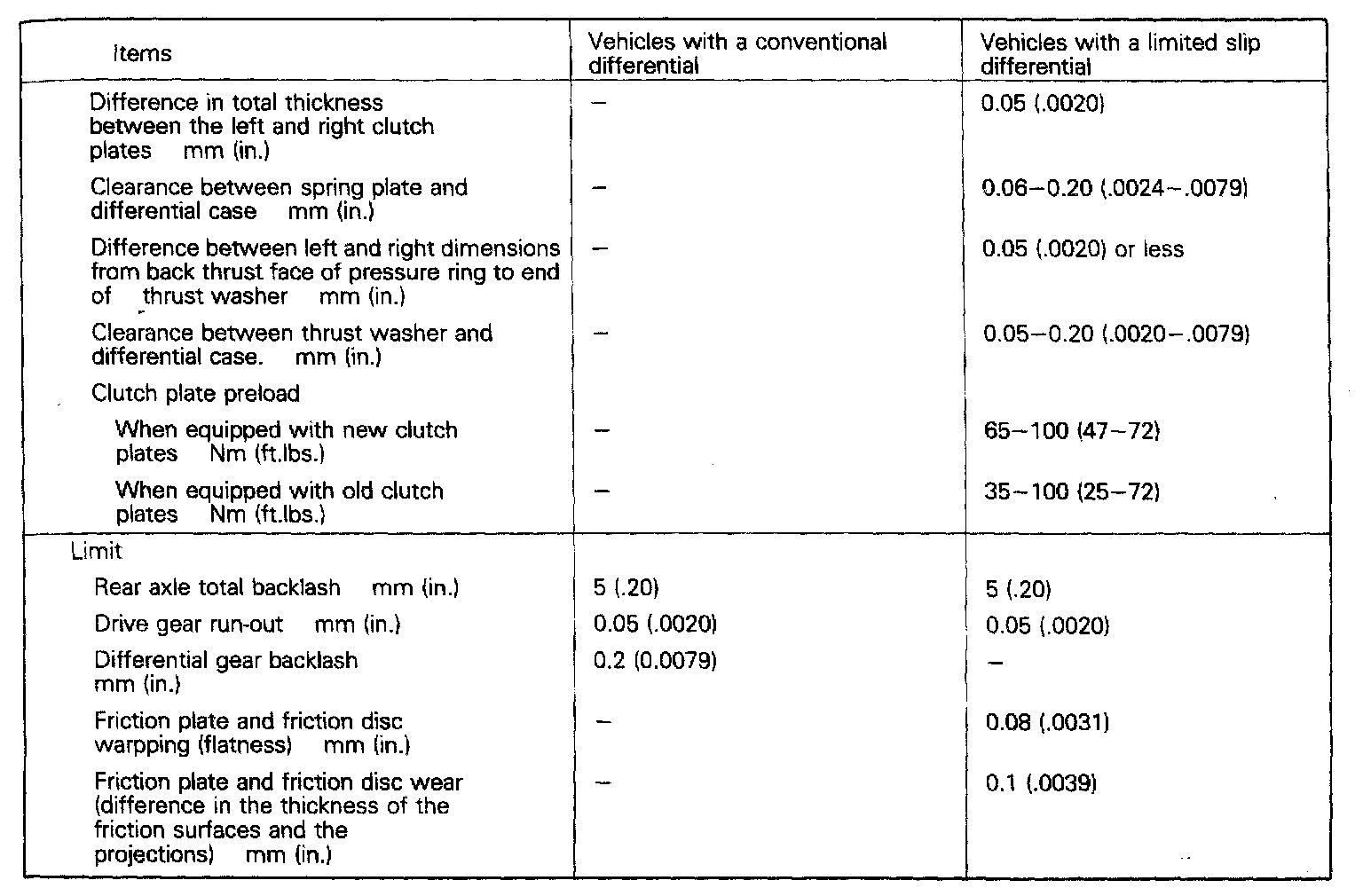

2WD/4WD Rear Axle Differential, Standard Values & Limits:
