Base Ignition Timing Specifications

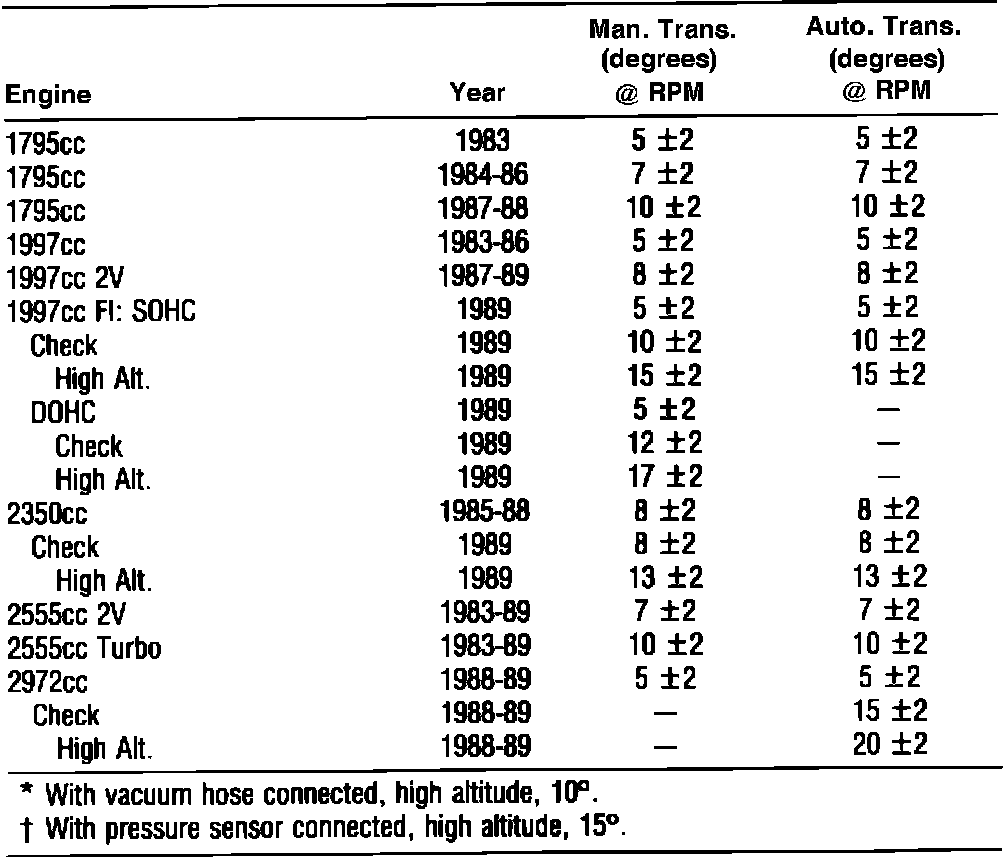

Fig. 3 Timing Specifications *** UPDATED BY TSB 8600001 AUGUST, 1990:
