Vehicle Speed Sensor: Locations

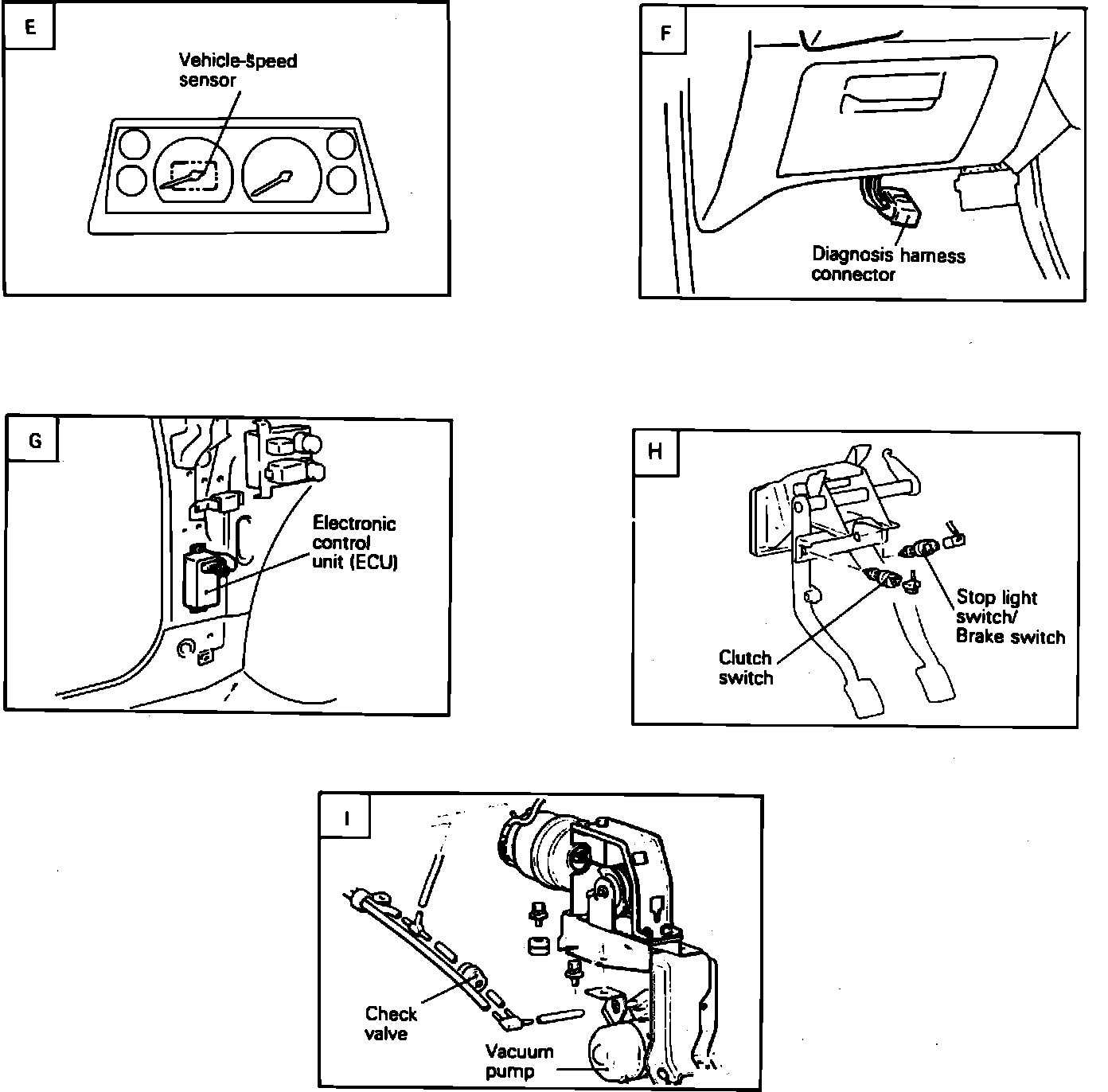

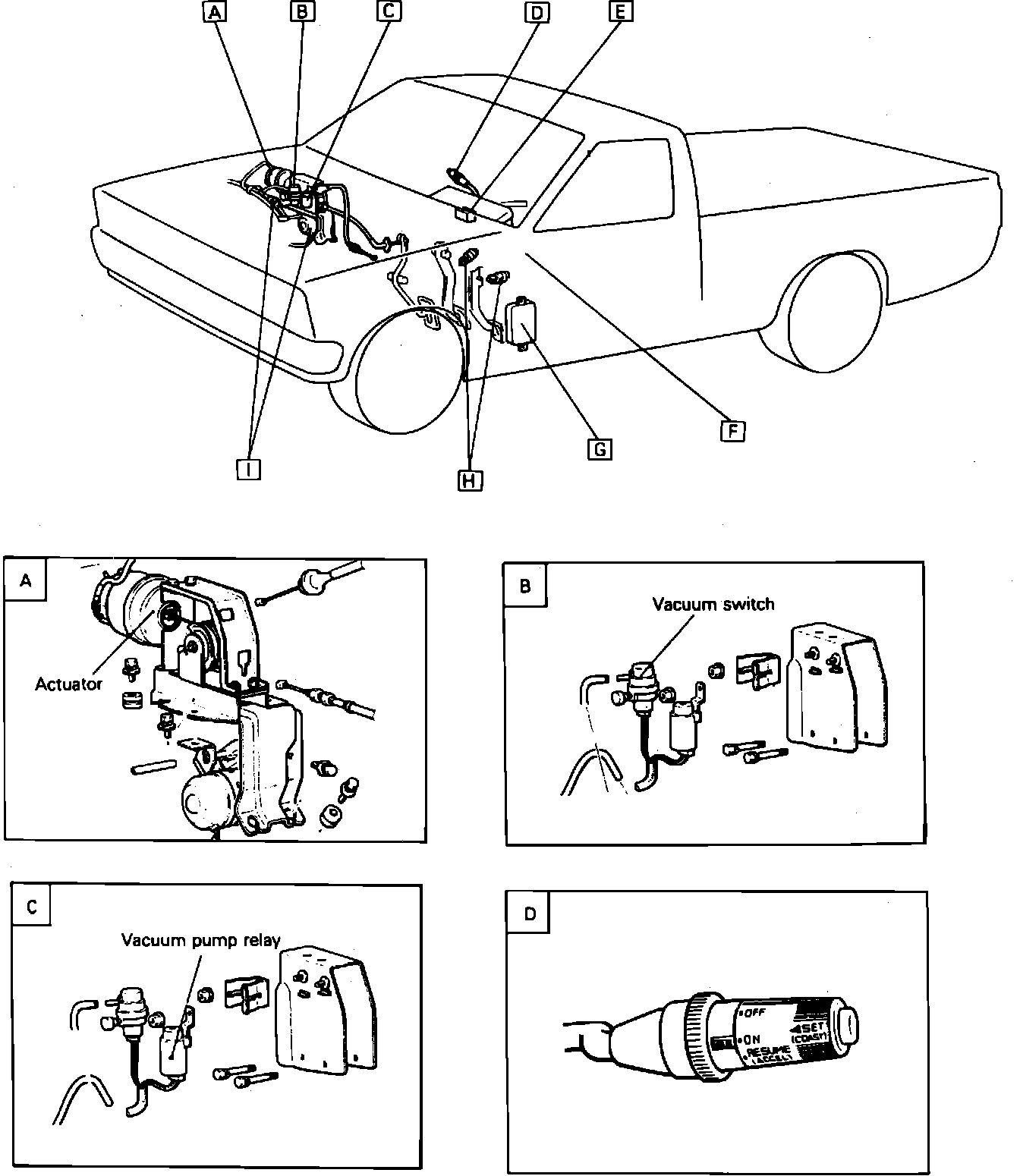

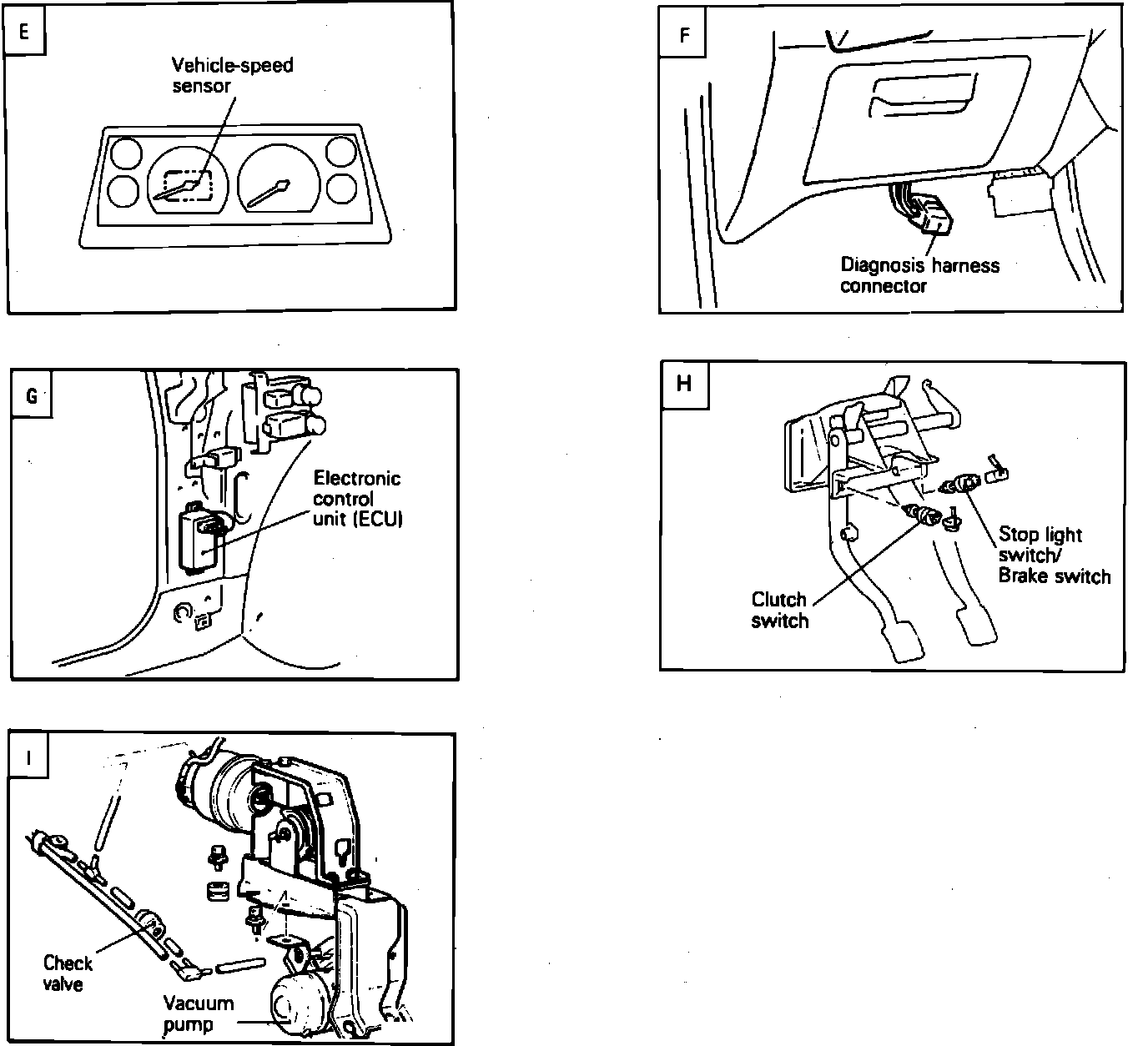

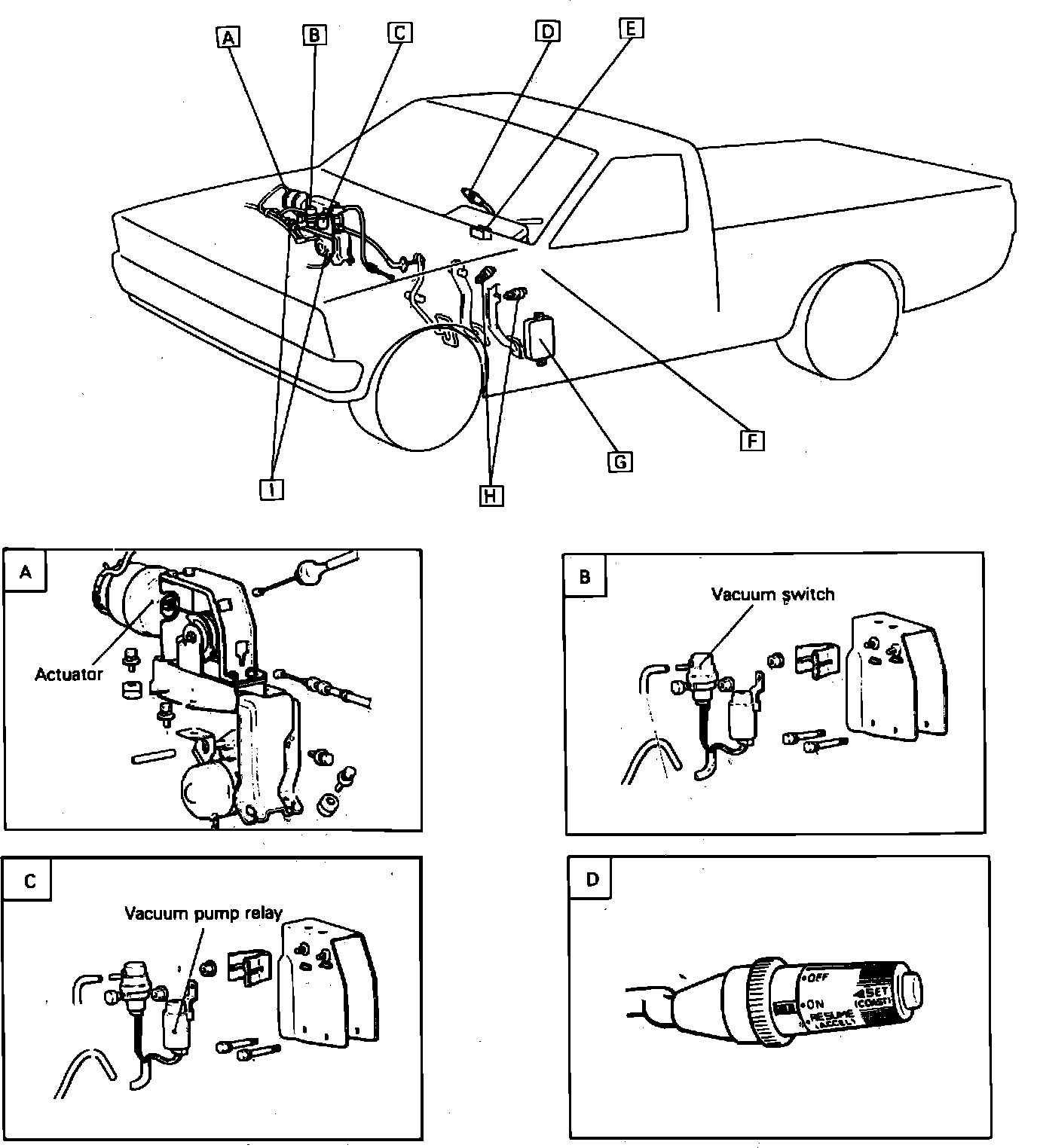

Automatic Speed Control System Components (Part 1 Of 2).:

Automatic Speed Control System Components (Part 1 Of 2).:

Behind I/P

Applicable to: Pickup

Wiring Harness (Automatic Speed Control Circuit, Part 1 Of 2).:

Wiring Harness (Automatic Speed Control Circuit, Part 1 Of 2).:

LH Side Of I/P

Applicable to: Pickup
