Wiring Diagrams

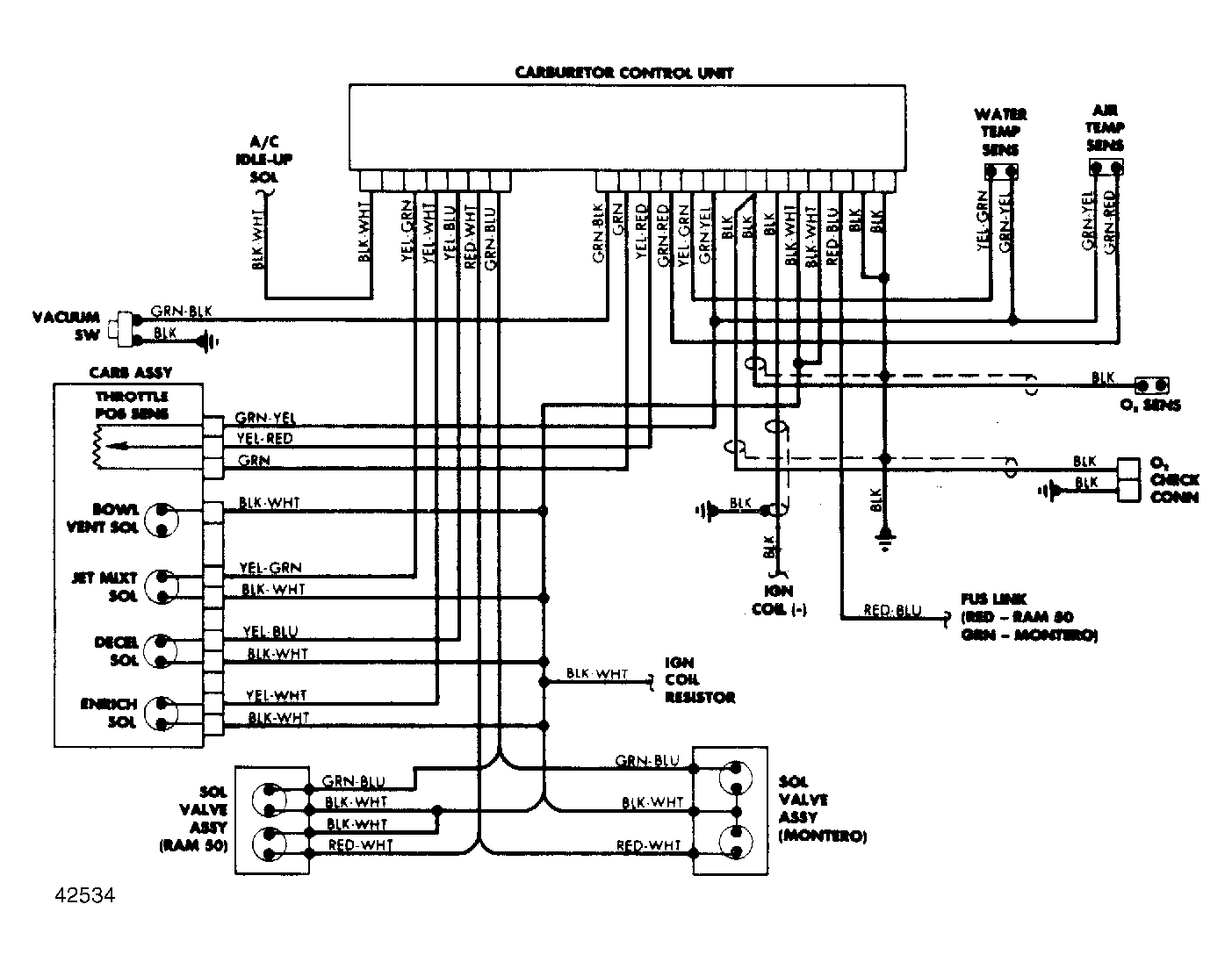

Fig 1: Mitsubishi Montero & Pickup Feedback Carburetor System Wiring Diagram

G42534
