51 61... Removing And Installing/Replacing Protective Skid
WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe safety instructions
for raising the vehicle. Driving without the protective skid is not permitted! See 00...... LIFTING VEHICLE WITH A LIFTING PLATFORM
.
Necessary preliminary tasks:
- Remove front underbody protection . See 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION .

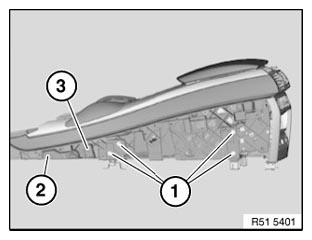

Release screws (1) and remove protective skid (2).
Installation:
Replace all screws.
Tightening torque. Refer to 51 71 12AZ in 51 71 SEALS AND LOOSE BODY PARTS .
