Convertible Top Control Module
>>

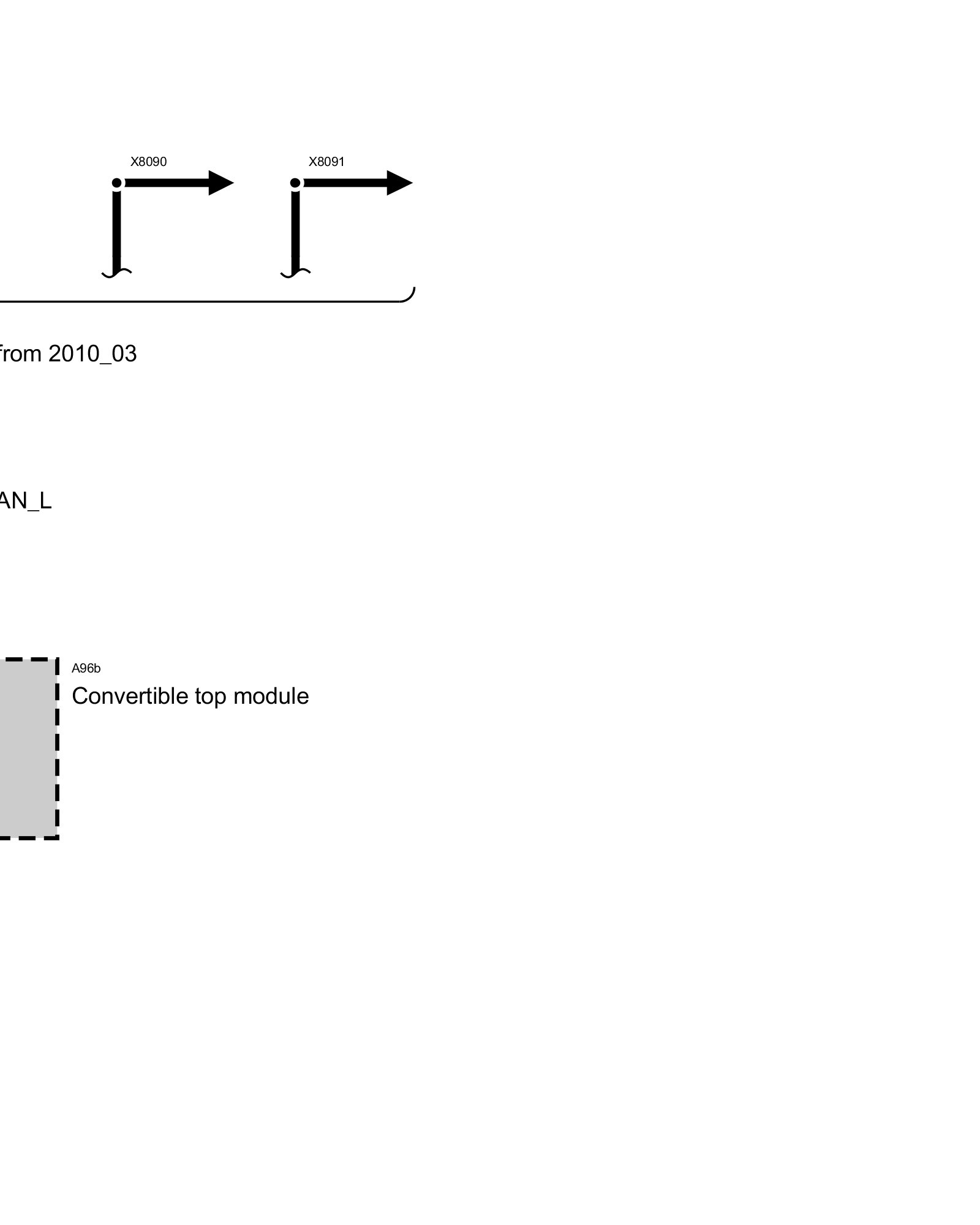

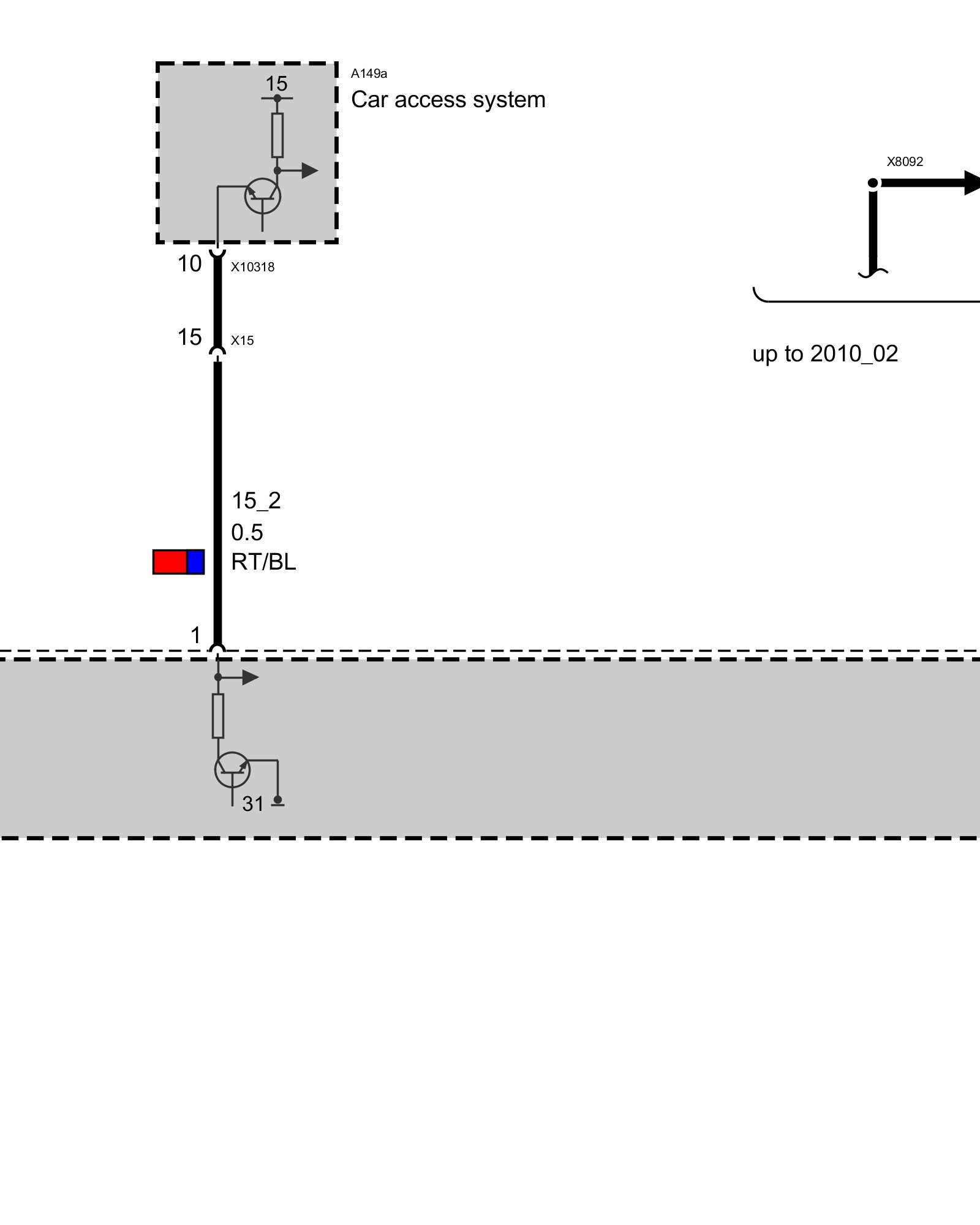

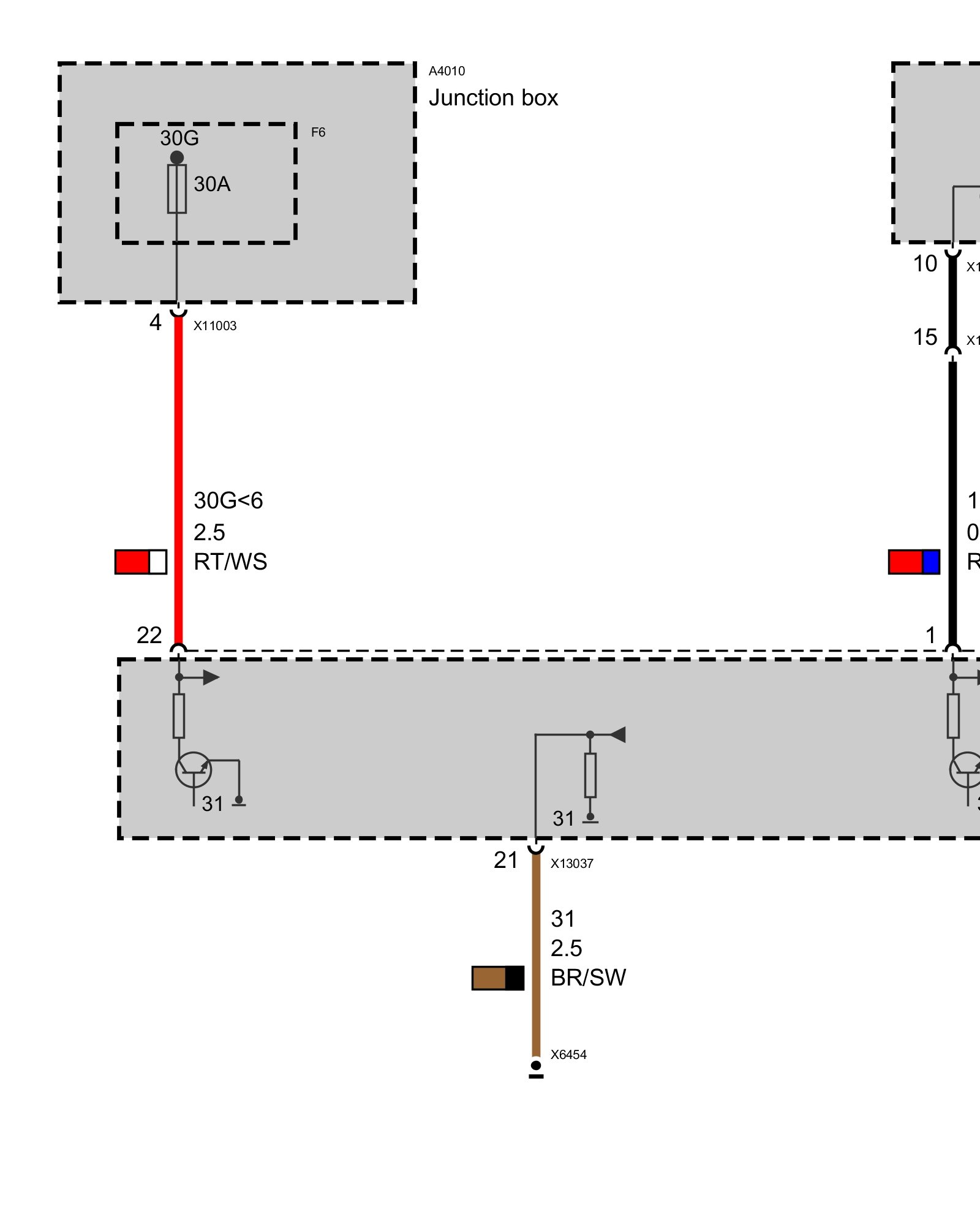

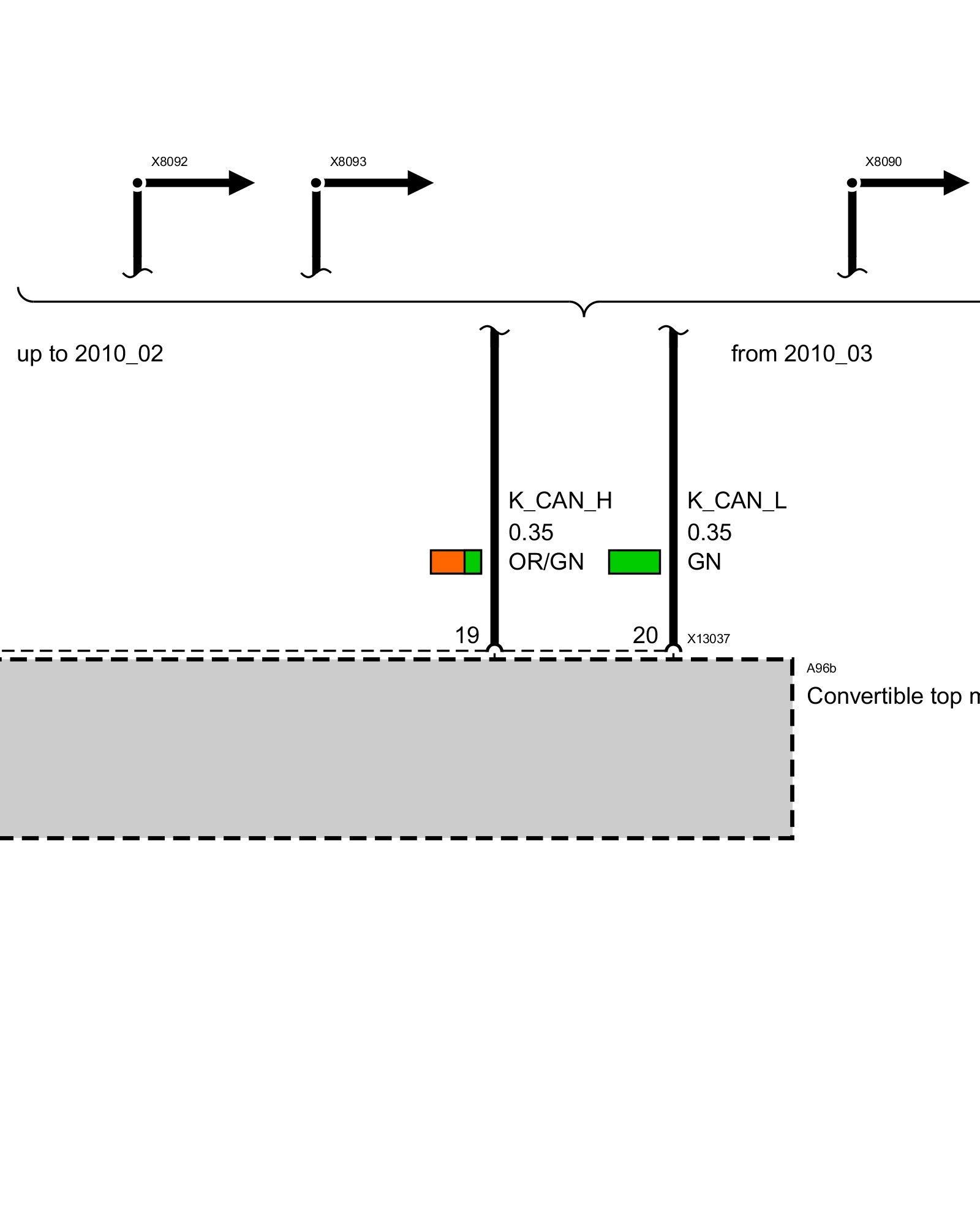

Power Supply, Convertible Top Module
Power Supply, Convertible Top Module
Power Supply, Convertible Top Module
