Replacing Manifold Absolute Pressure Sensor

Replacing Manifold Absolute Pressure Sensor (COOPER S)


NOTE: Read out faulty memory of EMS2000 control module,check stored fault memory,rectify faults,clear fault memory.

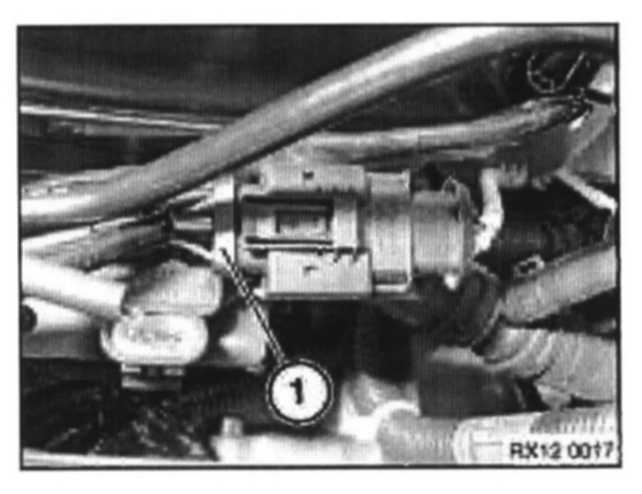

Disconnect oxygen sensor connector (1).

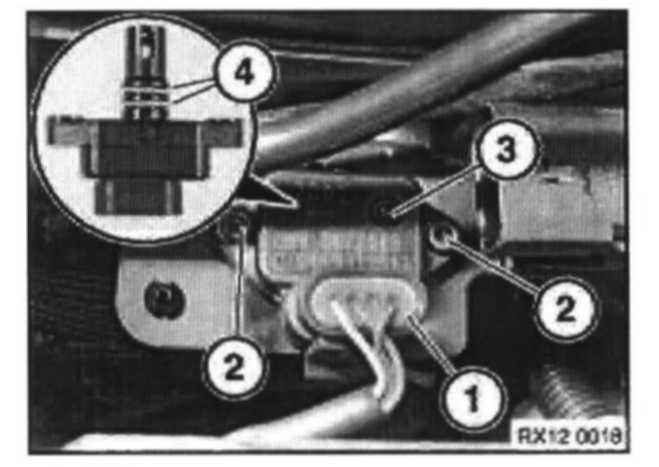

Disconnect MAP sensor connector (1).
Remove MAP sensor retaining screws (2) and remove sensor (3).
Replace O-ring (4).
Tightening torque: MAP Sensor to bracket 3 Nm


NOTE: Read out fault memory of EMS2000 control module, check stored fault memory, rectify faults, clear fault memory.
