PINPOINT TEST FD: BRAKE PEDAL INPUTS

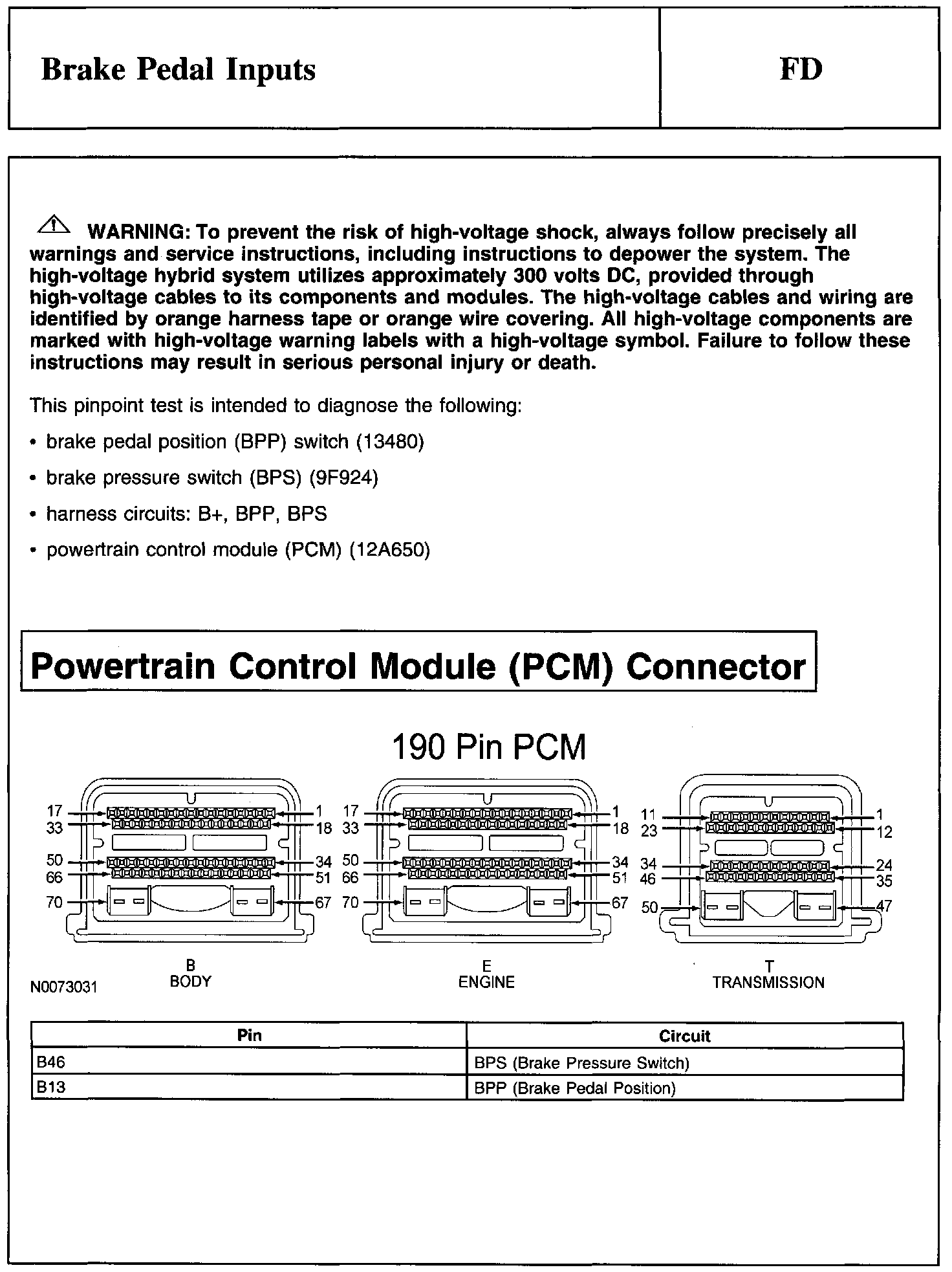

Warning And Powertrain Control Module (PCM) Connector:

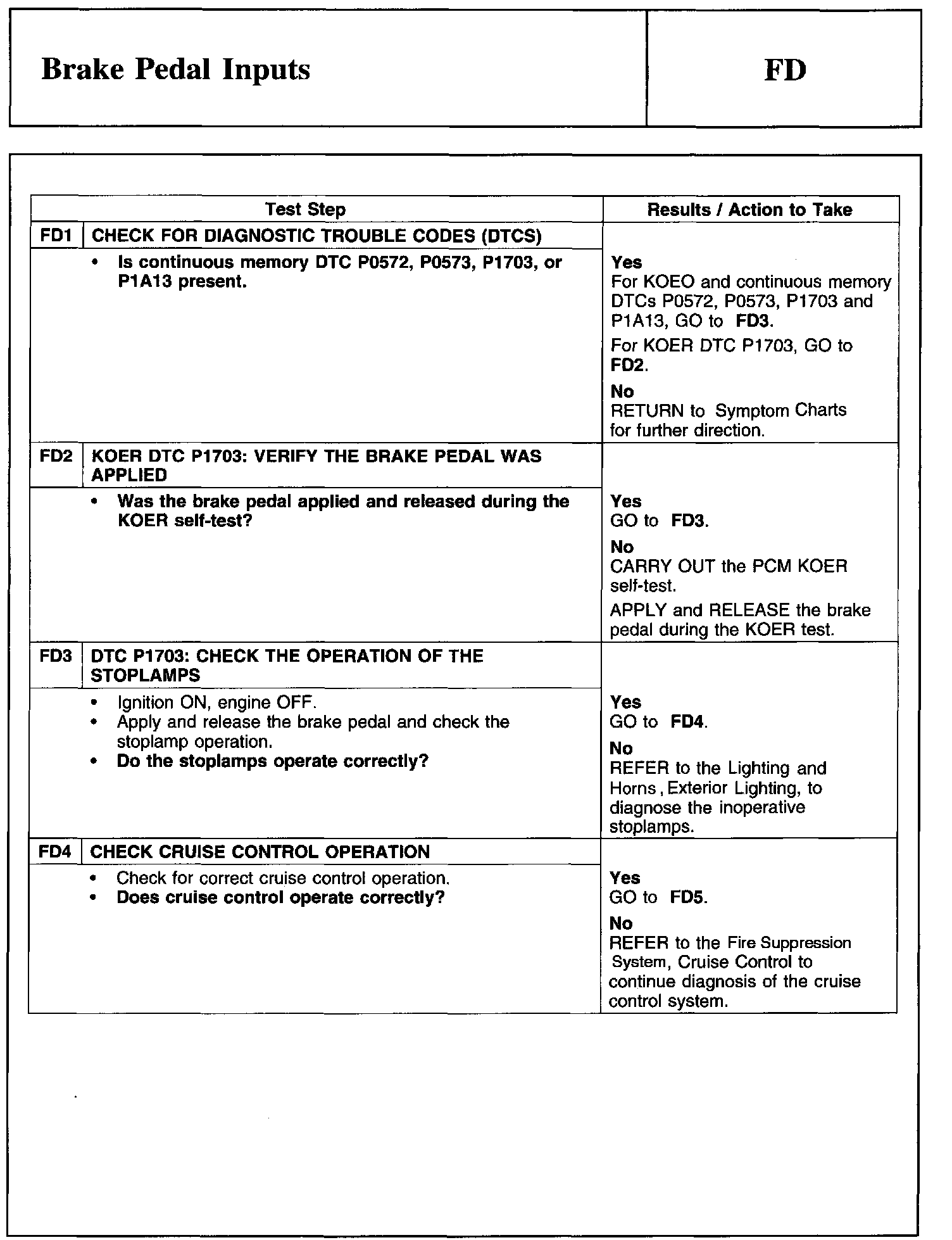

FD1-FD4:

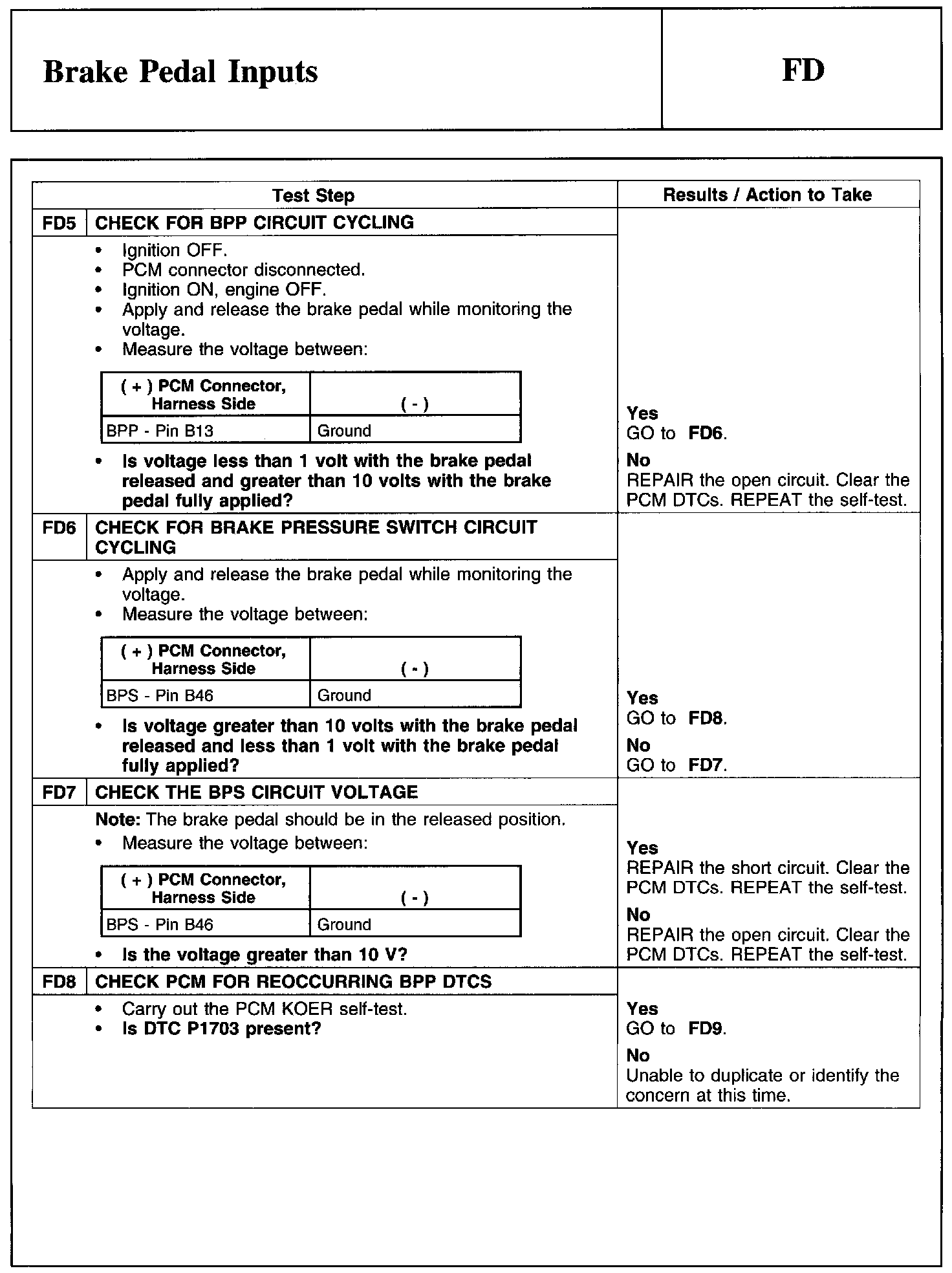

FD5-FD8:

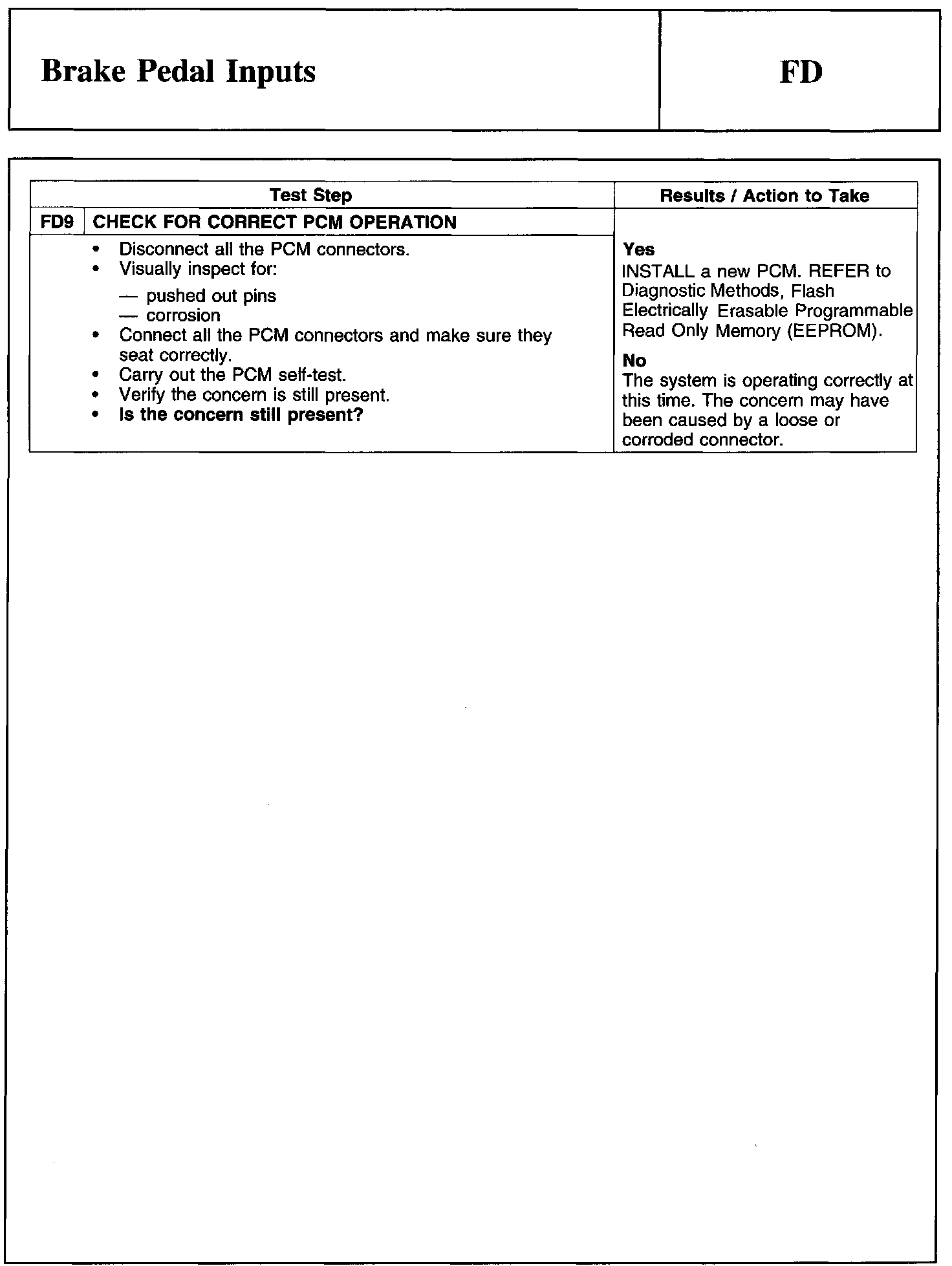

FD9:
