Home
>>
Mercury
>>
2011
>>
Mariner 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
System Diagram
Transaxle

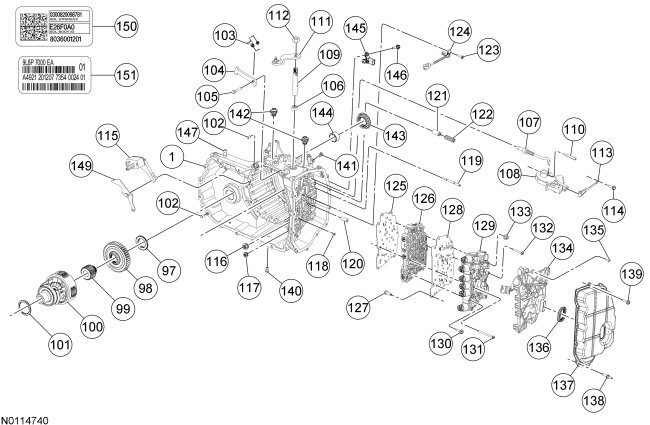

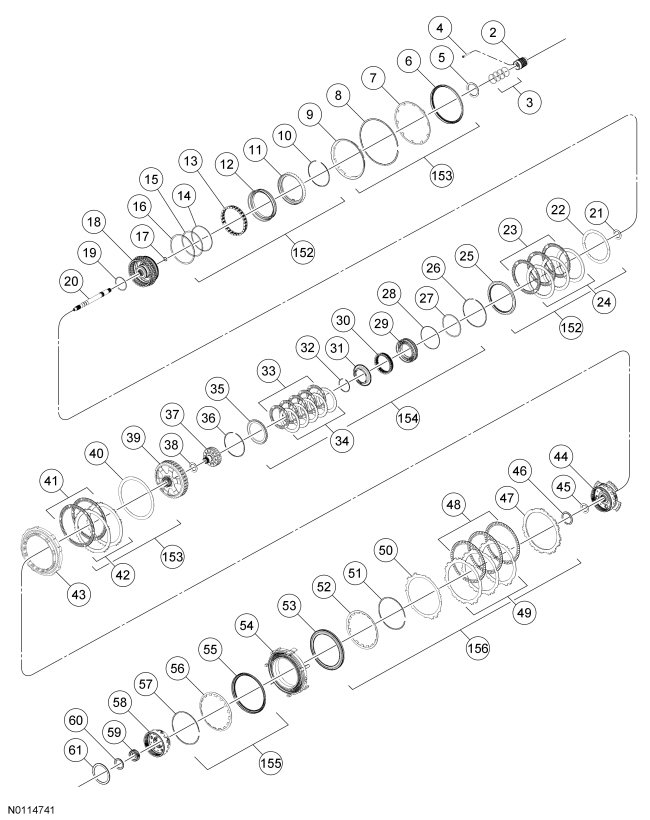

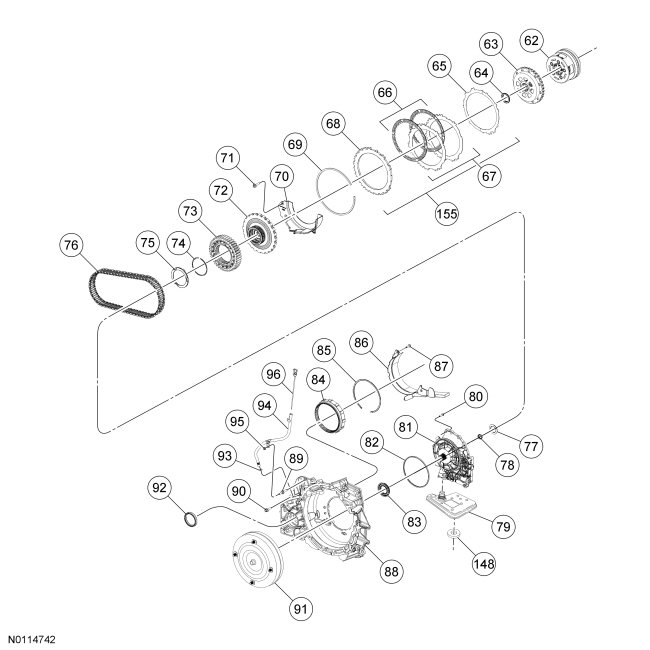

Disassembled Views
