Mercury
>>
2011
>>
Mariner 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ambient Light Sensor
>>

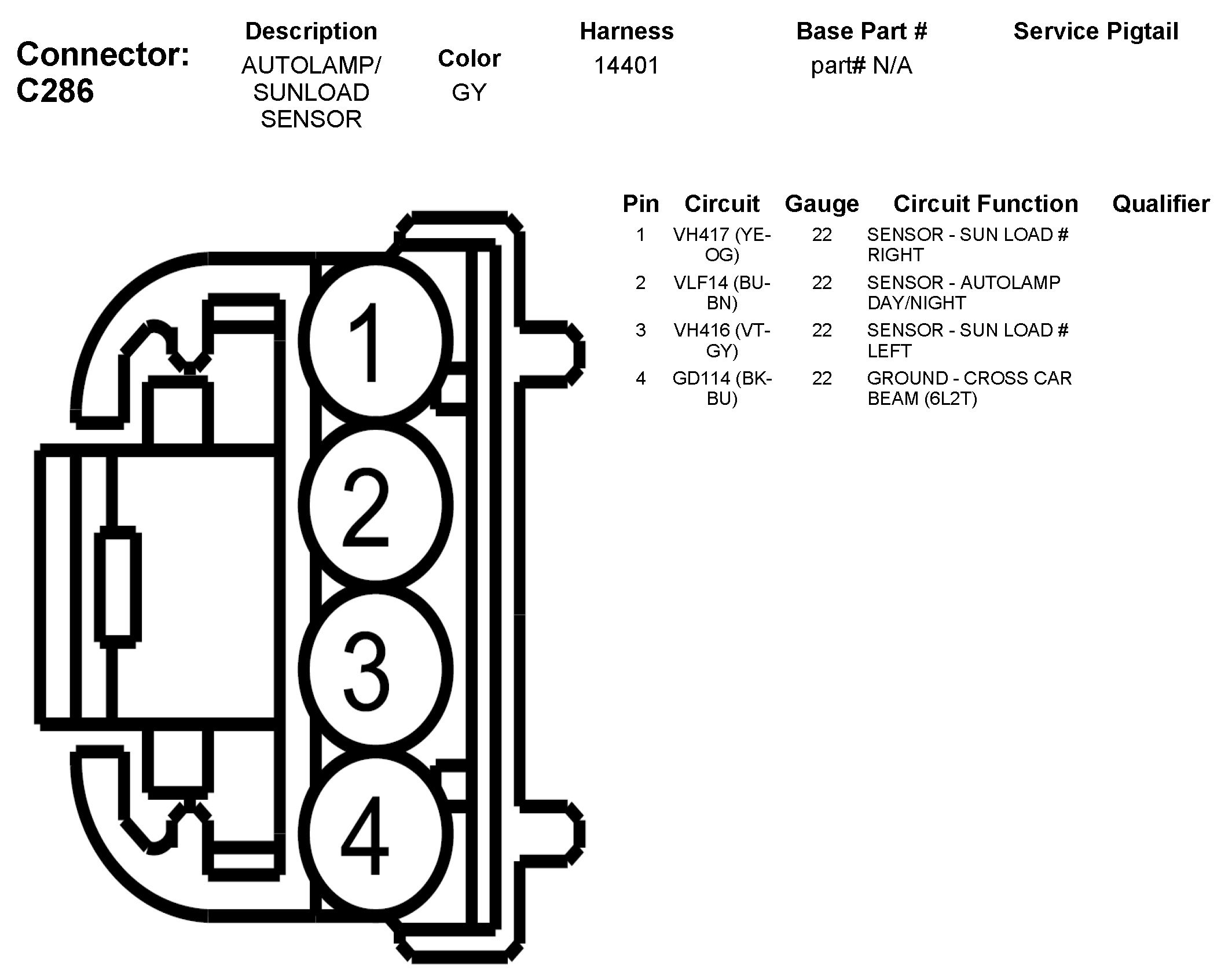

C286 Autolamp/Sunload Sensor
C286 Autolamp/Sunload Sensor
