Oil Filter, Engine

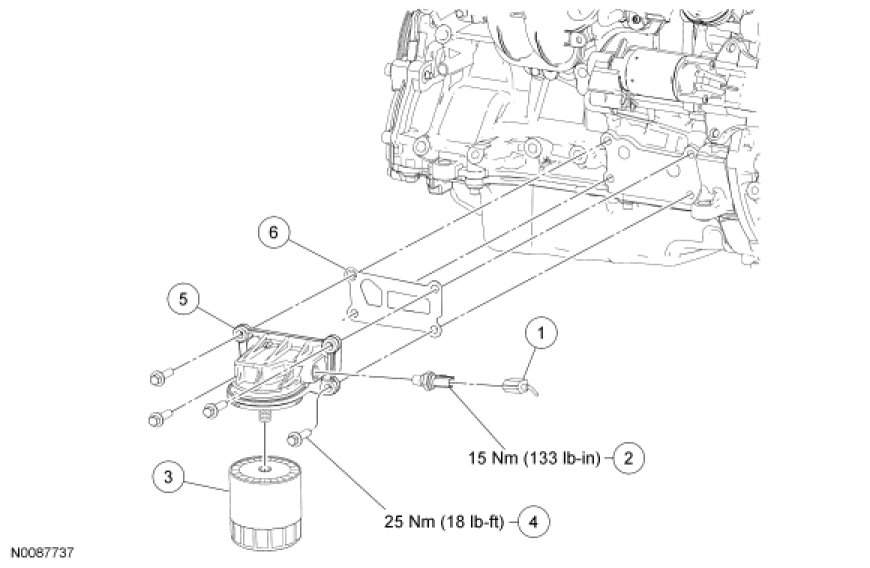

Engine Lubrication Components - Exploded View

Oil Filter Adapter, Oil Filter and Engine Oil Pressure (EOP) Switch
