Mercury
>>
2011
>>
Mariner 2WD L4-2.5L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>

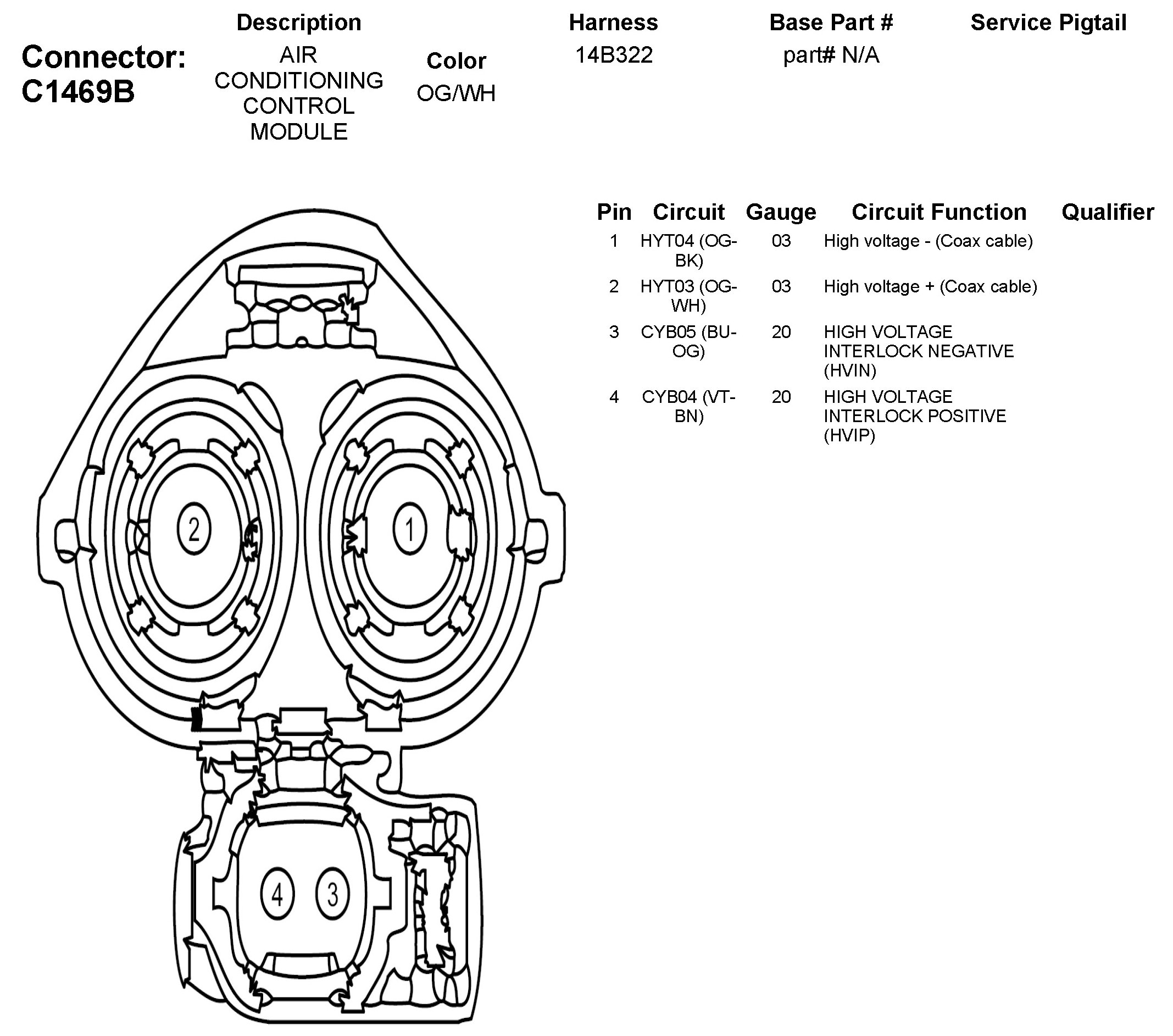

C1469B Air Conditioning Control Module
C1469B Air Conditioning Control Module
