Home >> Mercury >> 2011 >> Mariner 2WD L4-2.5L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module >> C2041A Restraints Control Module (RCM)

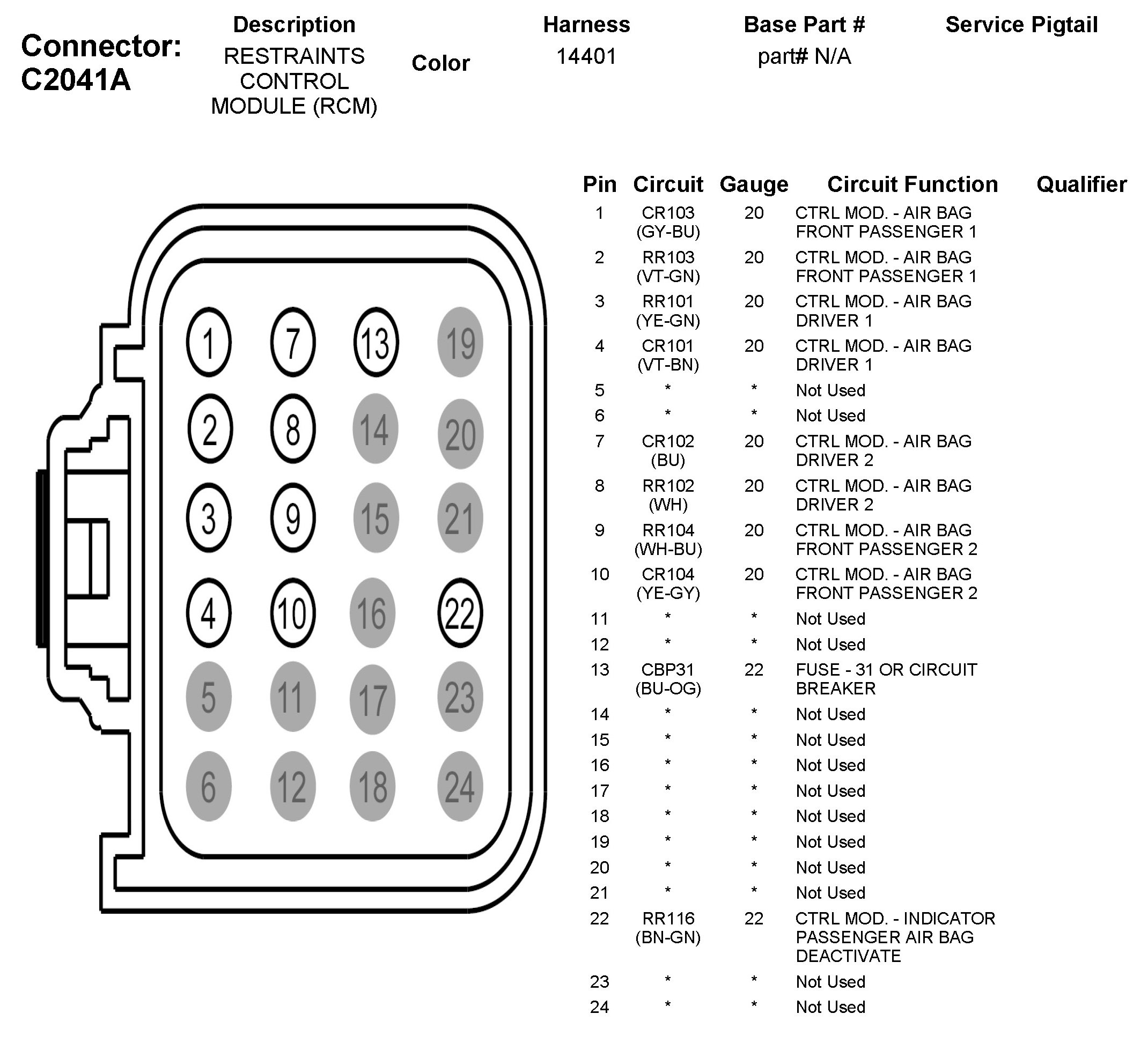

C2041A Restraints Control Module (RCM)
