Home >> Mercury >> 2010 >> Mountaineer AWD V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Communications Control Module >> Accessory Protocol Interface Module (APIM)

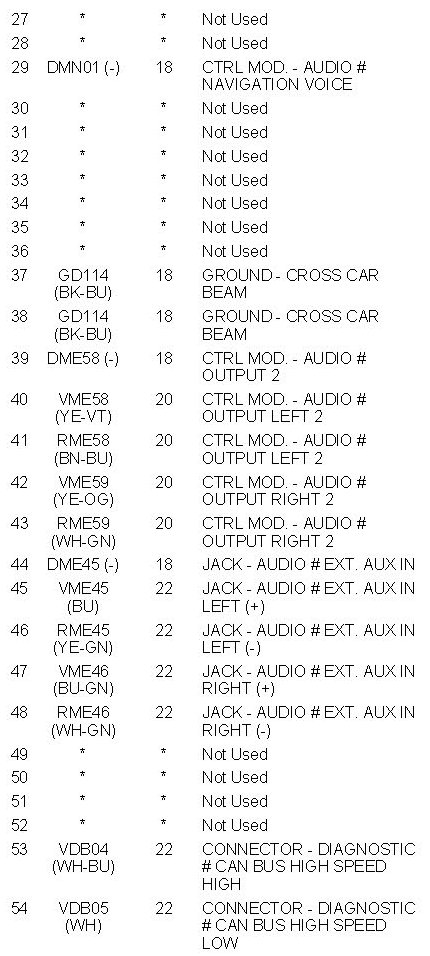

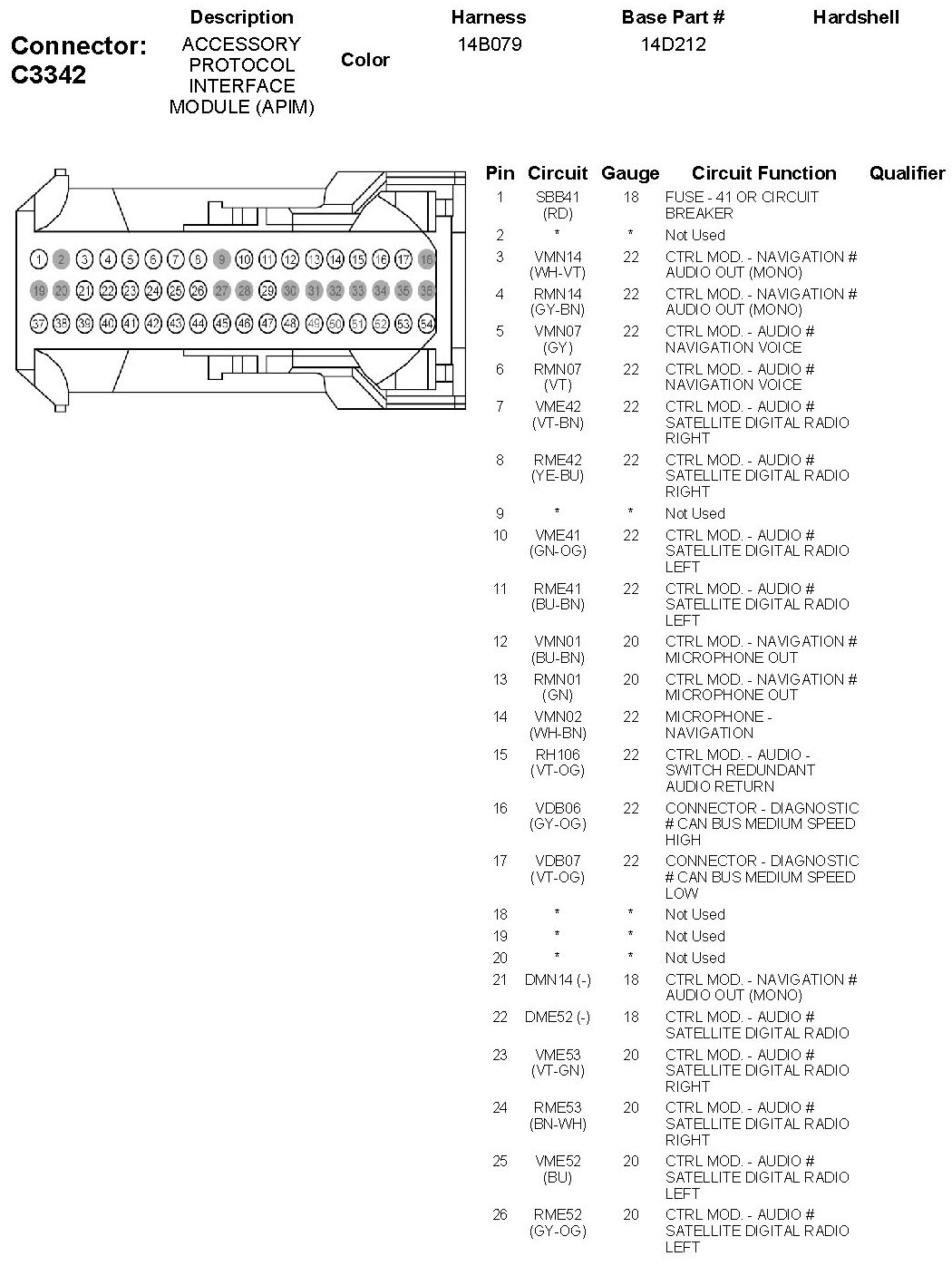

Accessory Protocol Interface Module (APIM)
