Home >> Mercury >> 2010 >> Mountaineer AWD V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module >> Restraints Control Module (RCM)

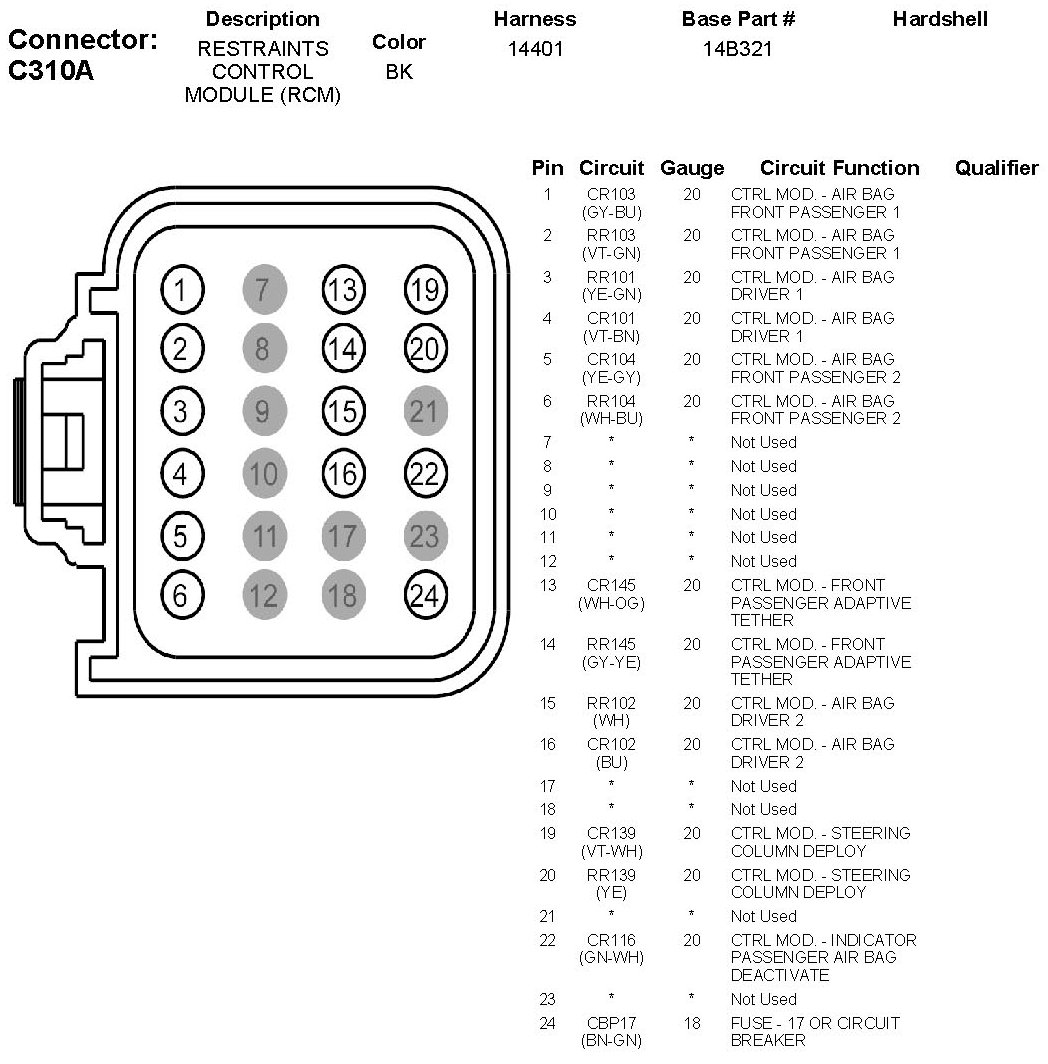

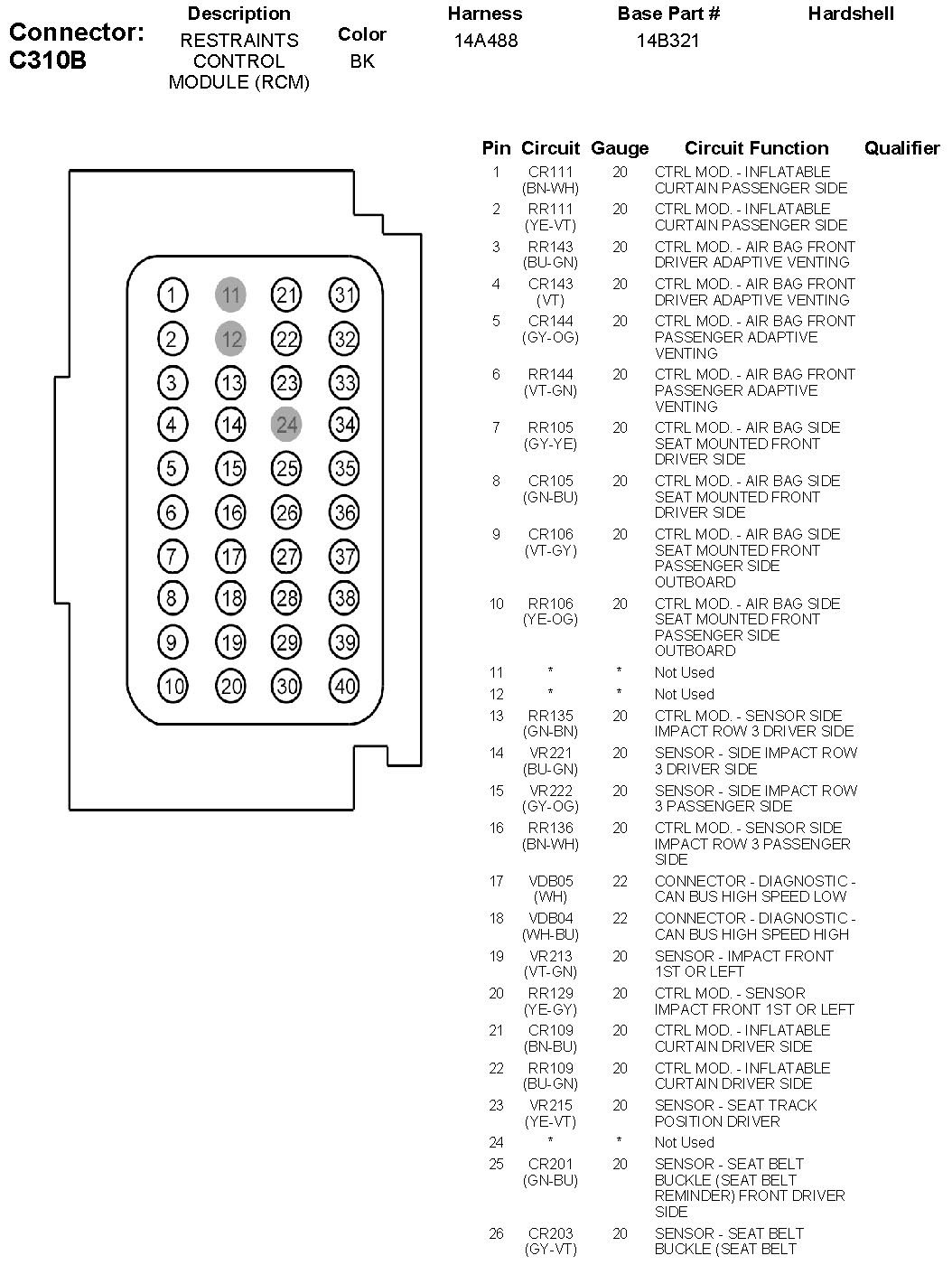

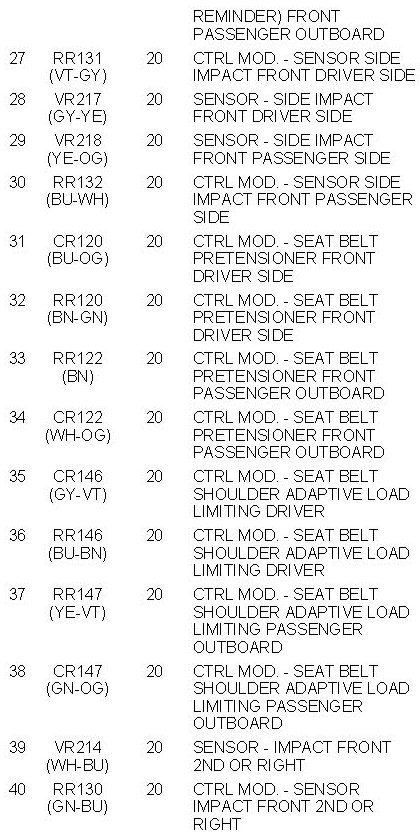

Restraints Control Module (RCM)
