Reference Value Parameter Identification (PID)/Measured Signal Chart

REFERENCE VALUE PARAMETER IDENTIFICATION (PID)/MEASURED SIGNAL CHART

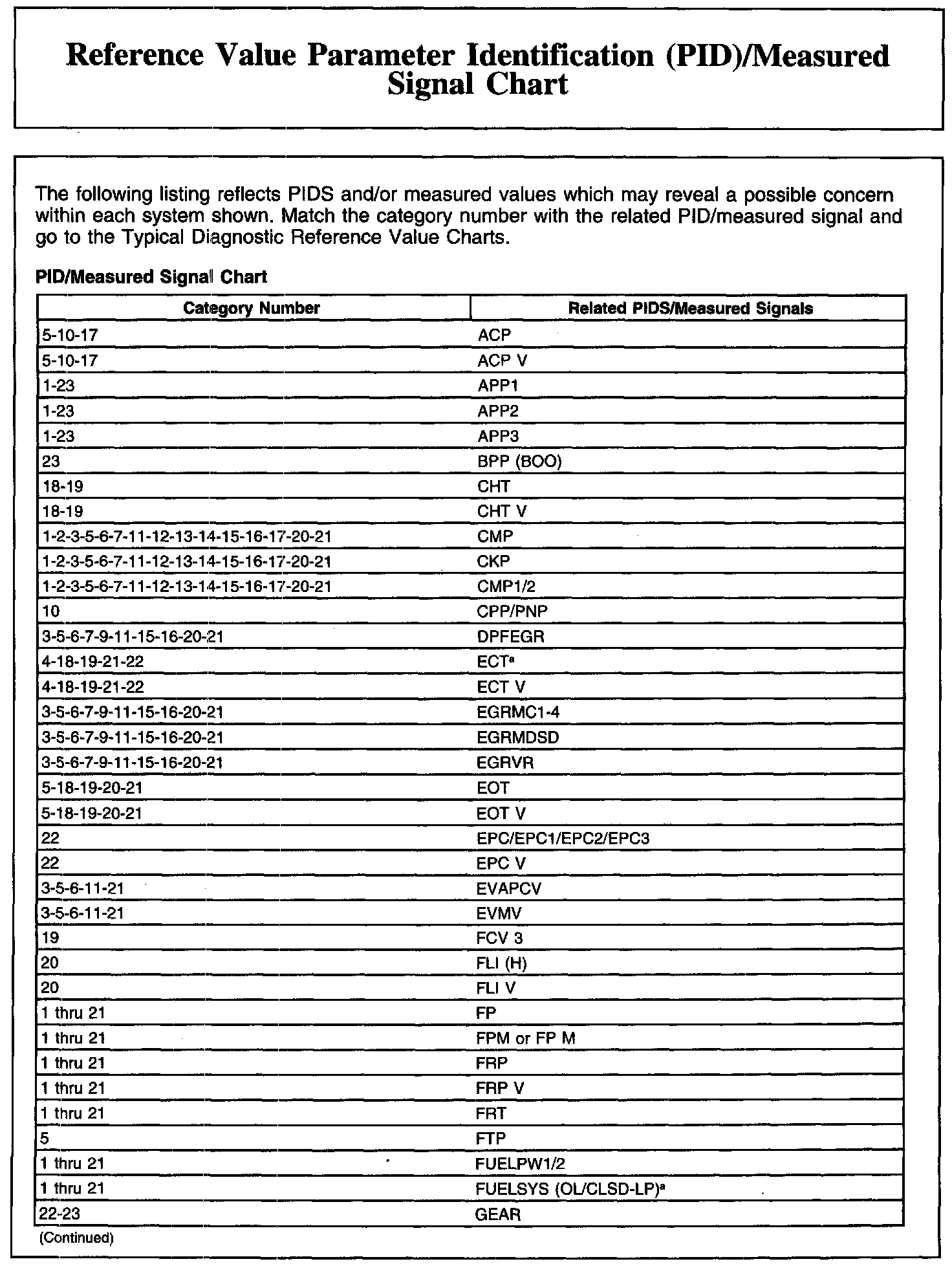

Reference Value Parameter Identification (PID)/Measured Signal Chart (Part 1):

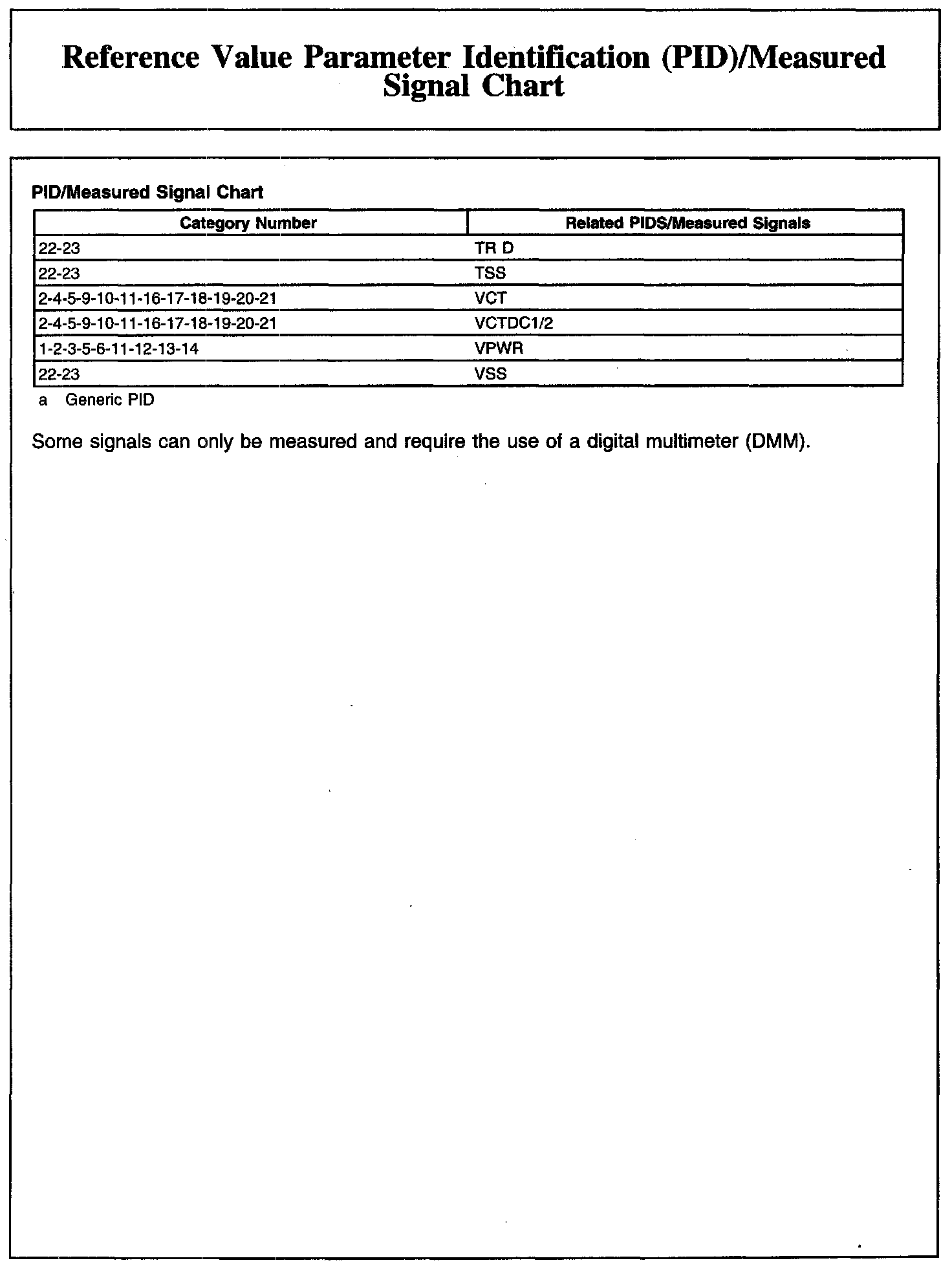

Reference Value Parameter Identification (PID)/Measured Signal Chart (Part 2):

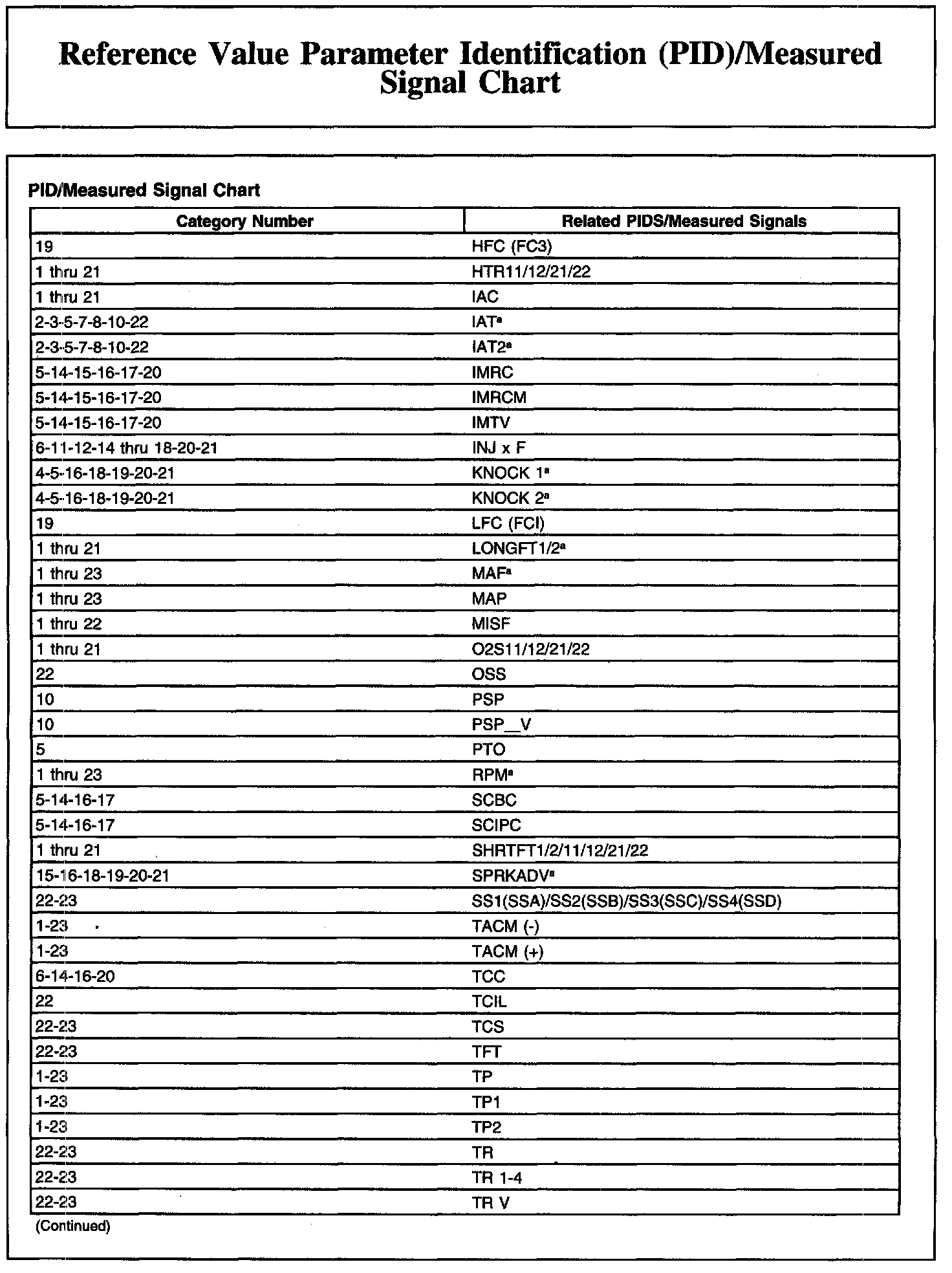

Reference Value Parameter Identification (PID)/Measured Signal Chart (Part 3):
