Home >> Mercury >> 2010 >> Mariner 2WD L4-2.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Front Door Window Motor

Front Door Window Motor

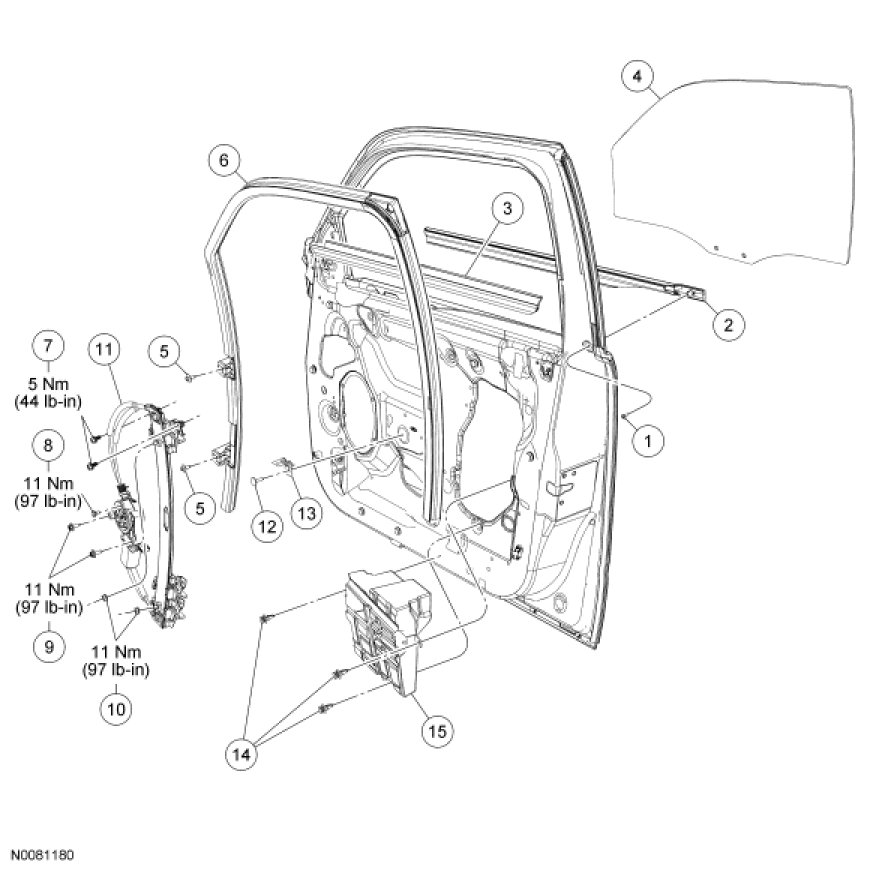

Glass, Frames and Mechanisms - Exploded View, Front Door
