Bumper - Exploded View, Front

Bumper - Exploded View, Front

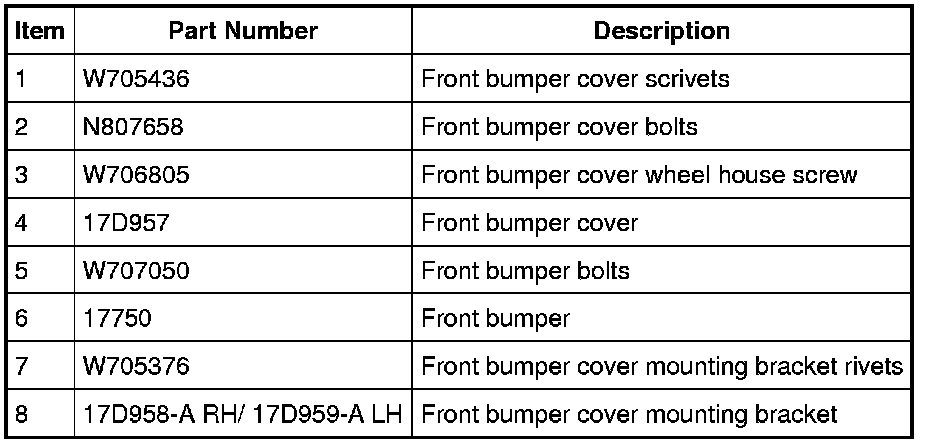

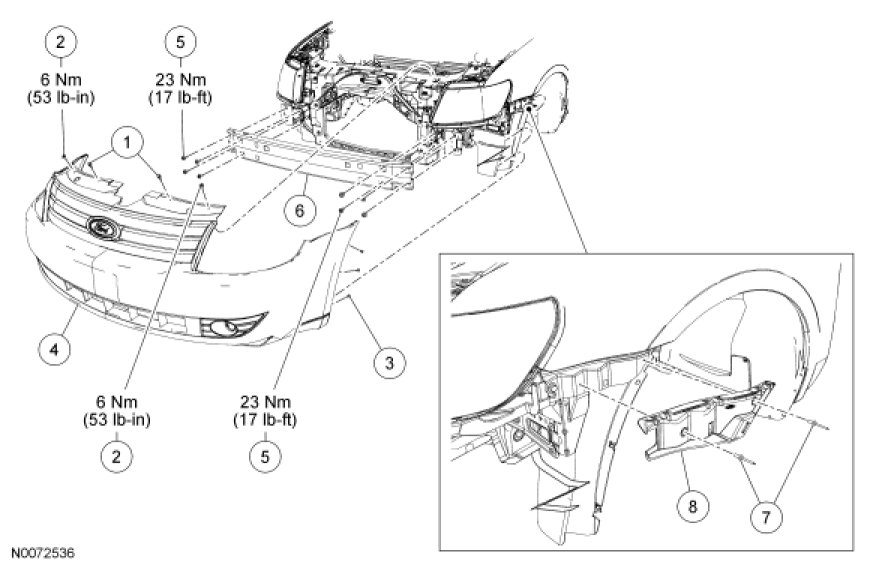

Taurus, Sable

NOTE: Taurus shown, Sable similar.

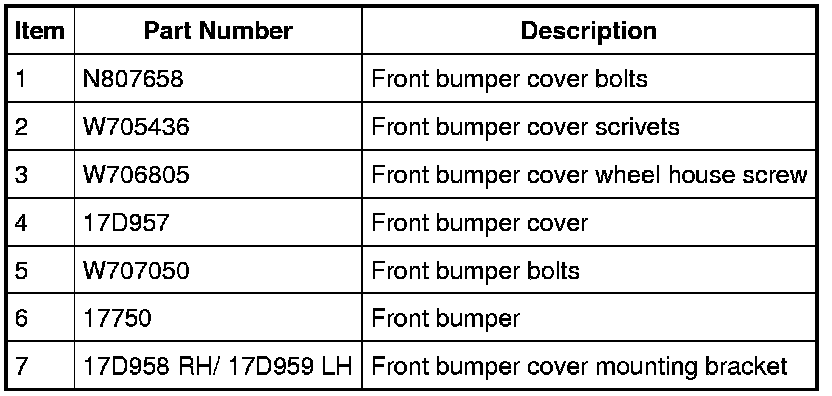

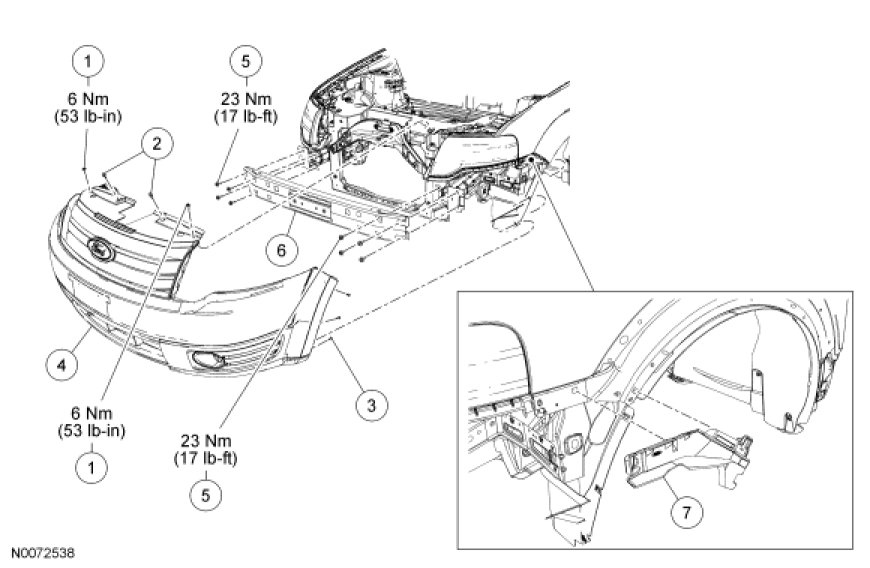

Taurus X

1. For additional information, refer to the procedures.
