Mercury
>>
2009
>>
Mountaineer AWD V6-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

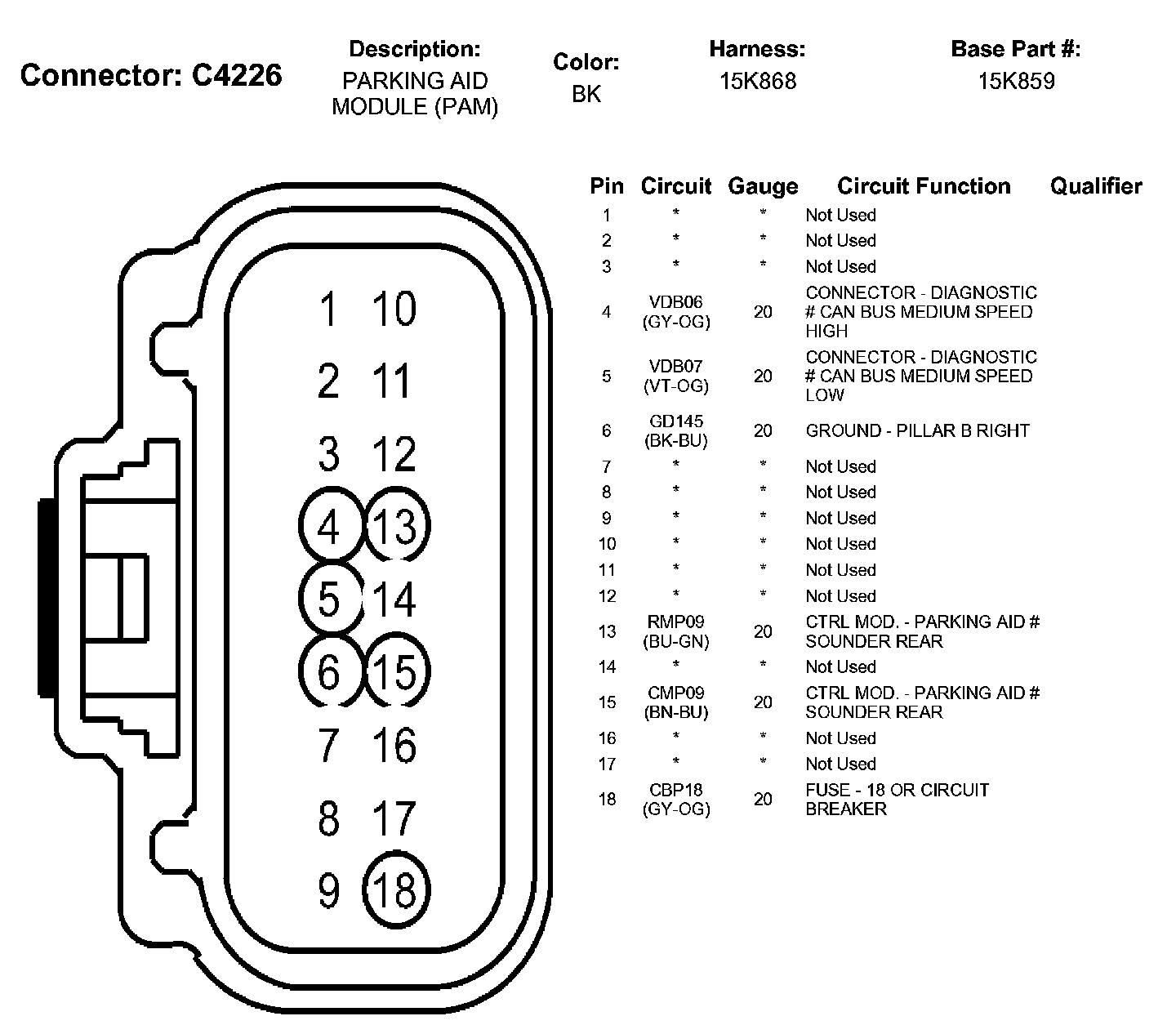

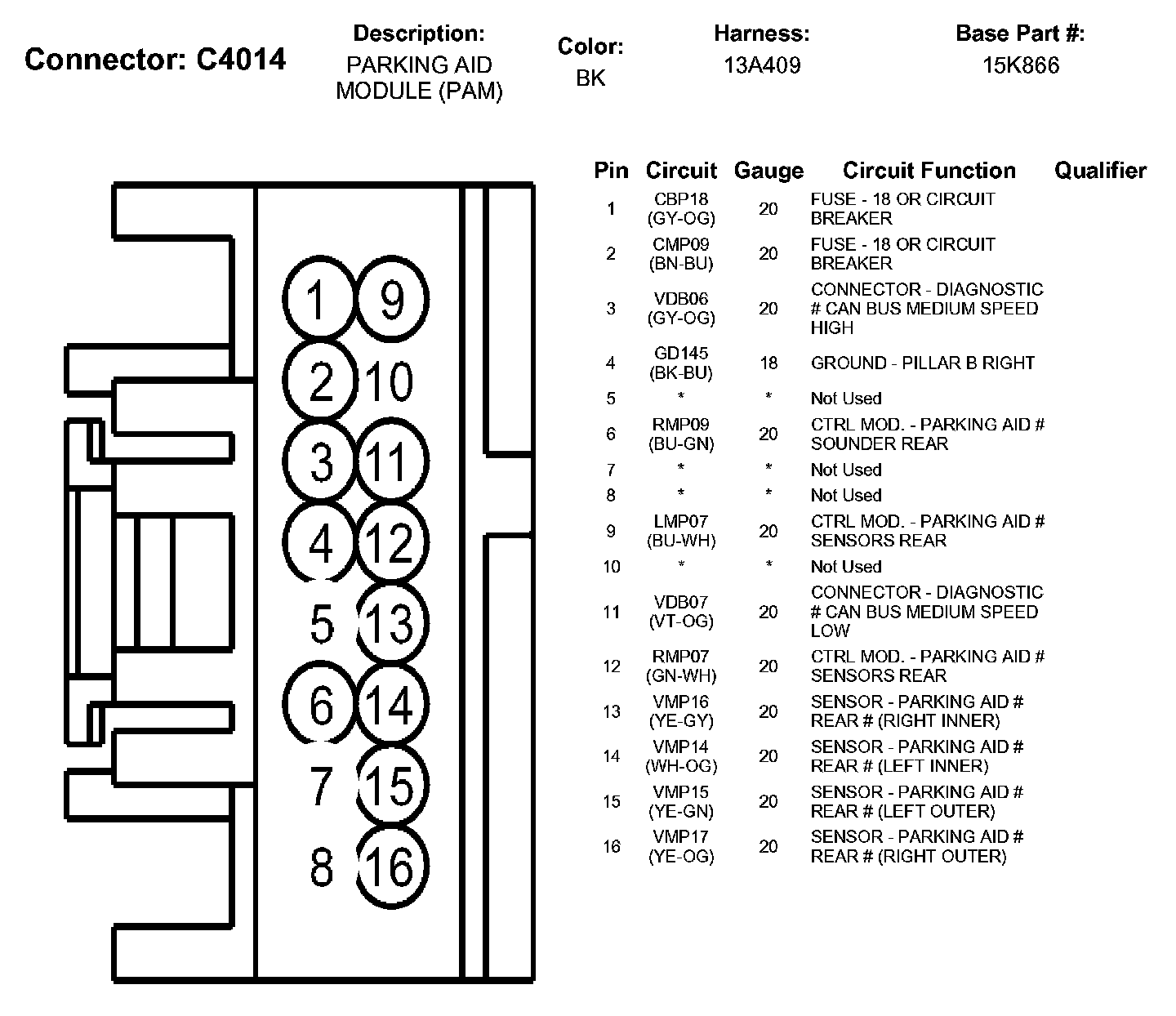

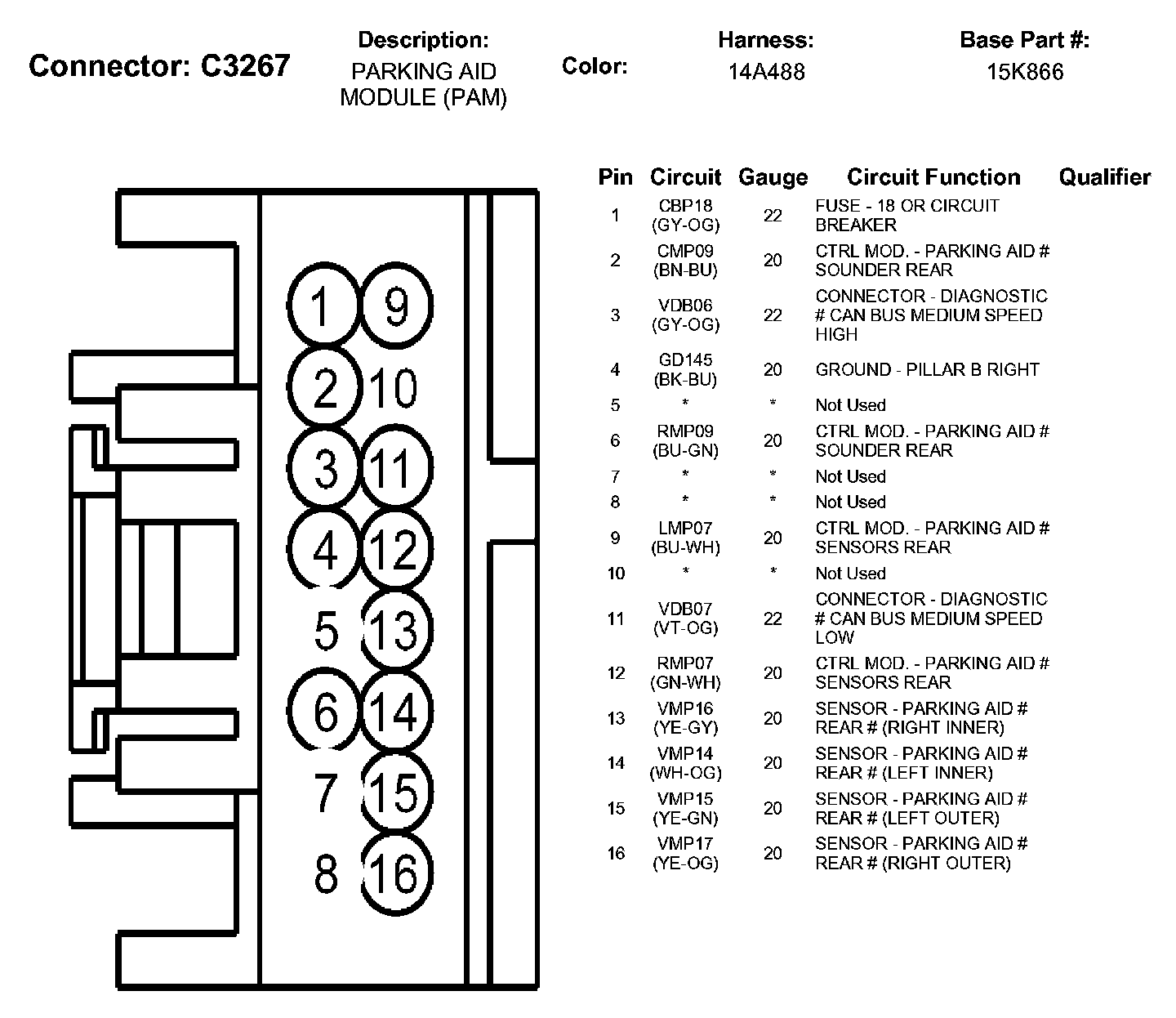

Parking Assist Control Module
Parking Assist Control Module
