Engine Control Module

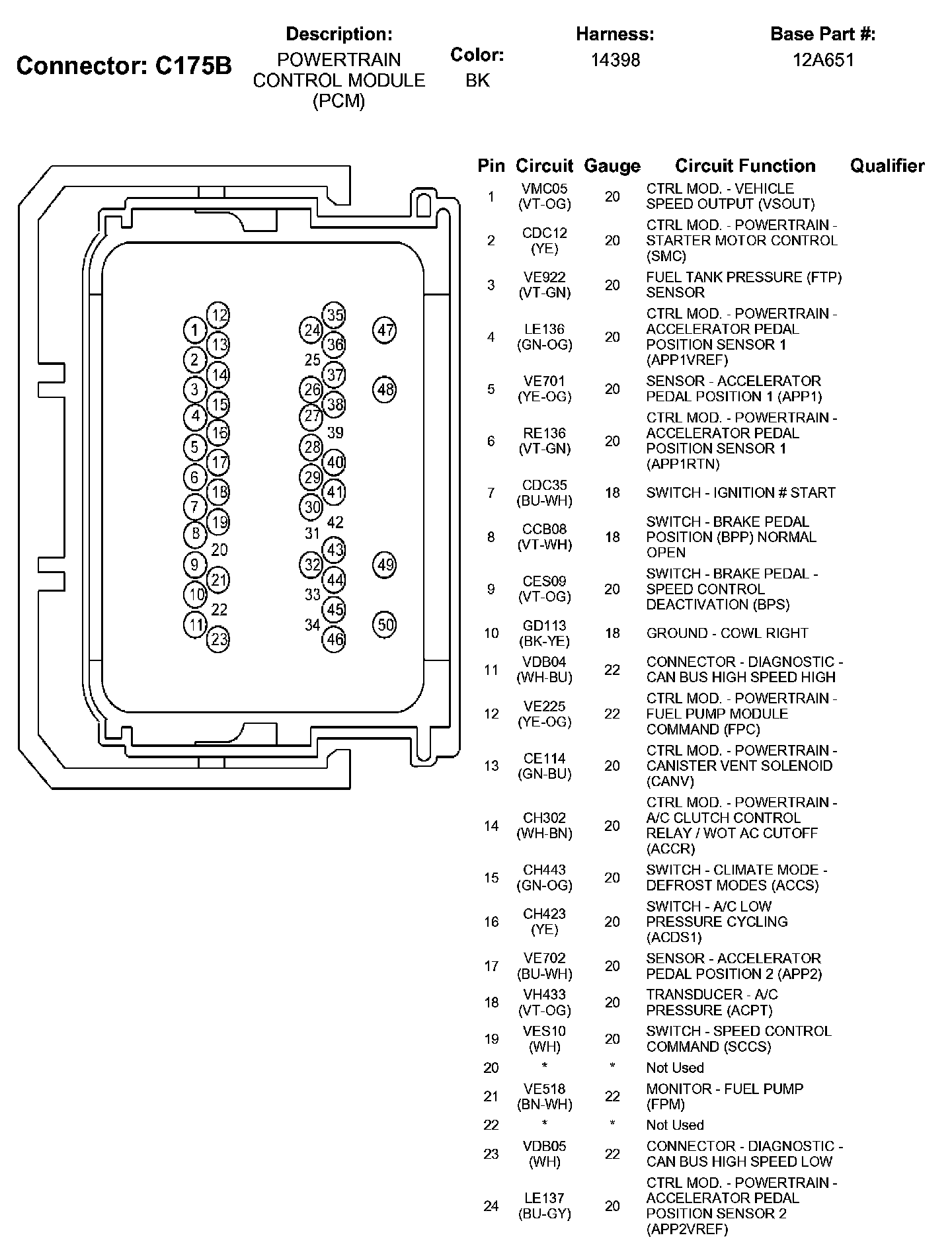

C175B Part 1:

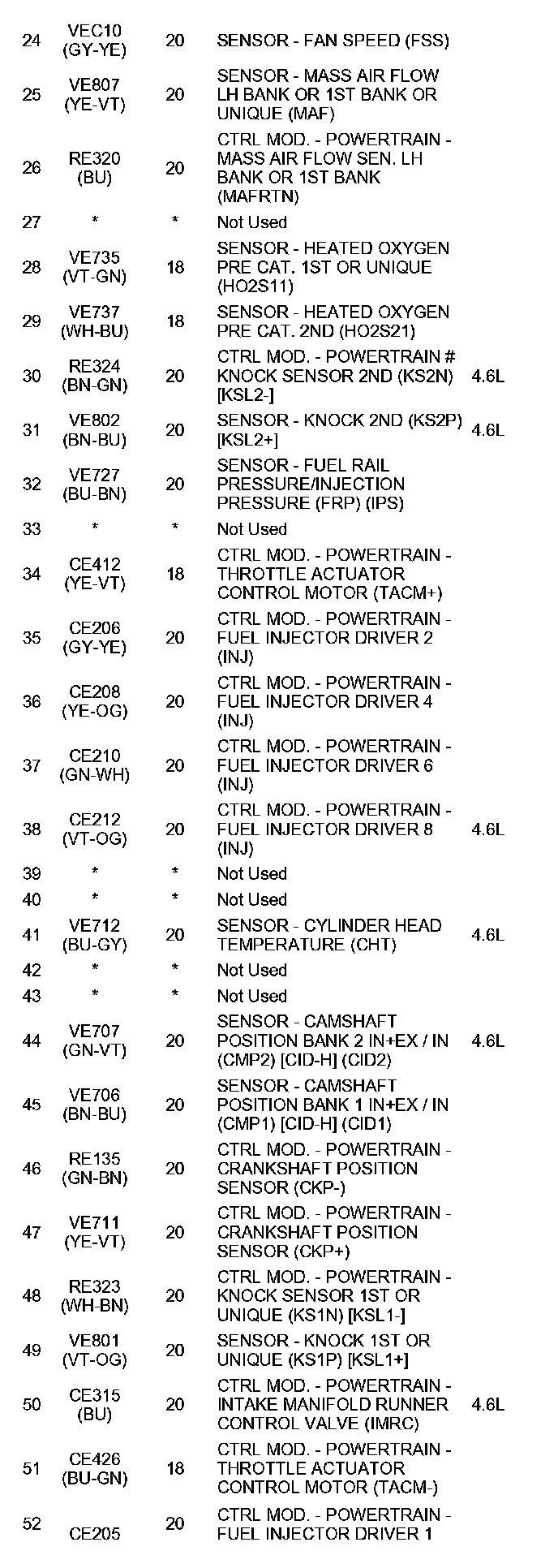

C175B Part 2:

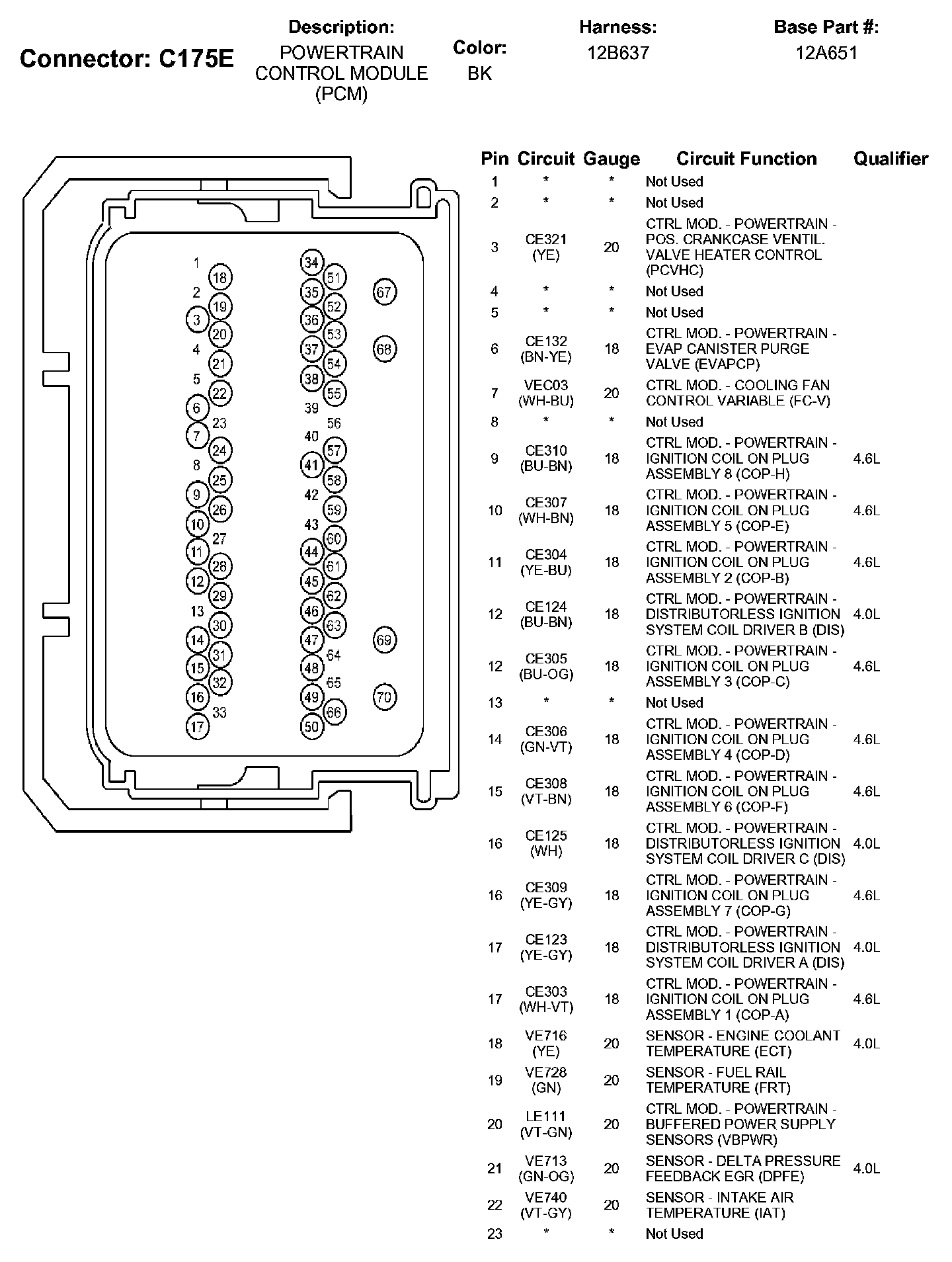

C175E Part 1:

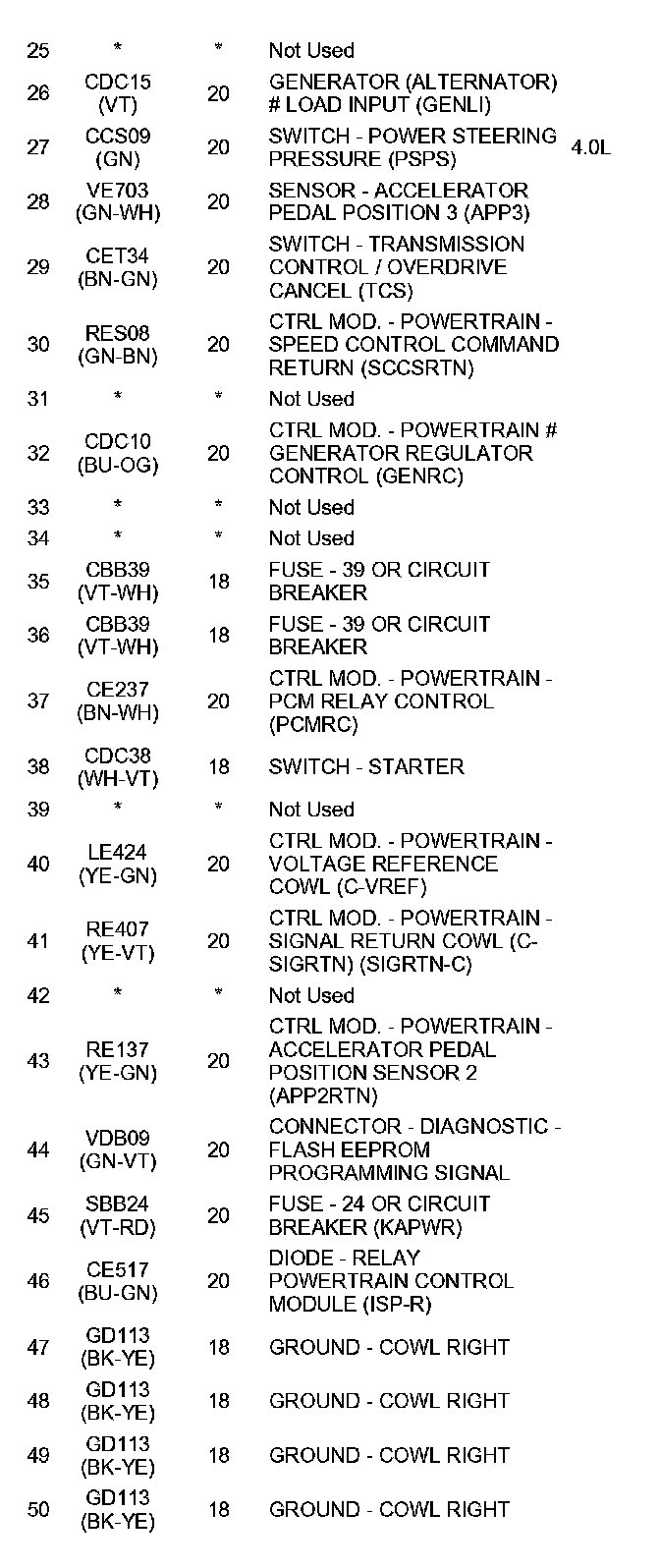

C175E Part 2:

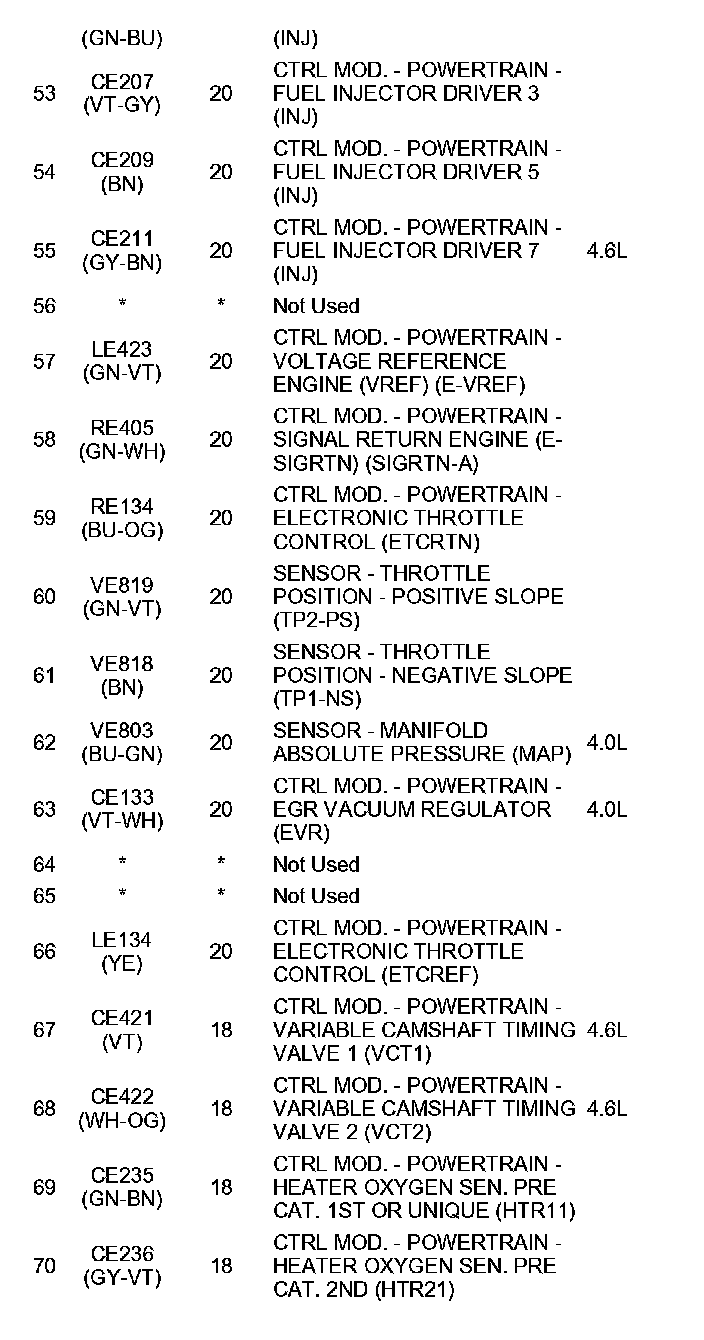

C175E Part 3:

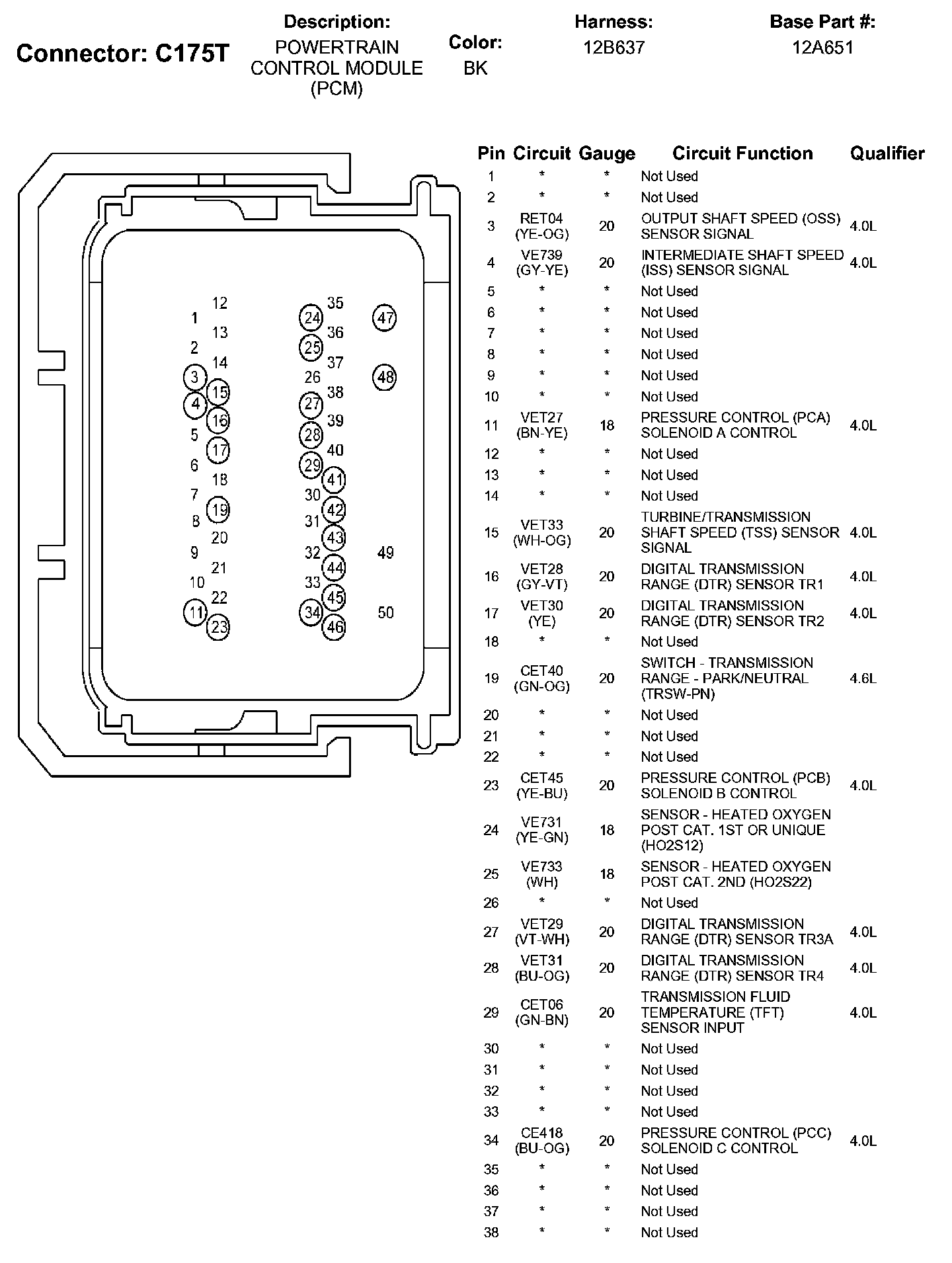

C175T Part 1:



C175T Part 2:
