Mercury
>>
2009
>>
Mountaineer AWD V6-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
Climate Control Assembly

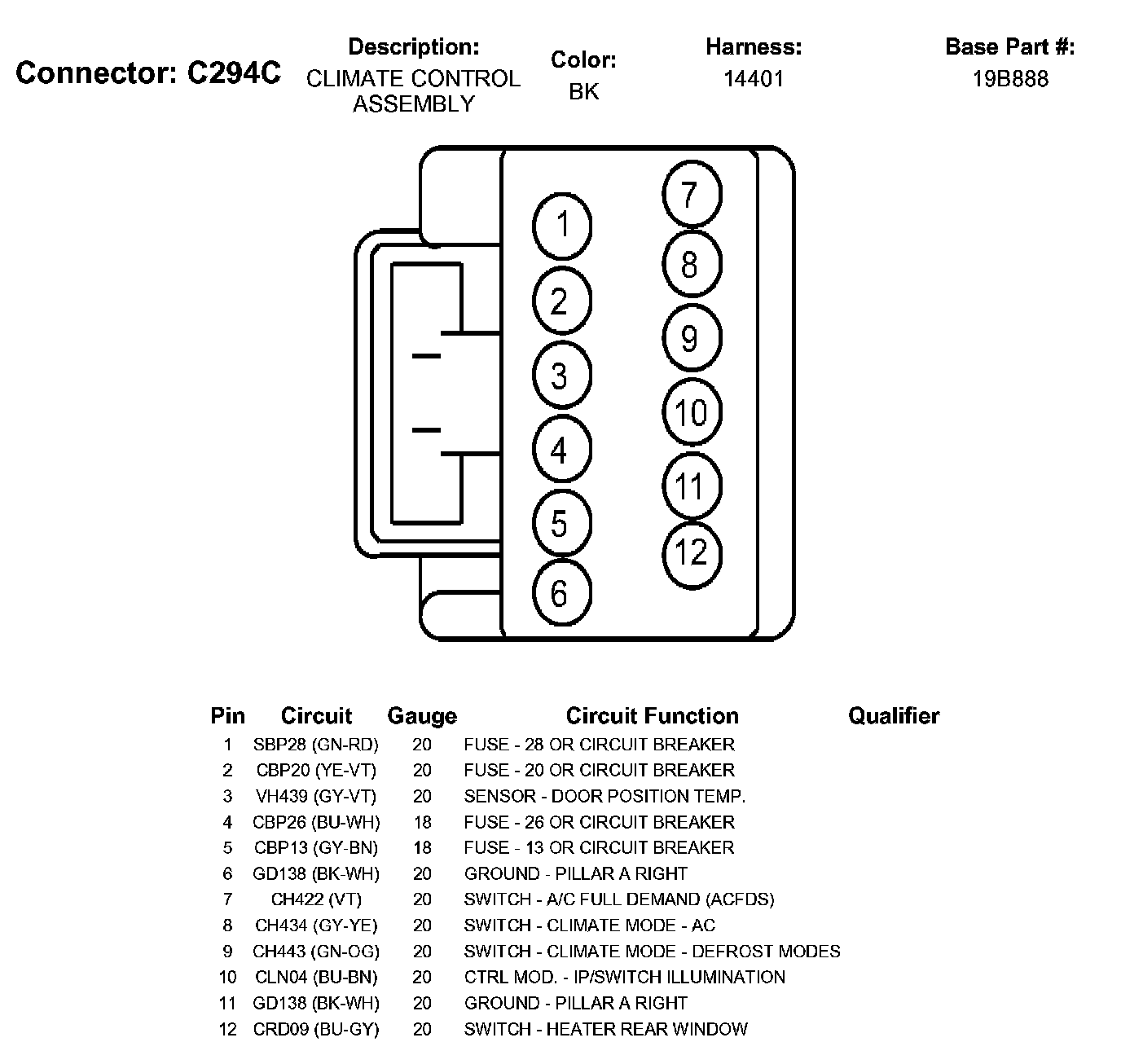

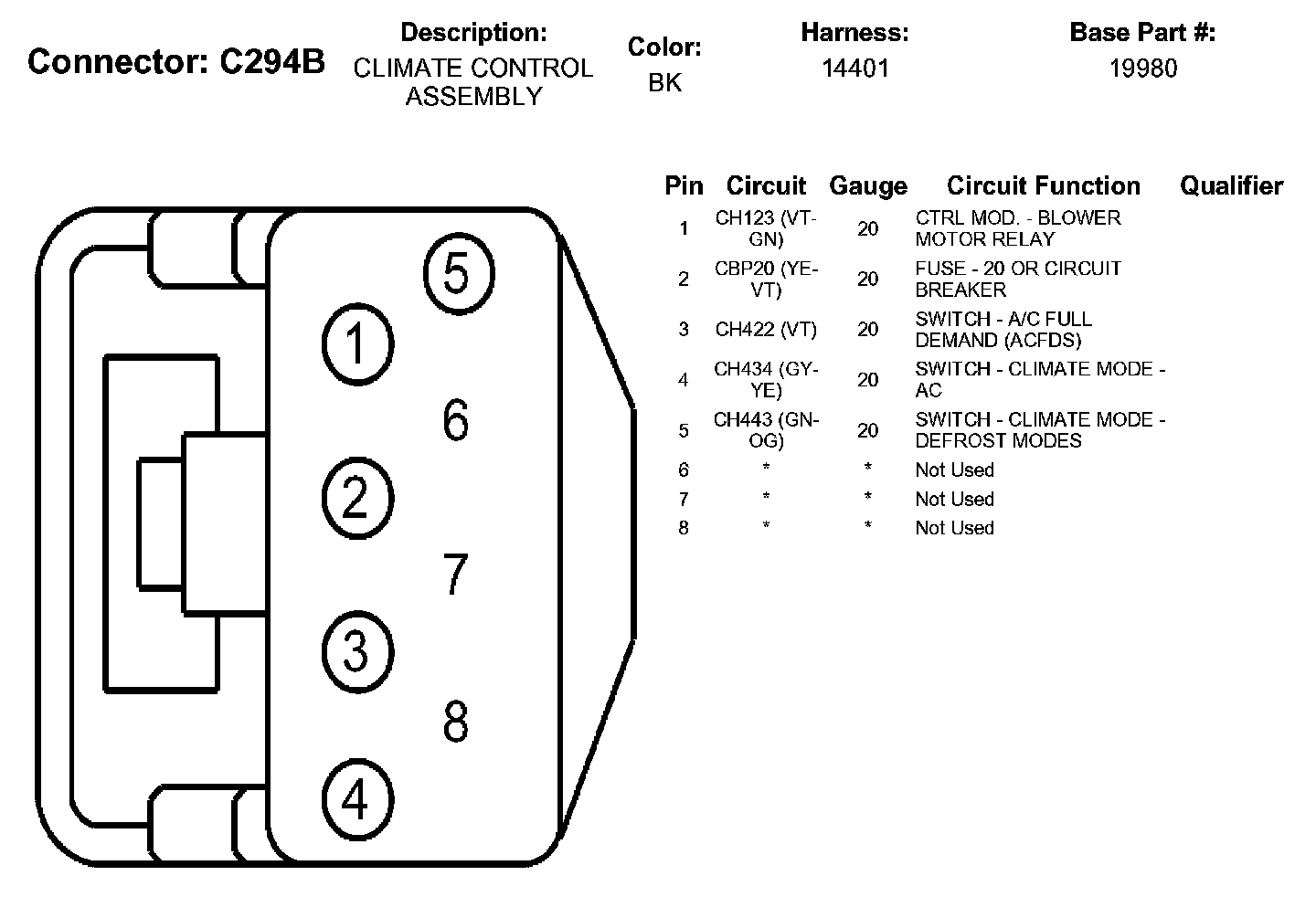

Climate Control Assembly
