Home >> Mercury >> 2009 >> Mariner 2WD L4-2.5L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Continuously Variable Transmission/Transaxle, CVT >> Control Module, CVT

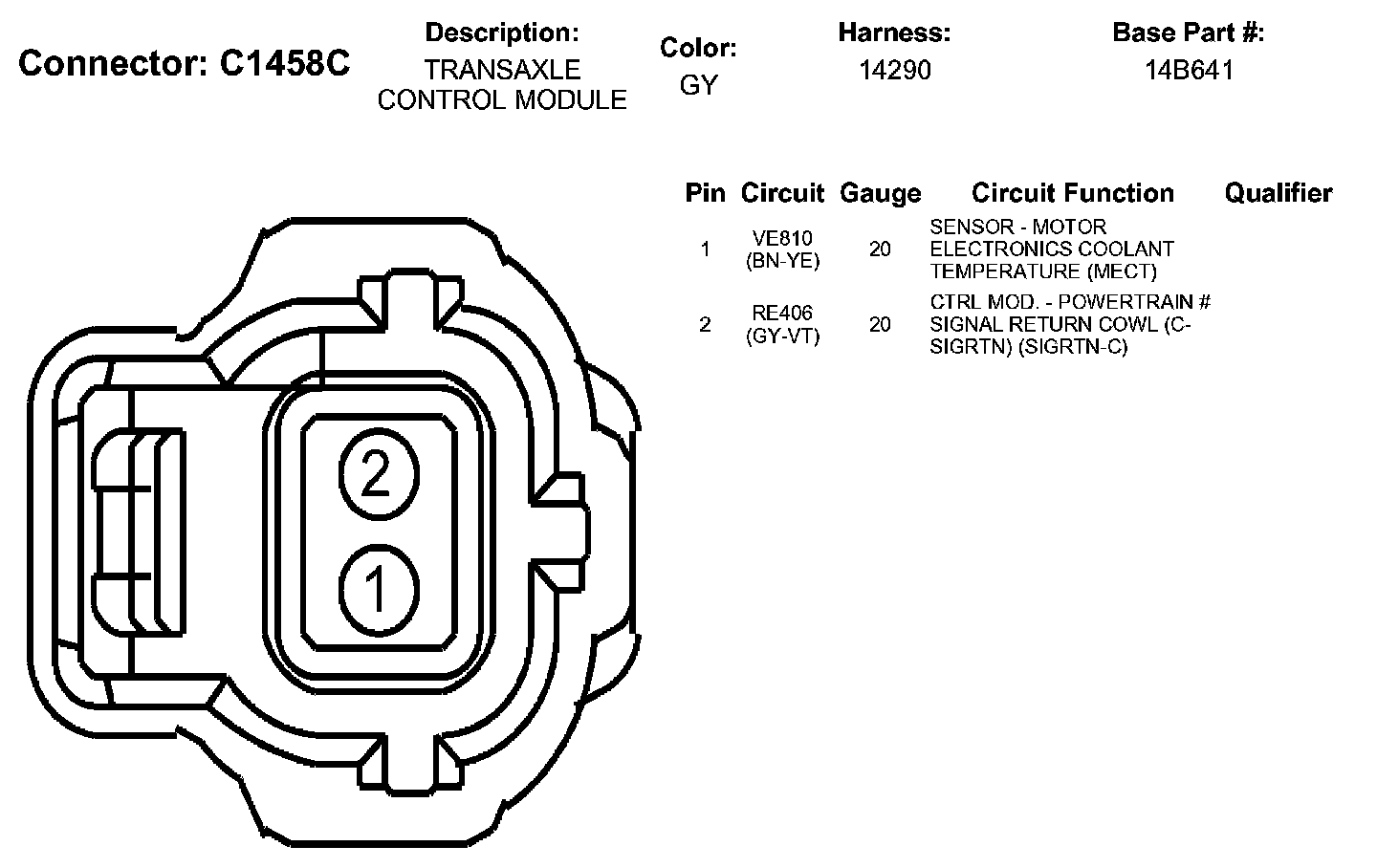

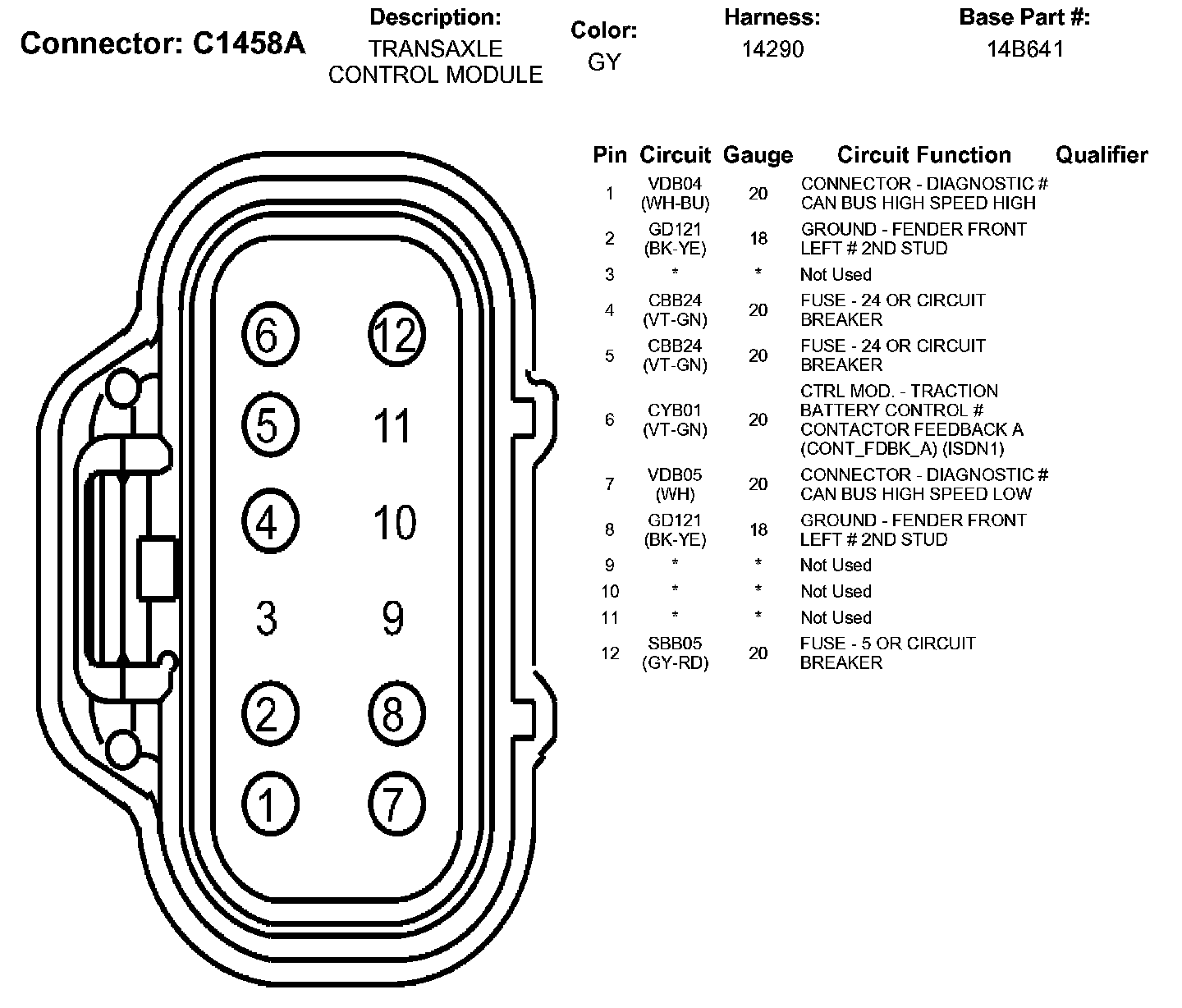

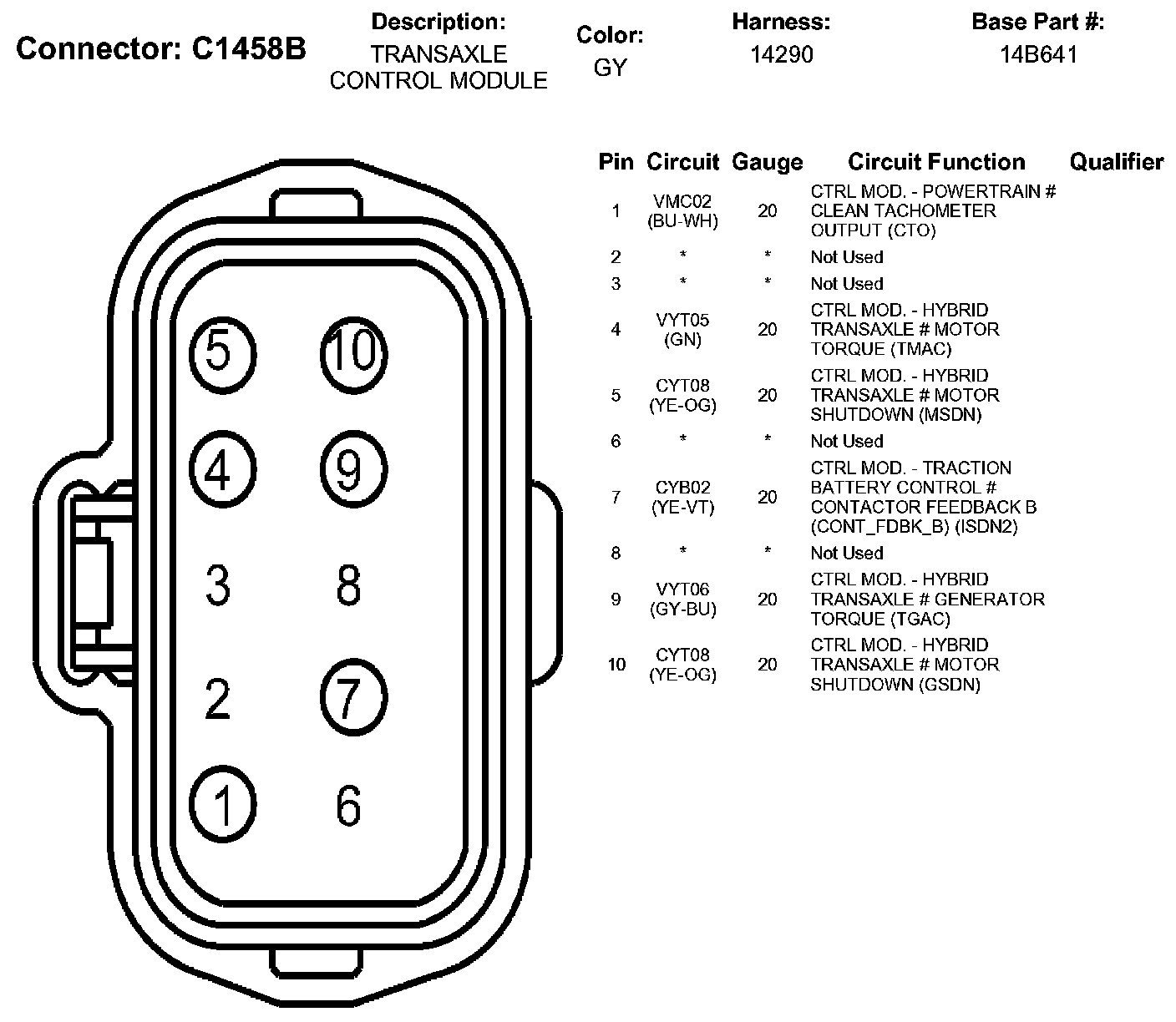

Control Module, CVT
