Home >> Mercury >> 2008 >> Sable AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C140

C140

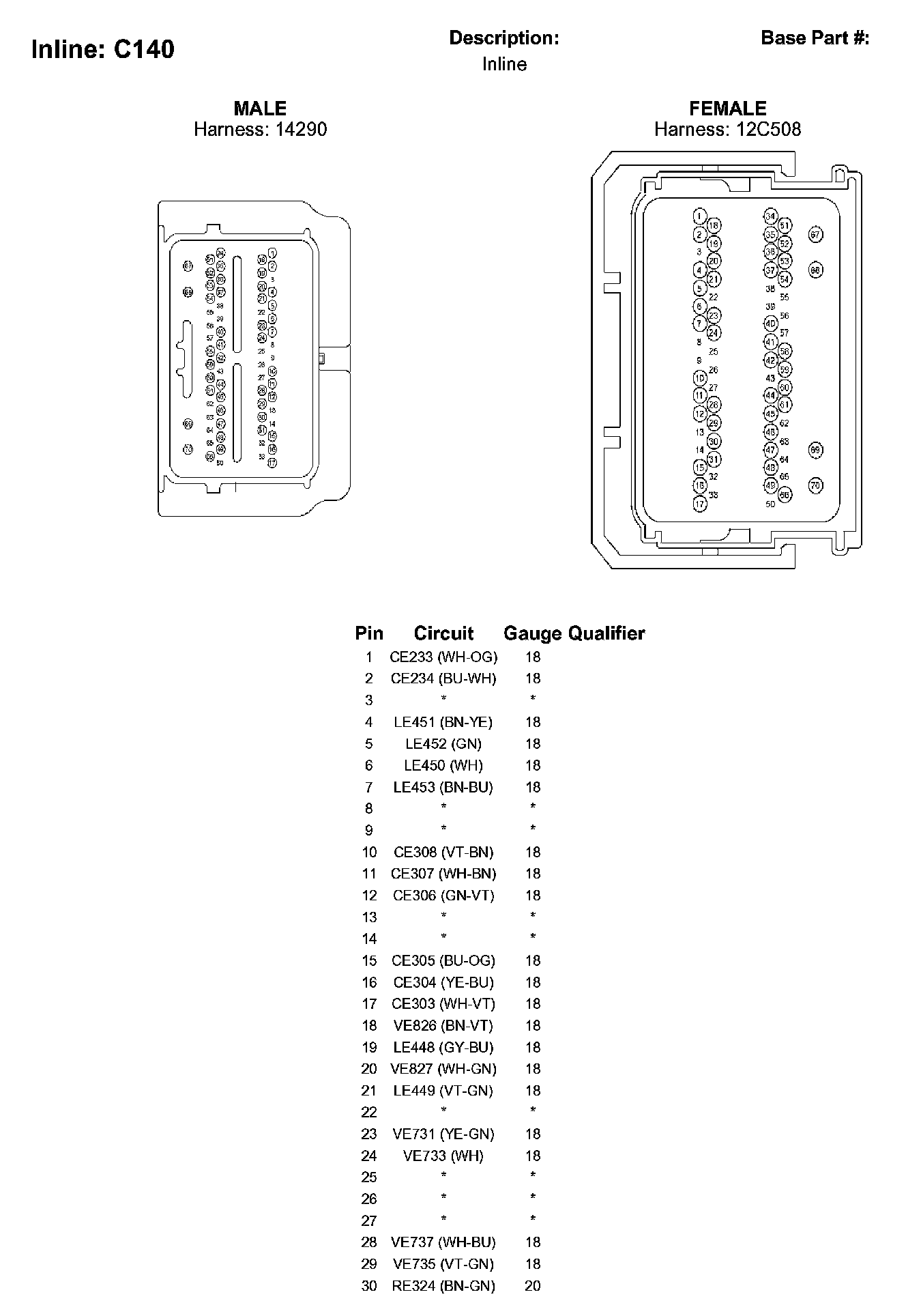

C140 (Part 1):



C140 (Part 2):
