Home >> Mercury >> 2008 >> Mountaineer AWD V8-4.6L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Cable >> Service and Repair

Ignition Cable: Service and Repair

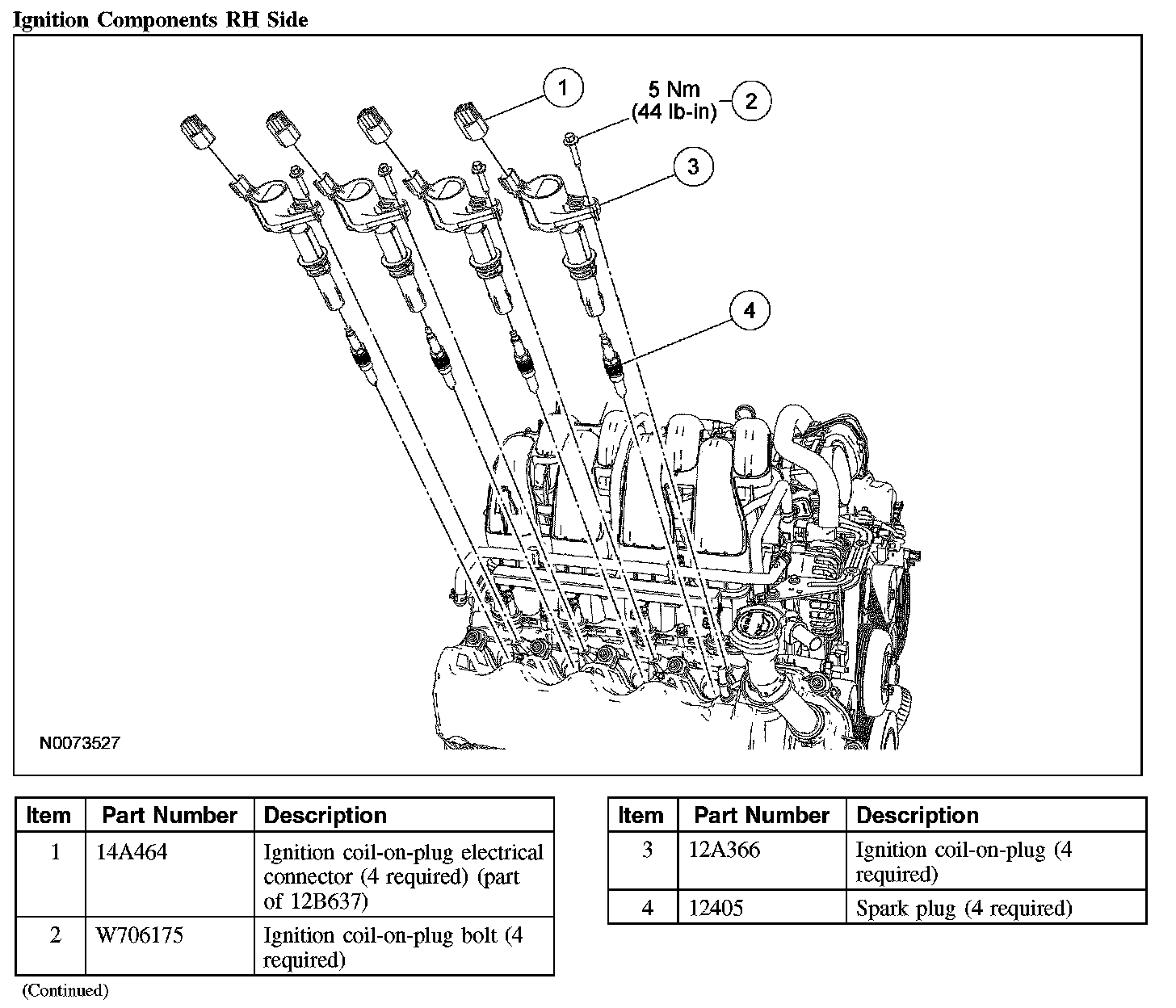

Ignition Components RH Side:

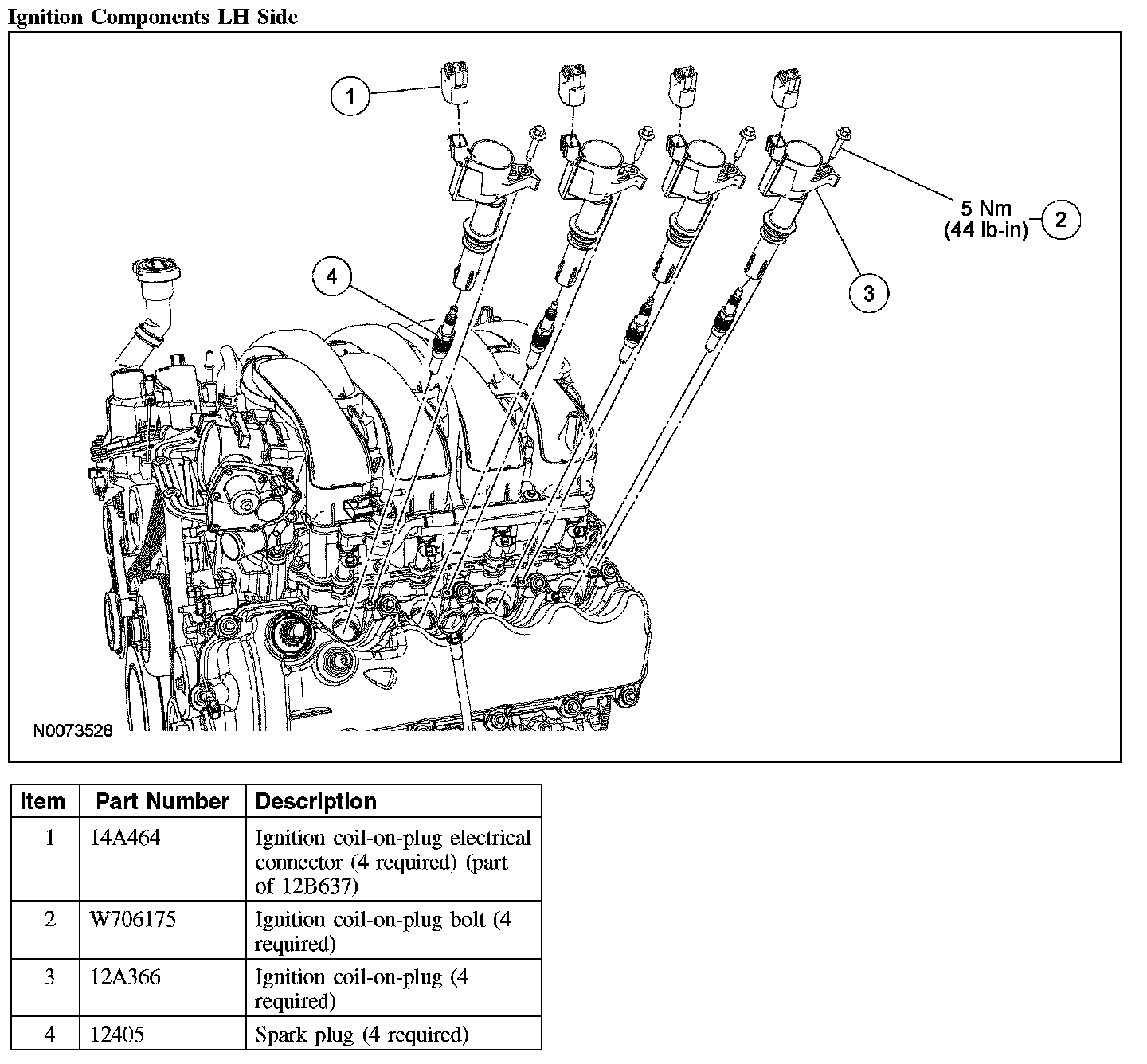

Ignition Components LH Side:
