Home >> Mercury >> 2008 >> Mountaineer AWD V8-4.6L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations

Control Module HVAC: Locations

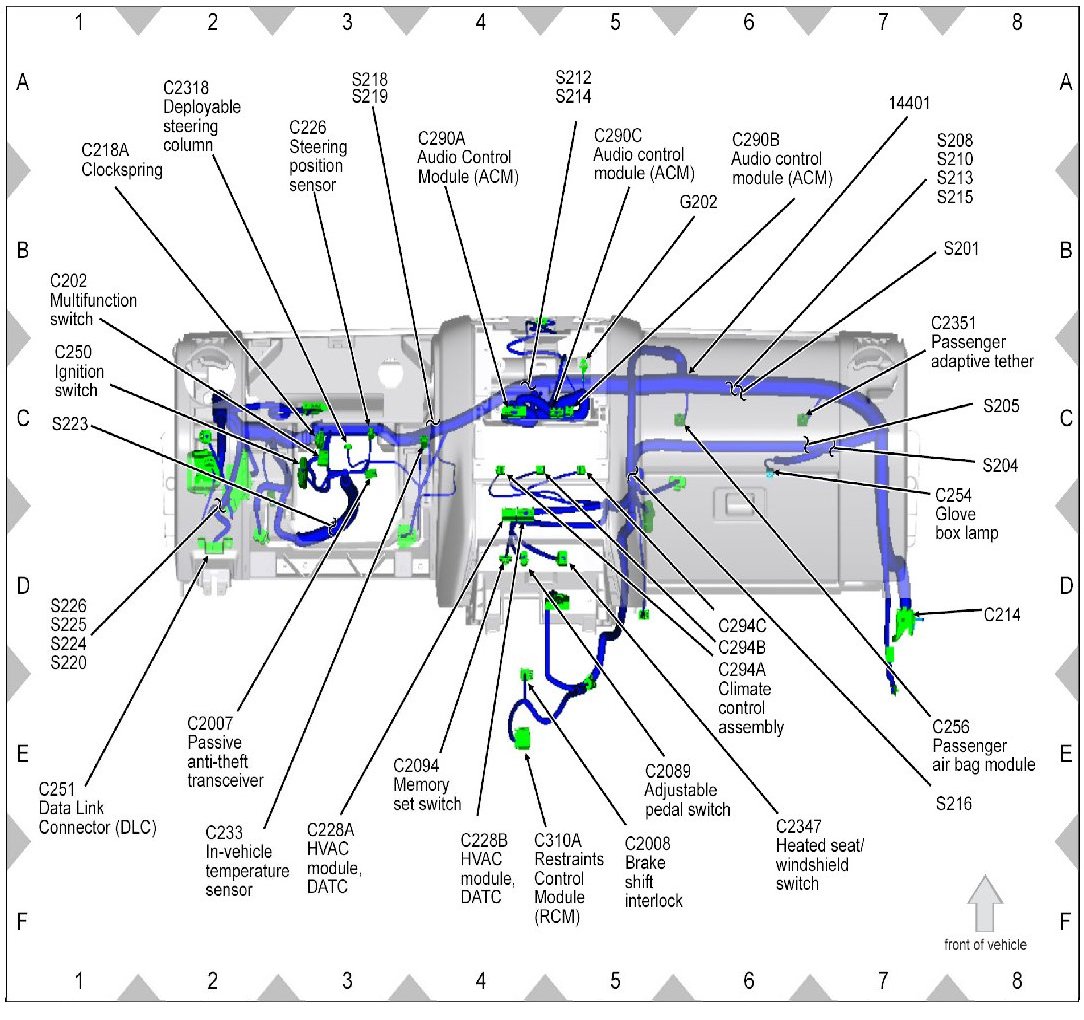

View 151-14:

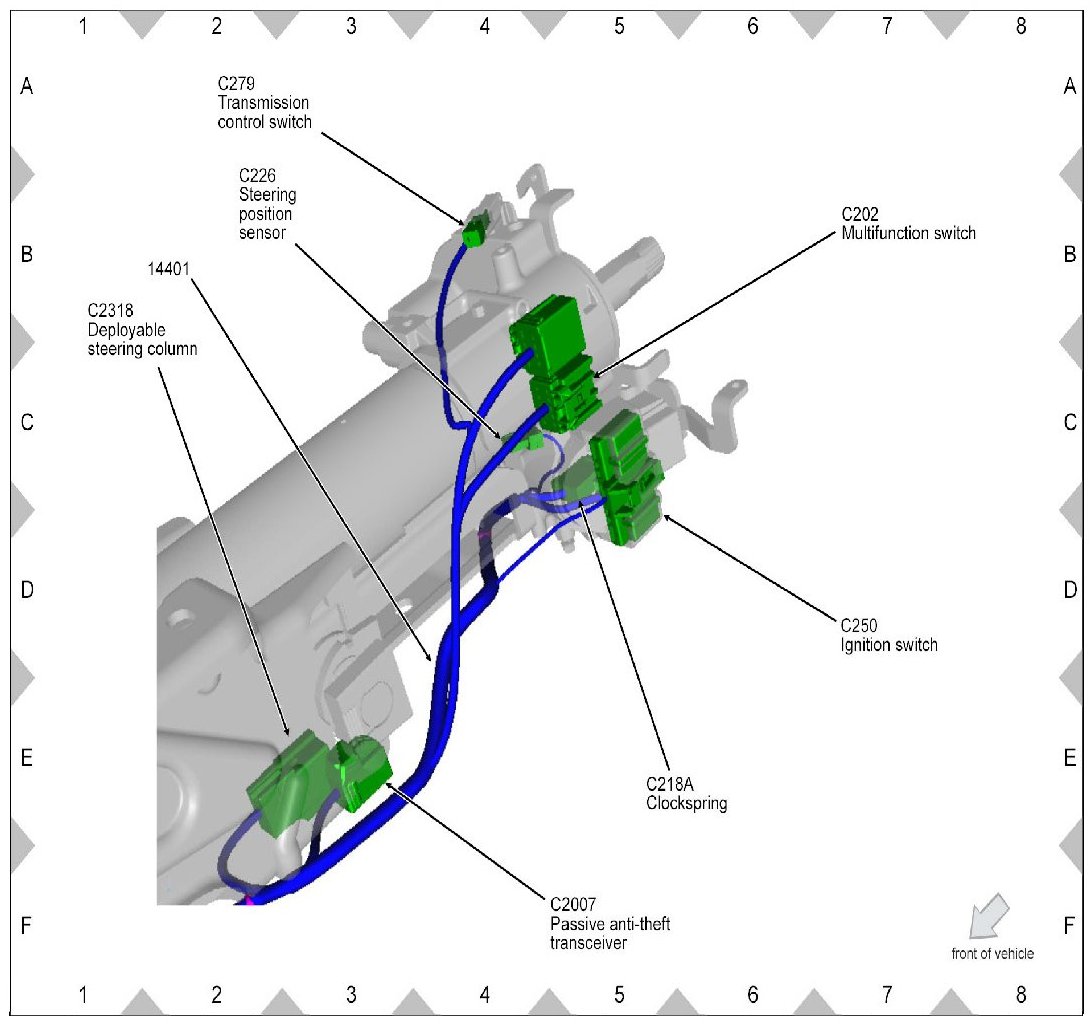

View 151-15:
