Mercury
>>
2008
>>
Mountaineer AWD V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Assist Control Module
Parking Assist Control Module

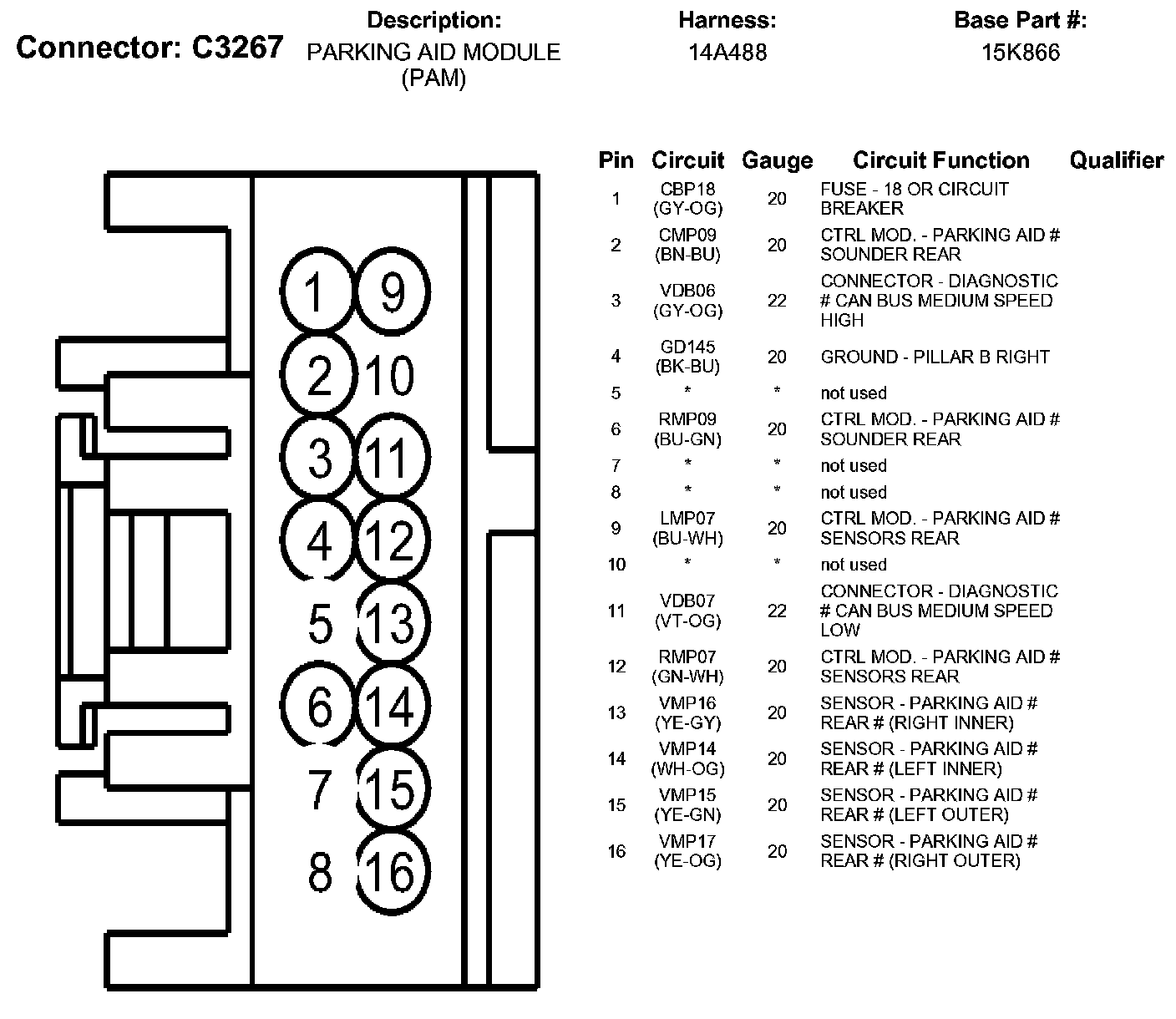

C3267:

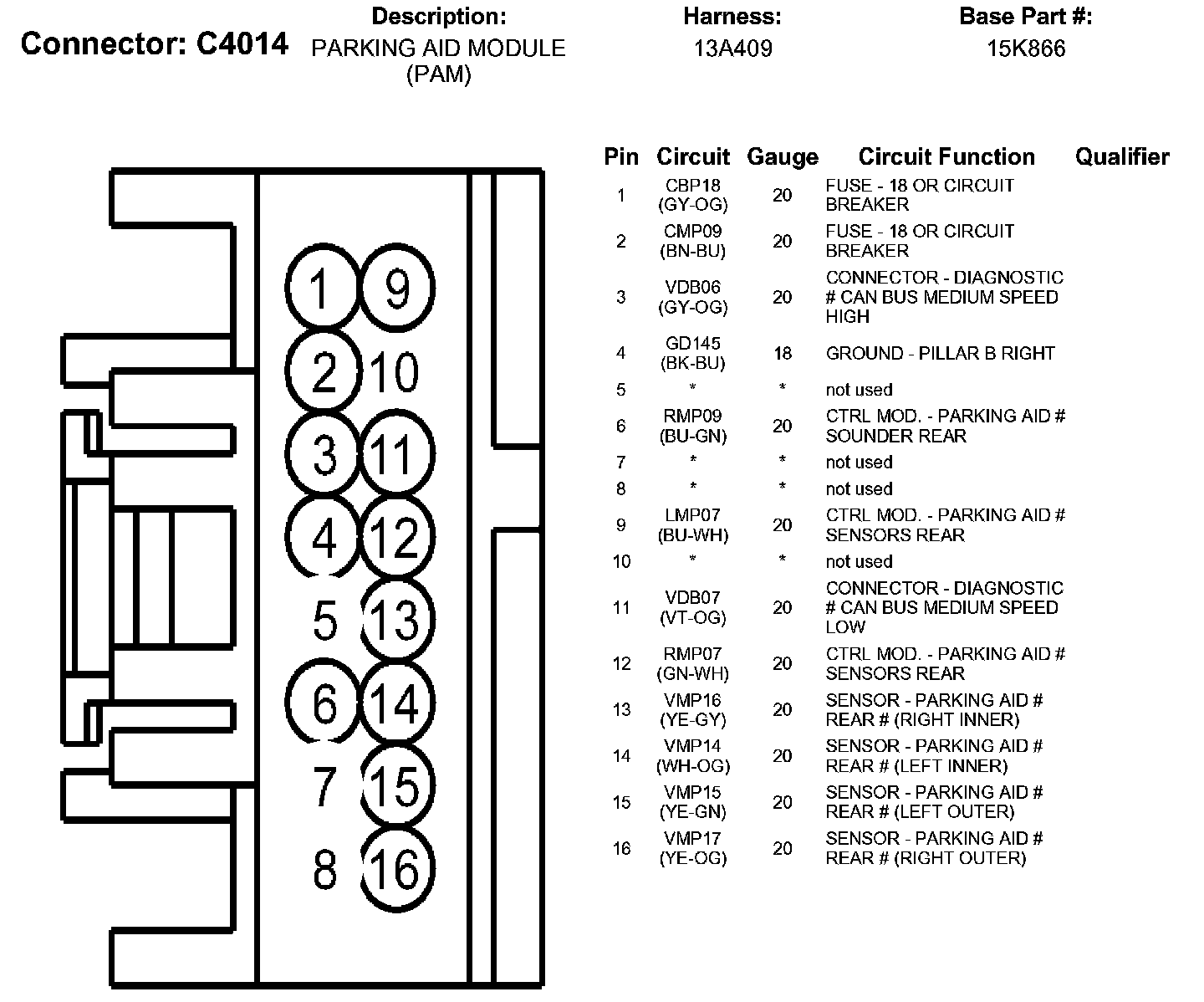

C4014:

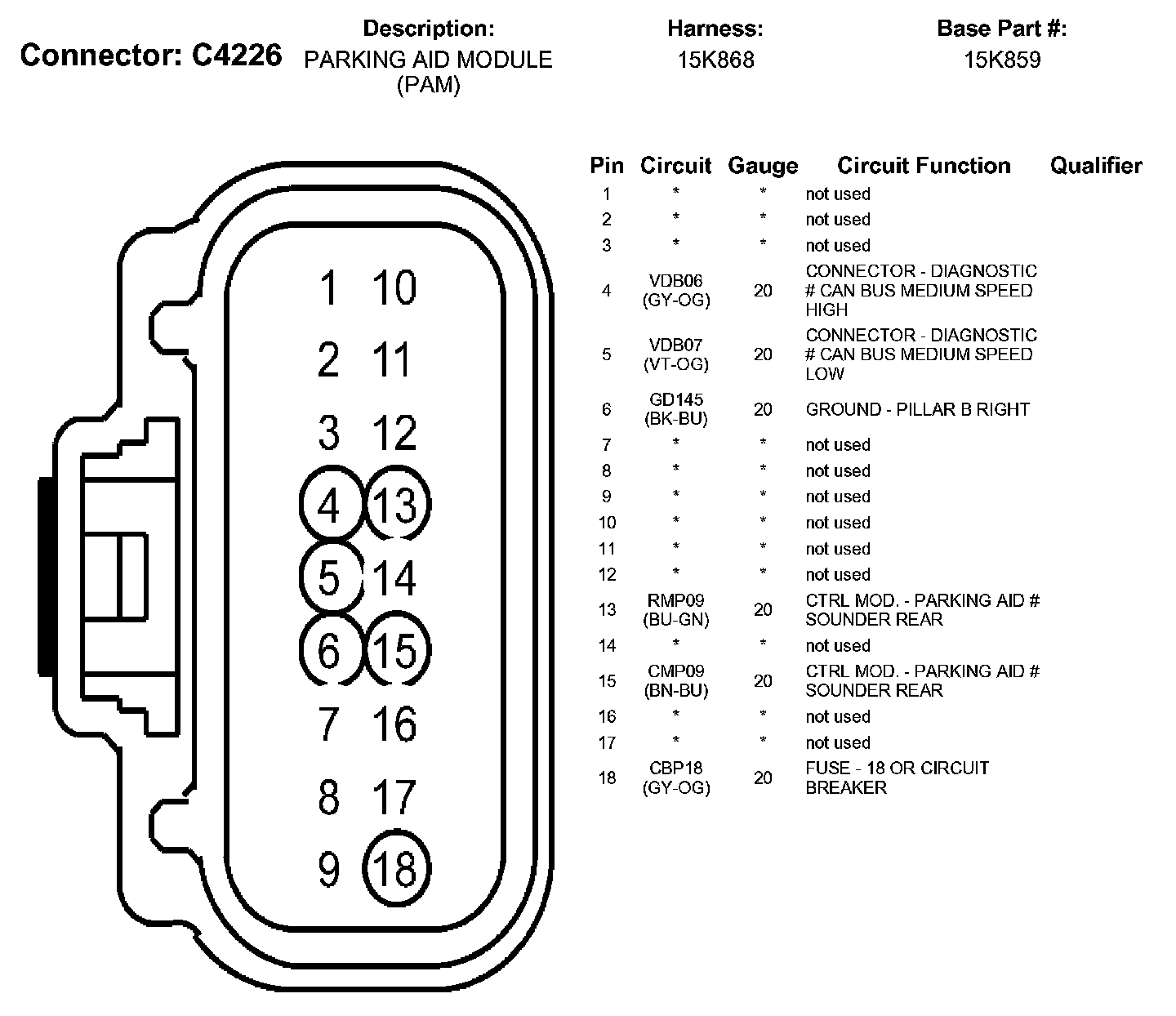

C4226:
