Home >> Mercury >> 2008 >> Mountaineer AWD V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Memory Positioning Module

Memory Positioning Module

C341A:

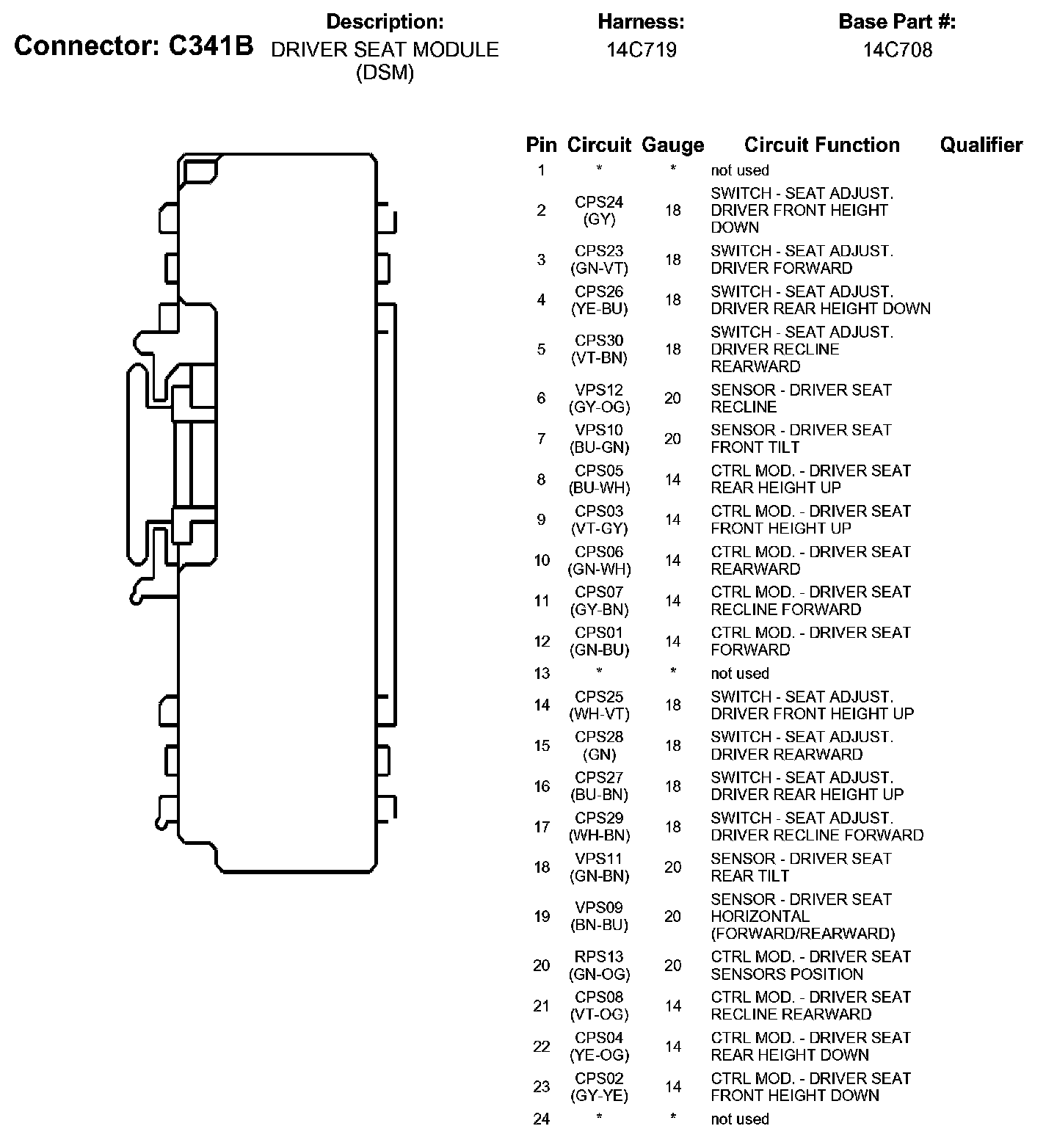

C341B:

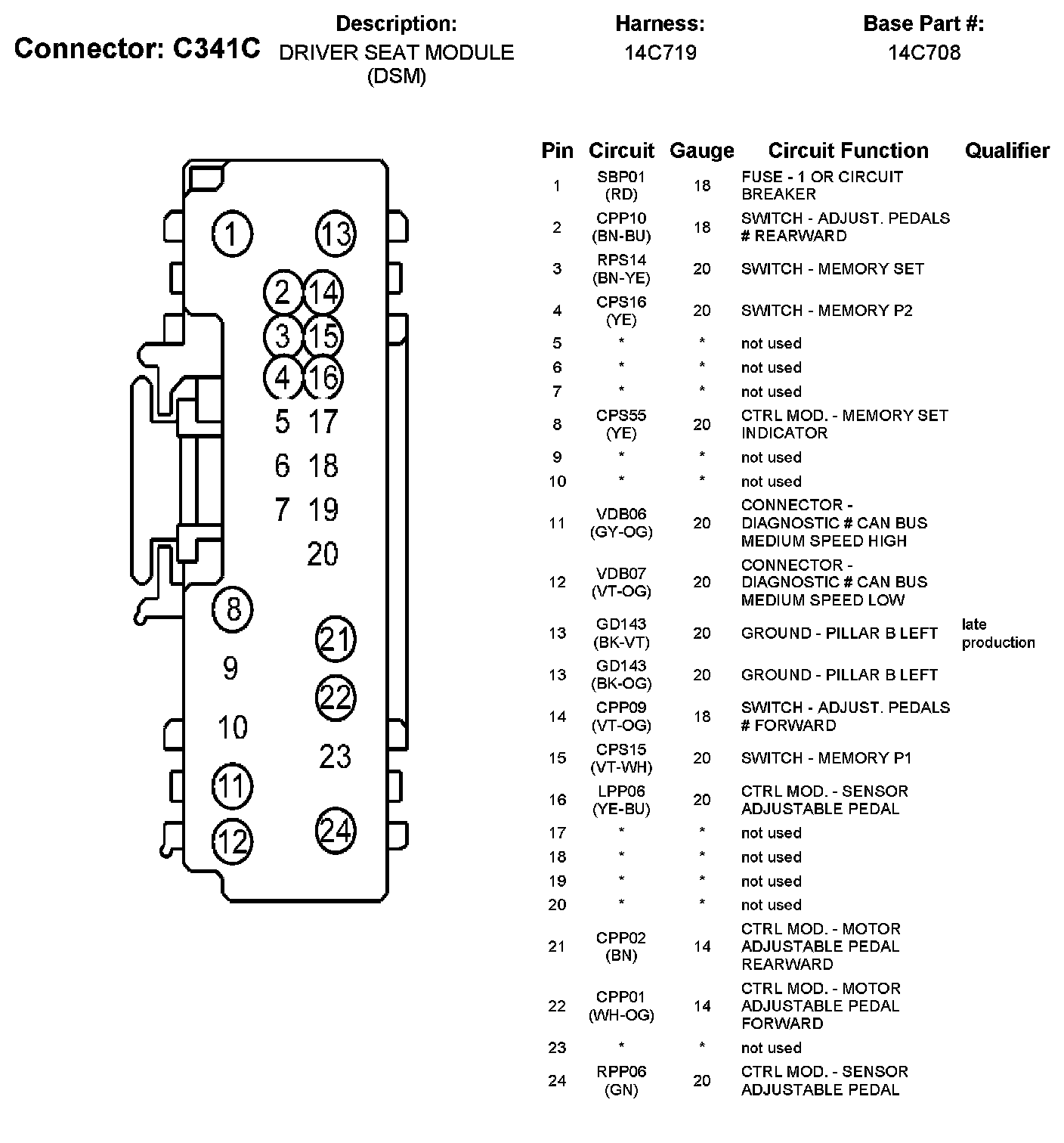

C341C:
