Home >> Mercury >> 2008 >> Mountaineer AWD V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Auxiliary Climate Control Assembly, Front

Auxiliary Climate Control Assembly, Front

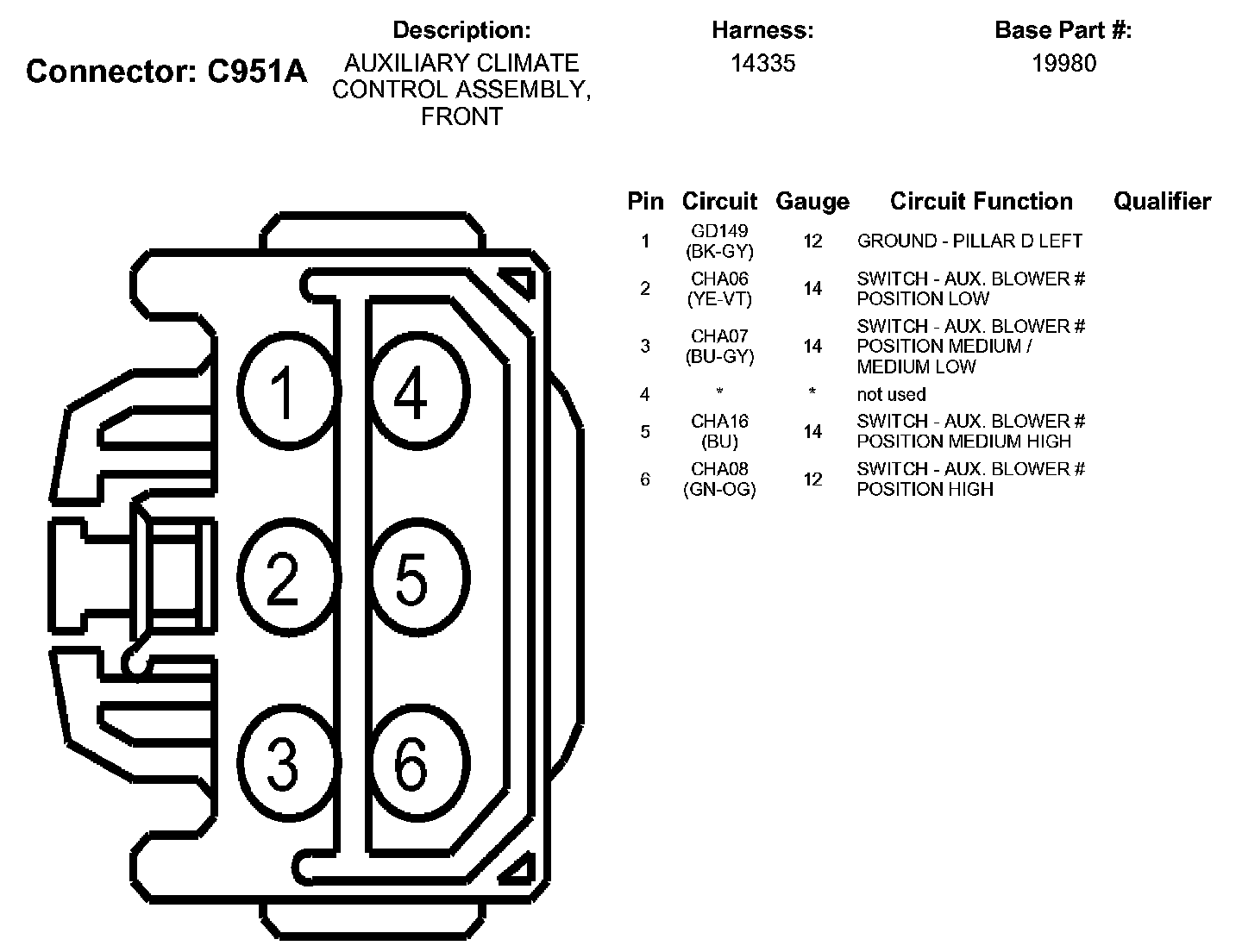

C951A:

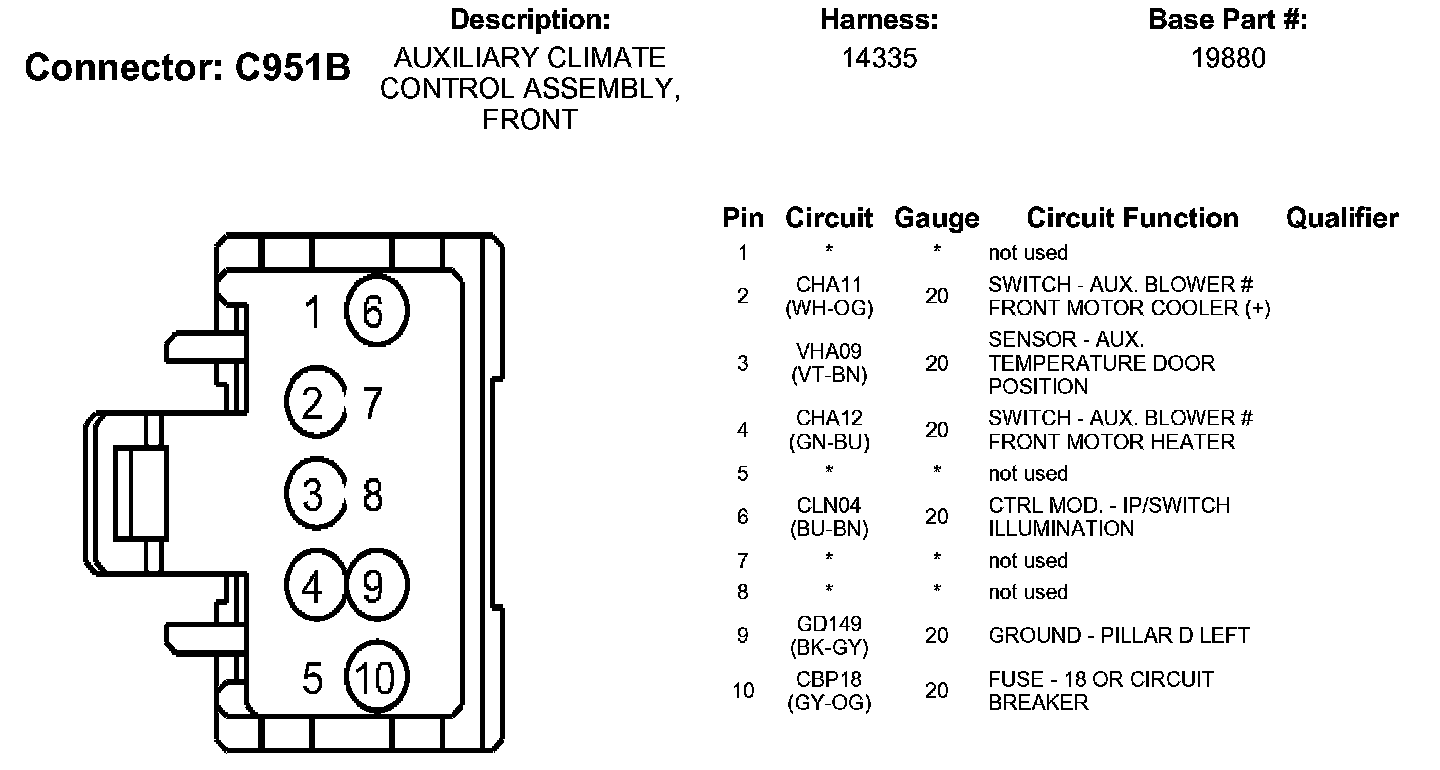

C951B:
