Home >> Mercury >> 2008 >> Mariner 2WD V6-3.0L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams

Emission Control Systems: Diagrams

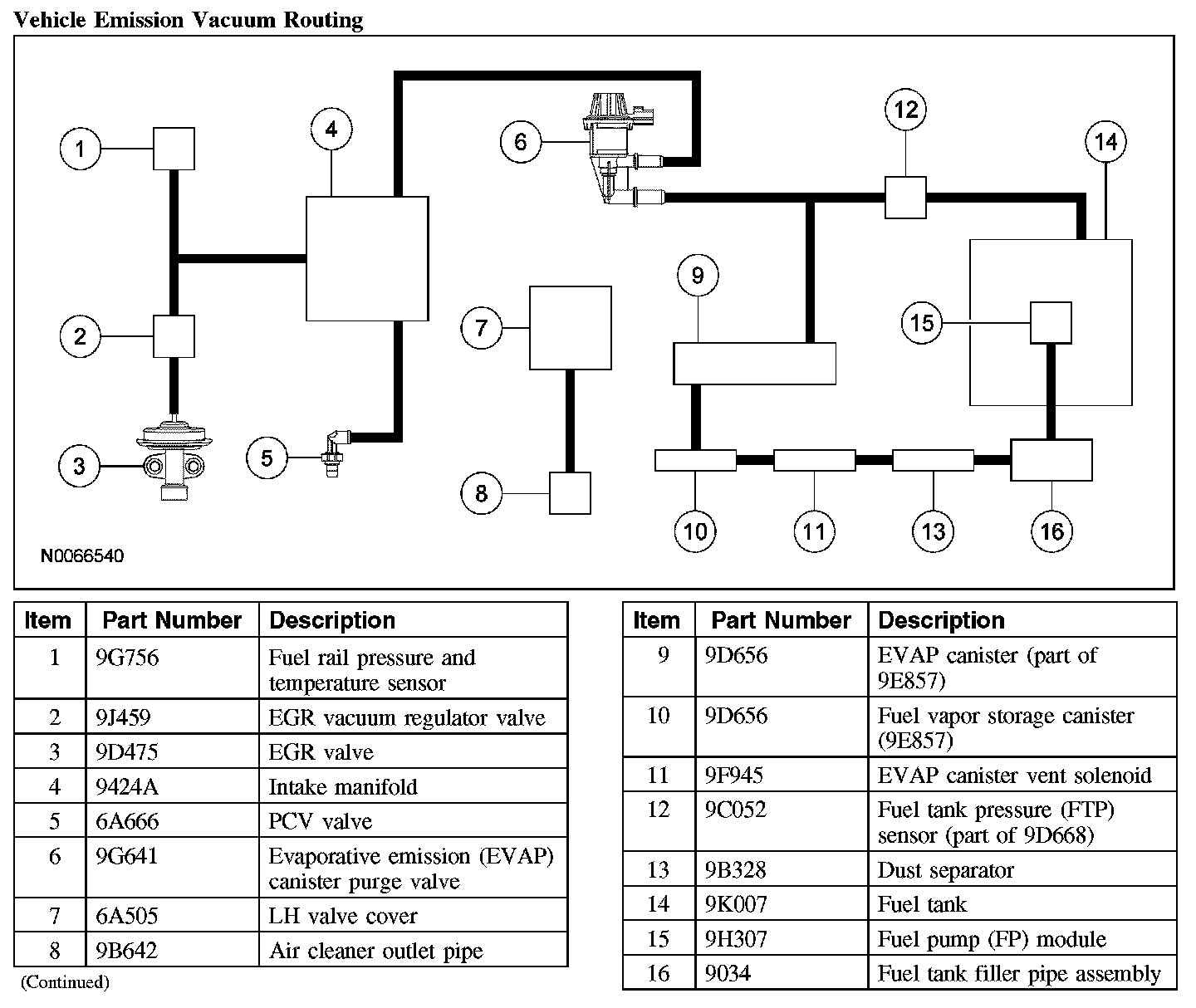

Vehicle Emission Vacuum Routing:
