Hood

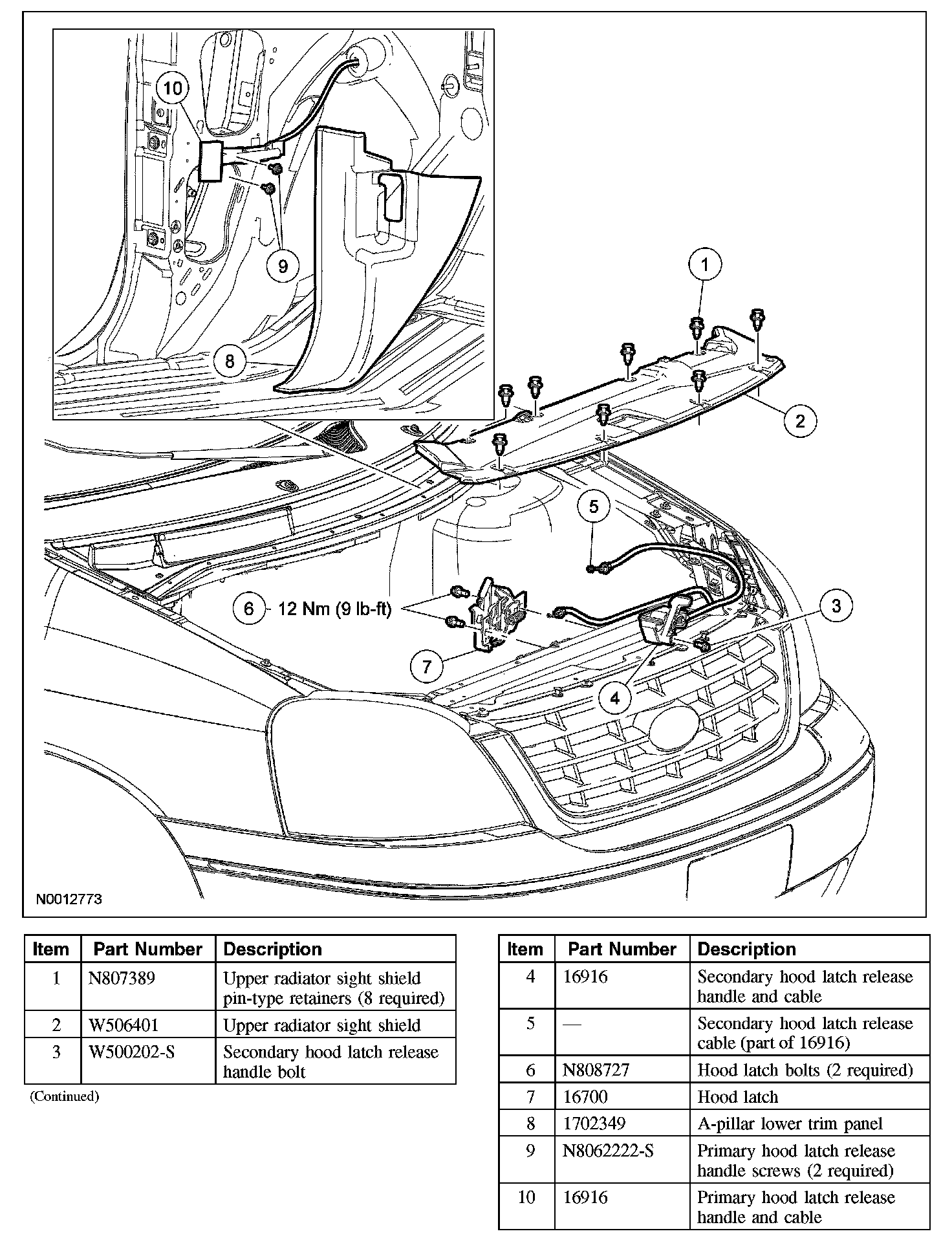

HOOD LATCH AND COMPONENTS - EXPLODED VIEW

Removal and Installation
1. For additional information, refer to the procedures.
