Home >> Mercury >> 2007 >> Monterey V6-4.2L VIN 2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

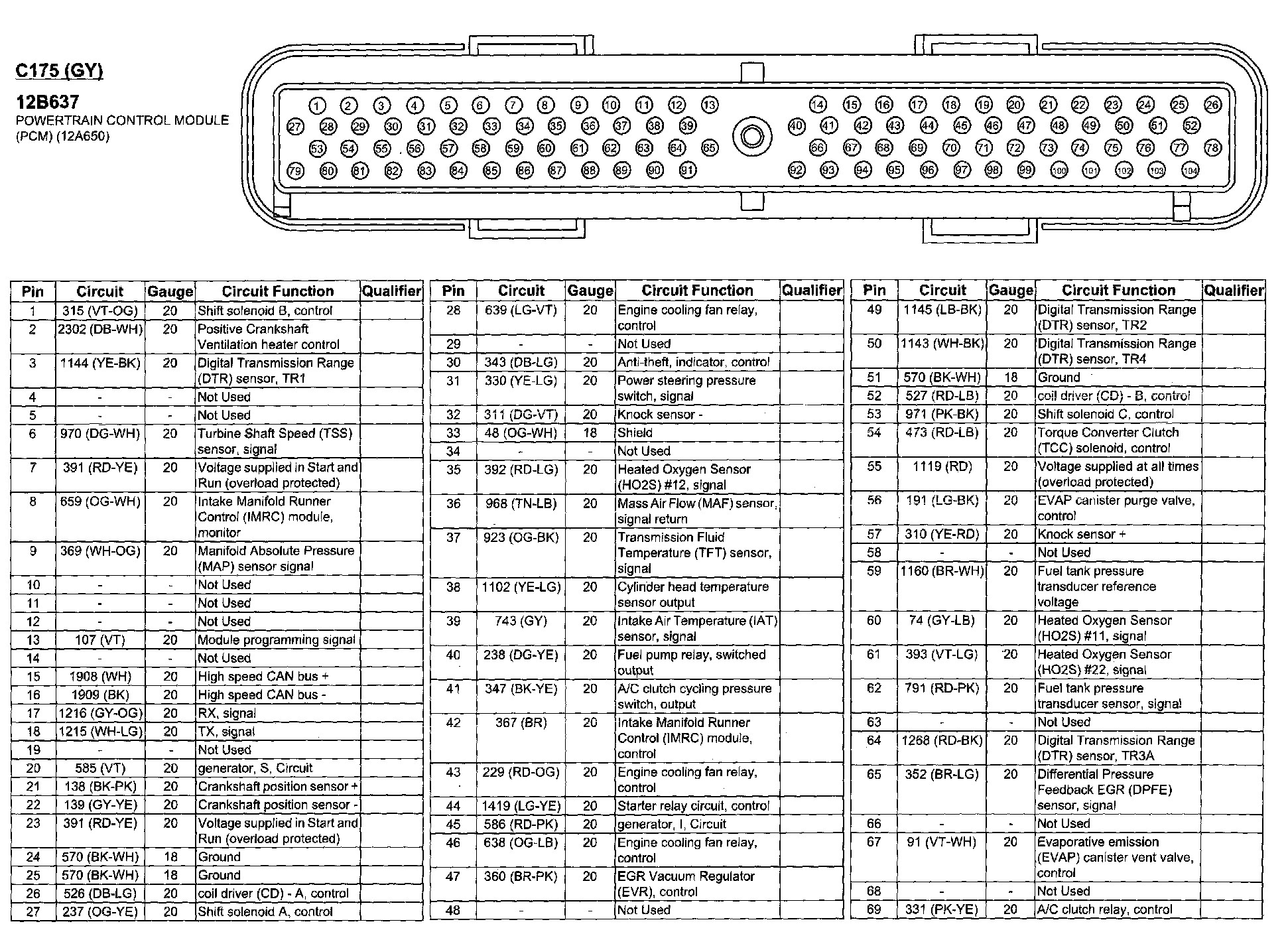

C175 (Part 1):

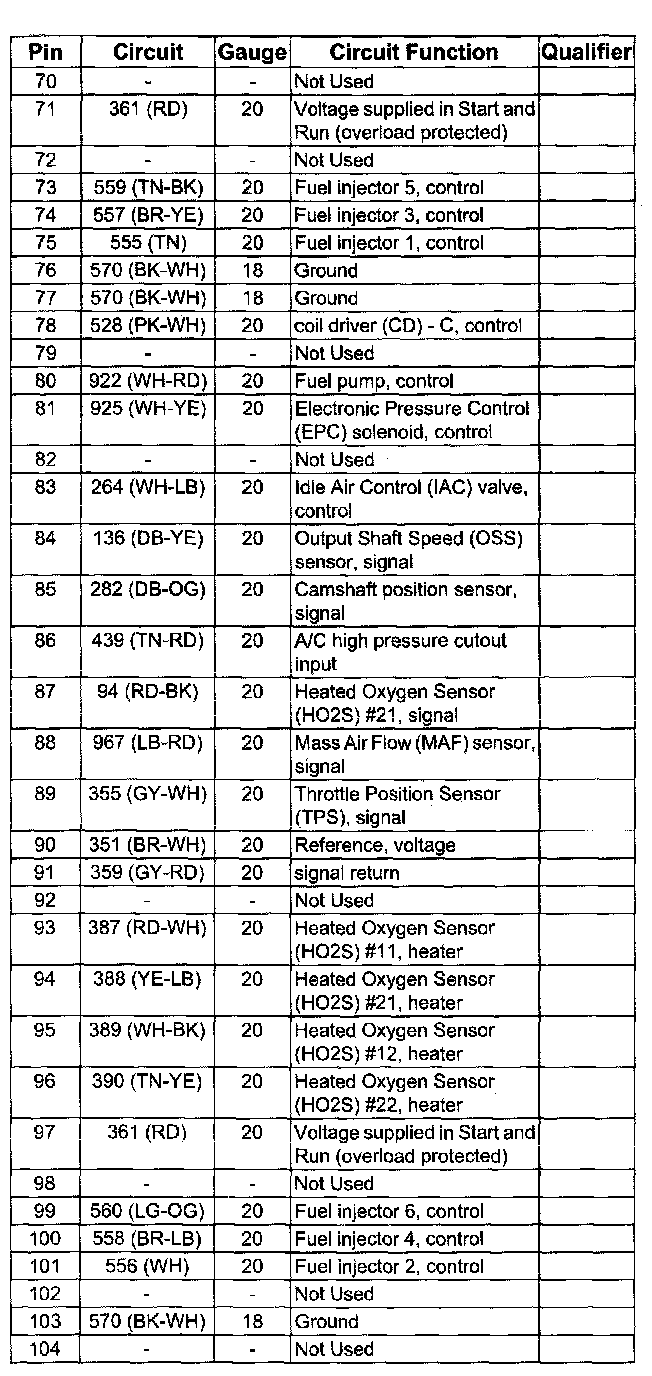

C175 (Part 2):
