Home >> Mercury >> 2007 >> Monterey V6-4.2L VIN 2 >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Control Module >> Locations >> Heated Seat Module >> Passenger Side Front

Passenger Side Front

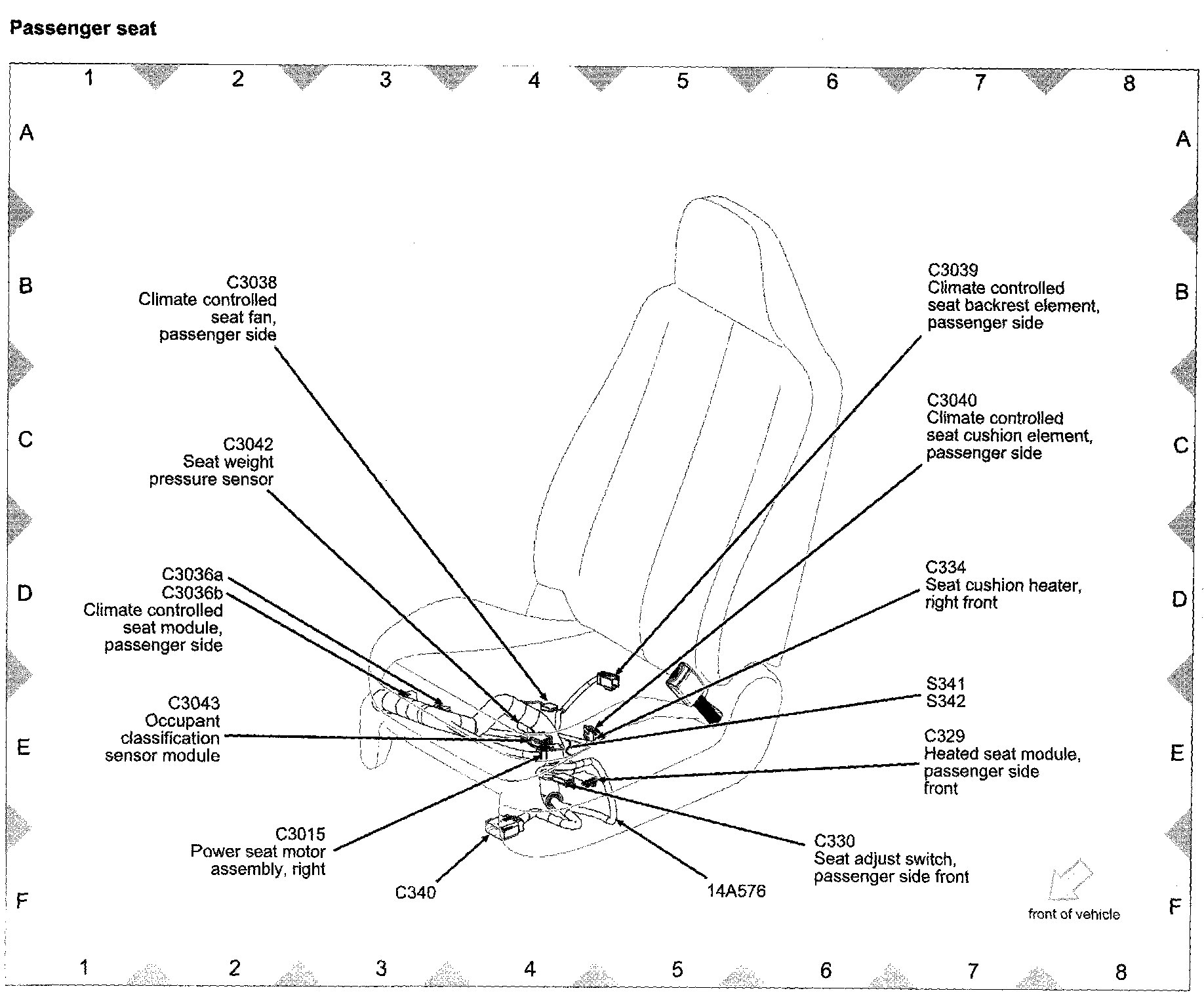

View 151-17 (Passenger Seat):
