LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mercury
>>
2007
>>
Montego Base, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector Views
>>
Data Link Connector
Data Link Connector

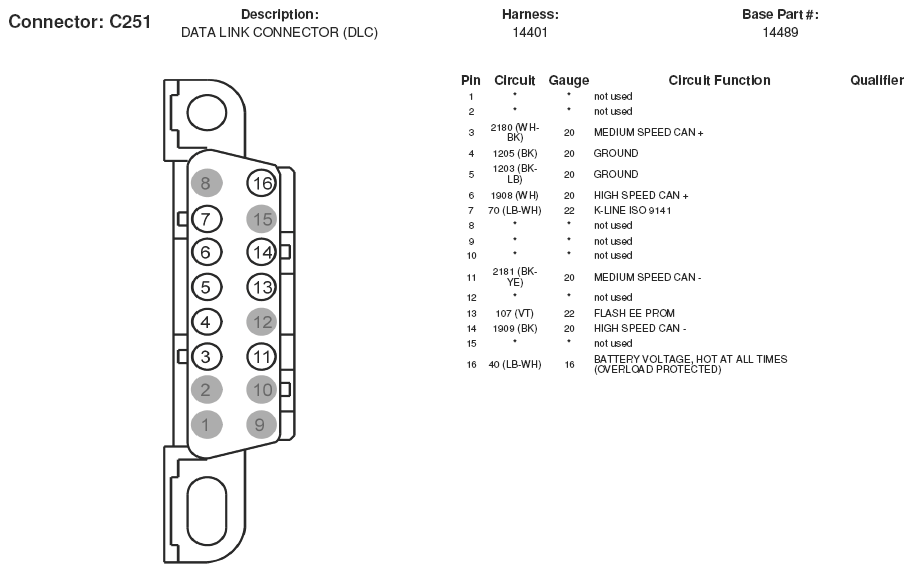

Fig 1: Data Link Connector Connector End View (C251)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
