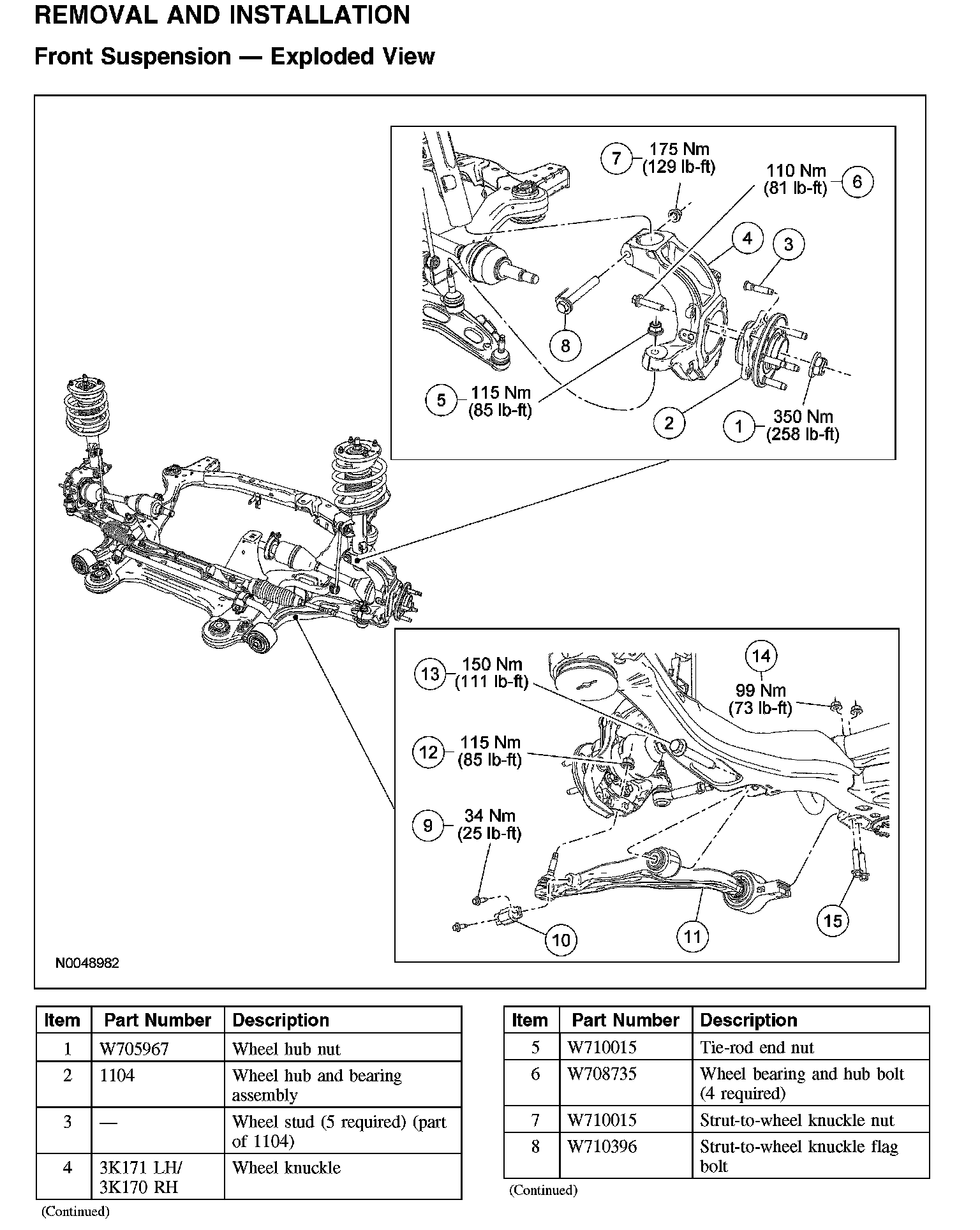

Front Suspension - Exploded View

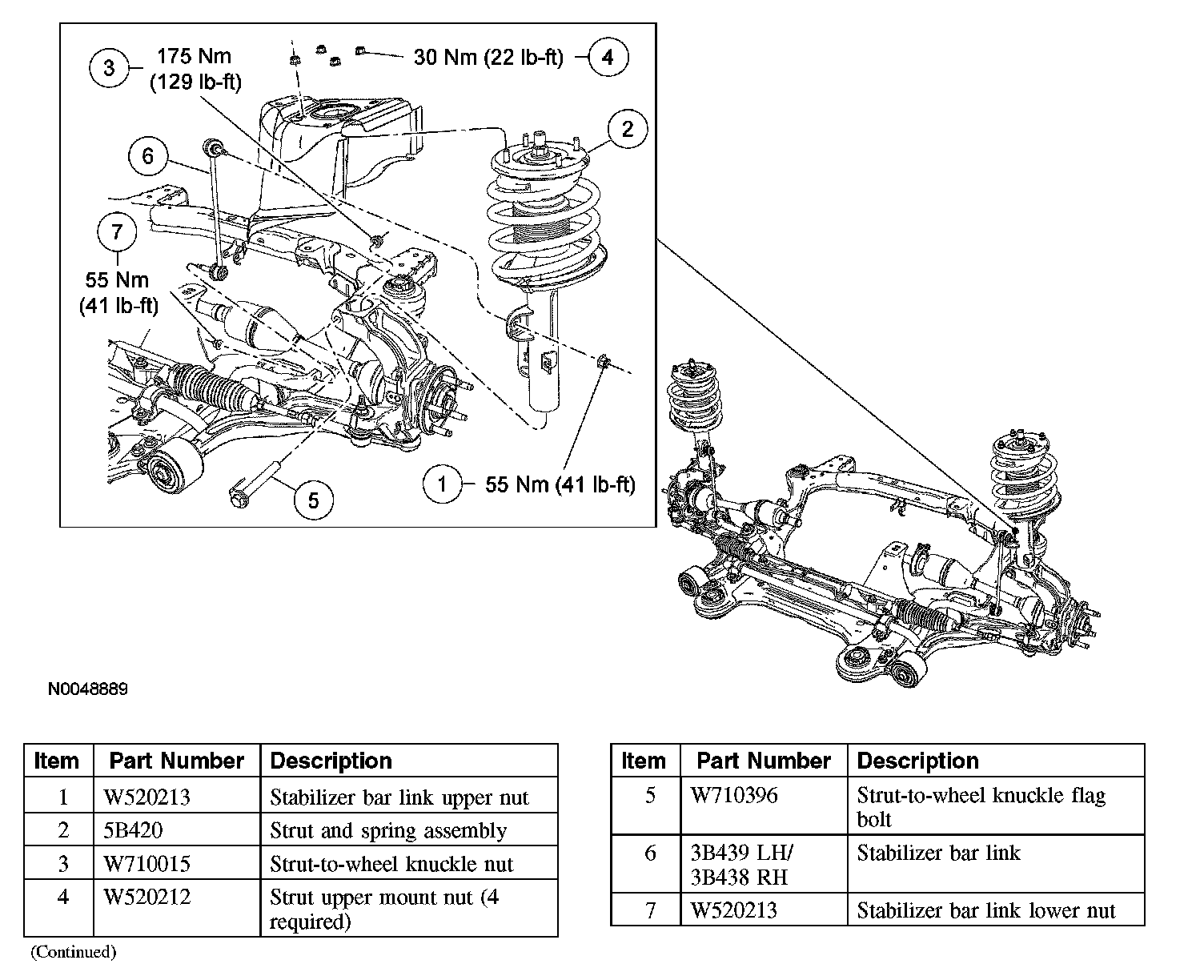

Front Suspension - Exploded View:



Front Suspension - Exploded View:



Front Suspension - Exploded View:



Front Suspension - Exploded View:
