Home >> Mercury >> 2007 >> Mariner 4WD L4-2.3L VIN Z >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Control Module >> Locations

Control Module: Locations

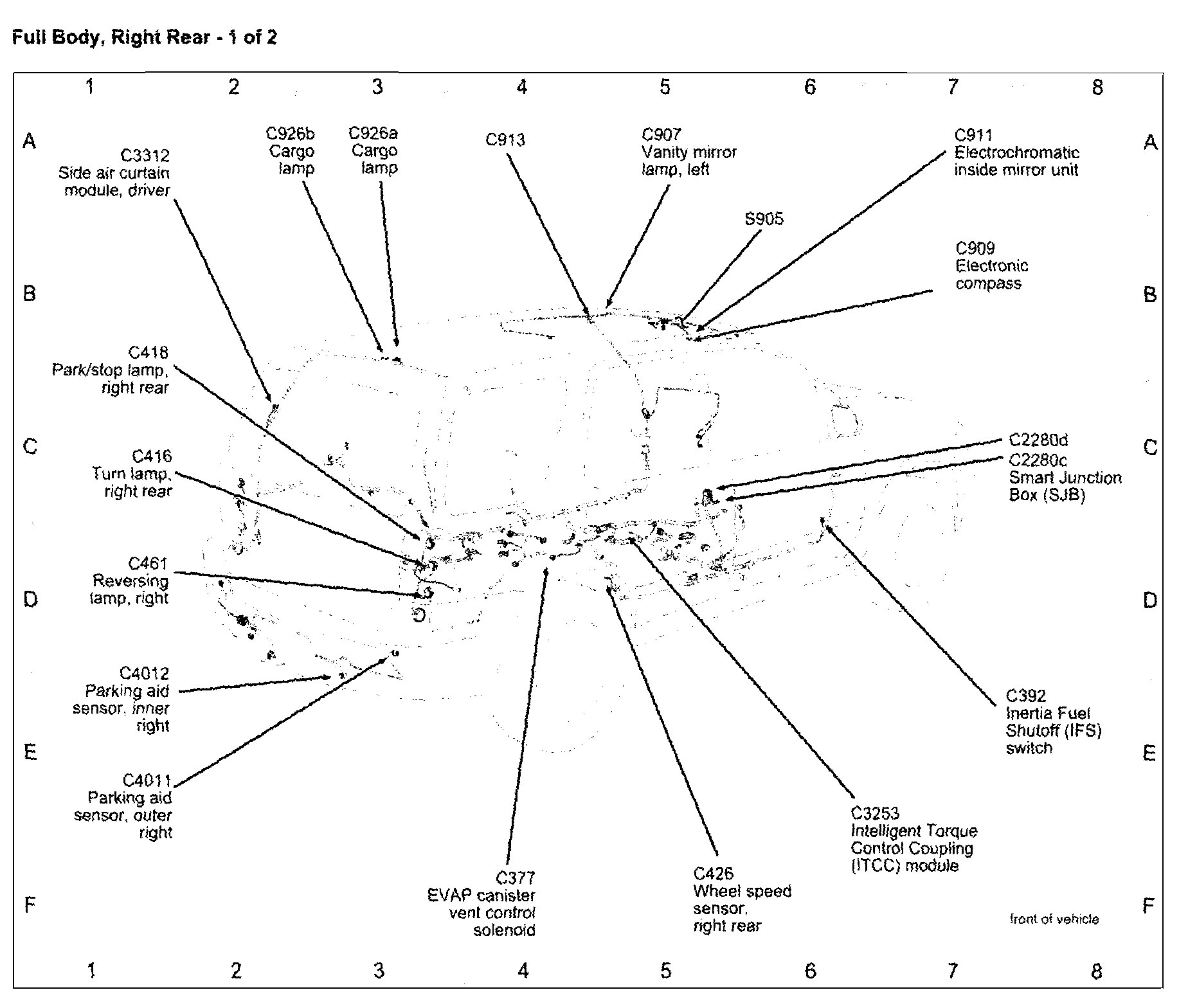

View 151-17 (Full Body, Right Rear - (1 Of 2)):
